Specification
Brand : Agatige
BulletPoint1 : AD606 CHIP: The detector uses AD606 chip, and the design of power supply voltage regulation circuit makes the detection accuracy tend to official data. With offset control circuit to eliminate input offset voltage. Adjustable output amplitude
BulletPoint2 : WORKING PRINCIPLE: Radio frequency is converted to DC voltage output. The corresponding to the amplitude or power of output voltage is the best choice to improve the accuracy of IF measurement chip
BulletPoint3 : ADJUSTABLE OUTPUT AMPLITUDE: The amplifier module supports limiter output. Adjustable output amplitude and low power consumption, CMOS compatible power consumption reduced to 325 mW (typical value)
BulletPoint4 : WIDE RANGE: Detector Module is working frequency range available for> 50 MHz, can detect ‑75 dBm to +5 dBm radio frequency, DC voltage output detection (unit: dBm, logarithmic detection), professional and practical
BulletPoint5 : EASY TO INSTALL AND REMOVE: ‑75 dBm to +5 dBm Dynamic range, 37.5 mV/dB voltage output. Logarithmic testing detector with small size, easy to install and remove, AD606 80dB demodulation logarithmic amplifier
Color : #911
IncludedComponents : No

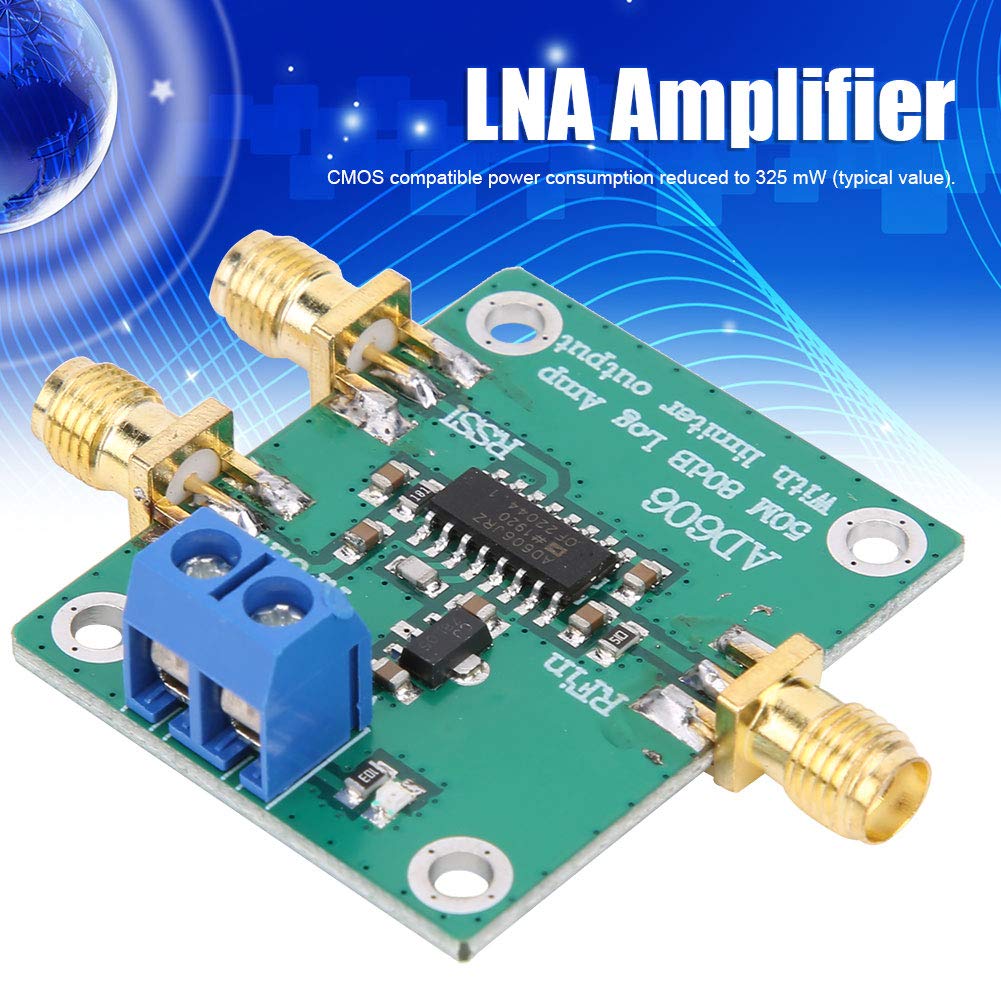

ItemName : AD606 Module Logarithmic Detector, 80dB Demodulation Log Amplifier Board Logarithmic Adjustable Limiting Output Logarithmic Testing Detector for Power Meter Amplifier
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 6 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : logarithmic-amplifiers
Manufacturer : Agatige
MeasurementAccuracy : 0.1 mm
ModelName : Agatigefbc5nxm36o
ModelNumber : Agatigefbc5nxm36o
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Agatigefbc5nxm36o
ProductDescription :
Item Type: AD606 Module
Material: Plastic
AD606 80dB demodulation logarithmic amplifier, frequency exceeds 50MHz
1. Auxiliary limiter output
2. Output flatness: ±1 dB (within 80dB)
3. Phase stability: ±3 degree (10.7 MHz, 80dB)
4. Adjustable output amplitude
5. Low power consumption
With offset control circuit to eliminate input offset voltage
Power supply voltage range: 5V
Chip features:
Log amplifier performance
-75 dBm to +5 dBm dynamic range
1.5nV/Hz input noise
Available for> 50 MHz
37.5 mV/dB voltage output
On-chip low-pass output filter
Limiter performance
61 dB output flatness in the 80 dB range
638 phase stability at 10.7 MHz in the 80 dB range
Adjustable output amplitude
Low power
+5 V single power supply
Typical power consumption 65 mW
CMOS compatible power consumption reduced to 325 mW (typical value)

Package List：
1 x AD606 Module
