Specification
Brand : DYRABREST
BulletPoint1 : 【High Accuracy】This mt5 live center utilizes deep groove ball bearings, thrust ball bearings, and needle roller bearings to achieve a more stable and smooth rotation, enhancing precision to an impressive 0.0006".
BulletPoint2 : 【Sealing Excellence】Equipped with an advanced sealing system within the gland, it effectively keeps out cutting fluids and dust, safeguarding the central bearing and prolonging its lifespan.
BulletPoint3 : 【Easy Lubrication】The strategically placed oiling hole allows for easy and regular lubrication, reducing the bearing's load and providing extended protection against wear.
BulletPoint4 : 【Low Vibration】Thanks to its precision bearings and vibration-dampening design, this lathe live center offers superior stability and a safer operating experience.
BulletPoint5 : 【Optimized Performance】Capable of withstanding a maximum radial load of 6300N and operating at speeds up to 2400rpm, this heavy duty live center is engineered for high efficiency, significantly boosting your machining capabilities.
Color : Black, Silver
IncludedComponents : 1* MT5 Live Center

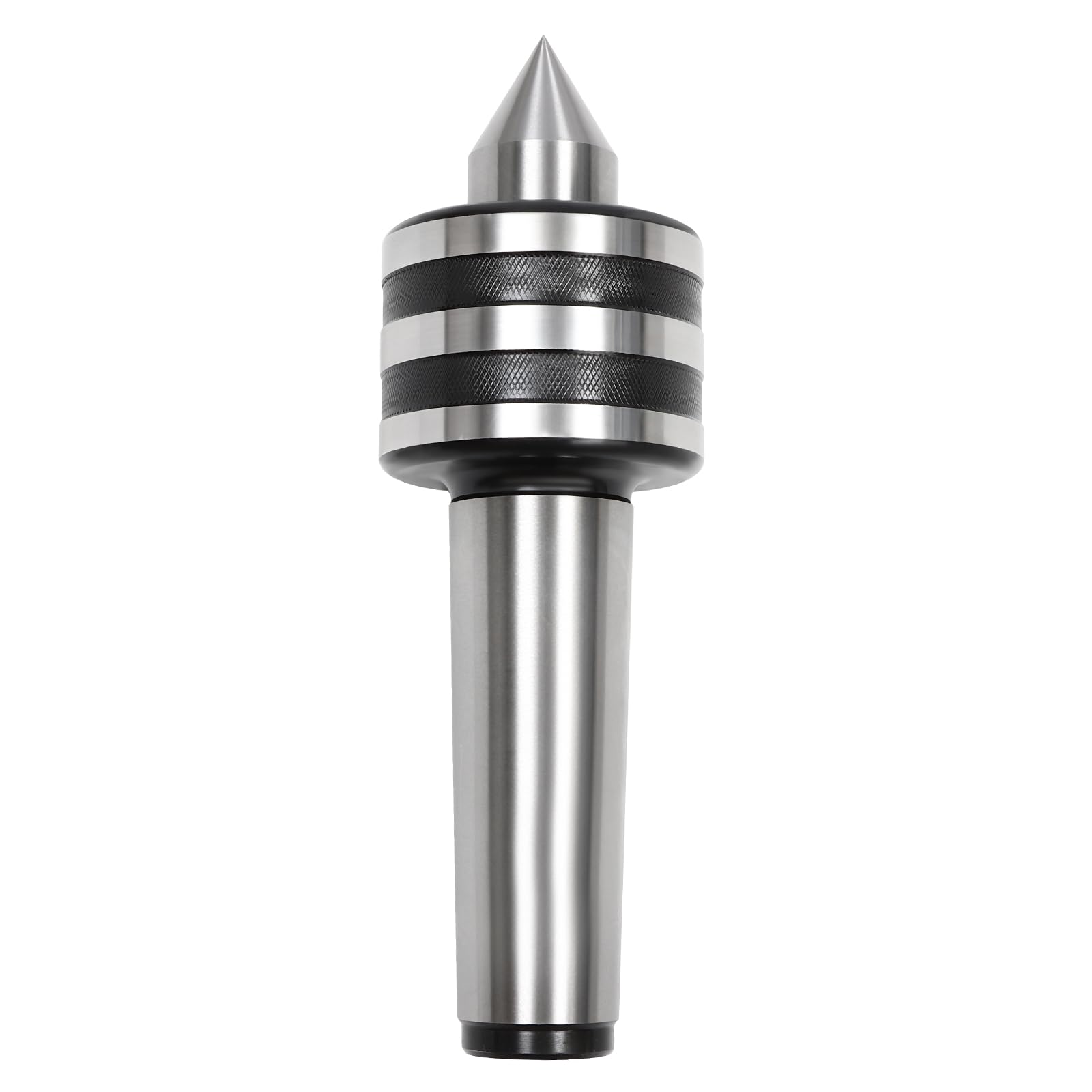

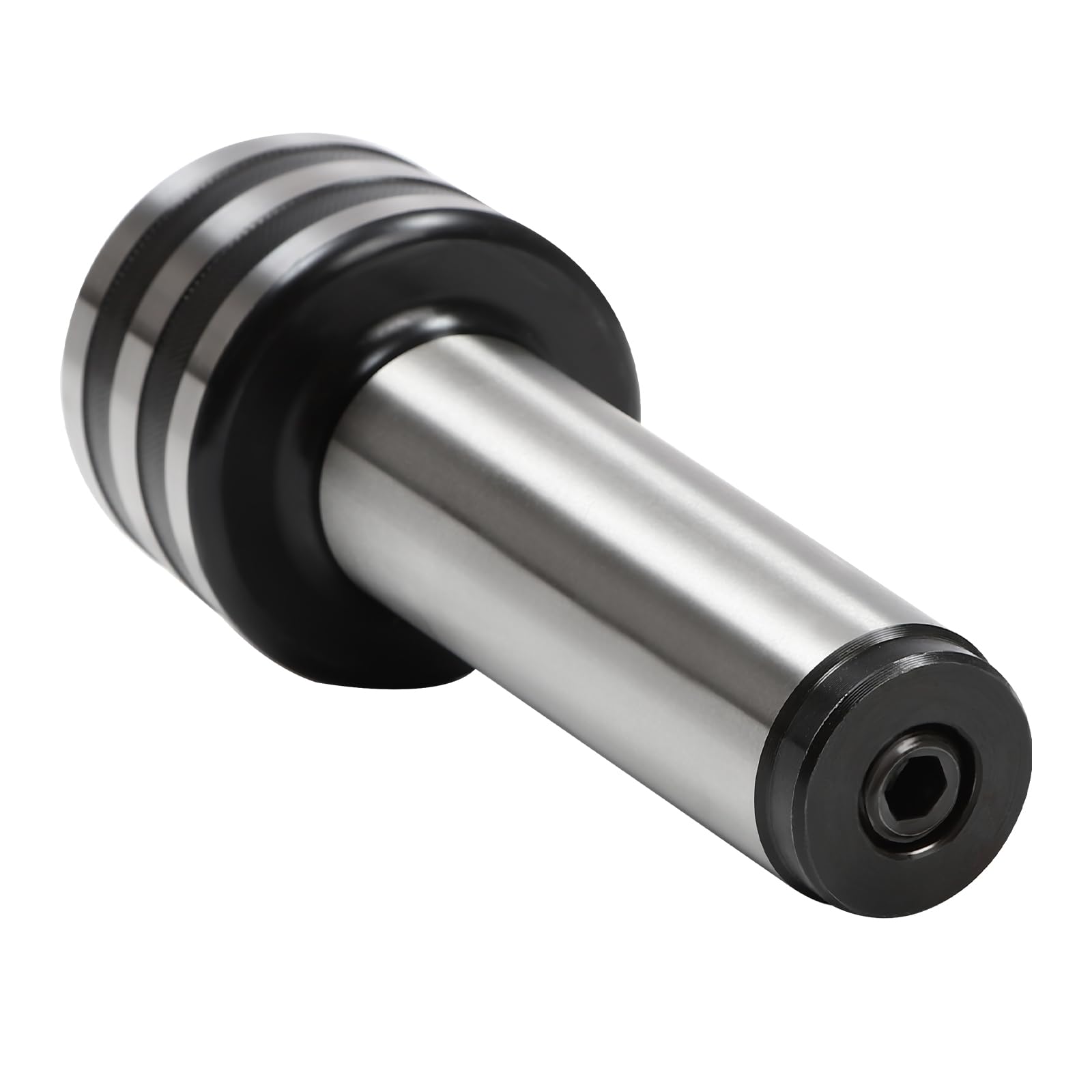

ItemName : MT5 Live Center 60 Degree Morse Taper Precision Lathe Medium Duty Live Tailstock Center for Igh-Speed Lathes & CNC Lathes, Maximum 6300N Radial Load & 2400rpm
ItemPackageDimensions_Height : 3.74 inches
ItemPackageDimensions_Length : 10.24 inches
ItemPackageDimensions_Width : 4.13 inches
ItemTypeKeyword : live-centers
Manufacturer : Shibelstore_US
Material : Bearing Steel
ModelName : D434A
ModelNumber : A066
NumberOfItems : 1
PartNumber : GY4ARV8LW
ProductDescription :

Details

Card Slot: The precise slot position ensures a stable connection between the product and the machine, making it difficult to loosen.



Precision Thread: The surface threads can enhance the viewing quality of the product and provide you with a better visual experience.



Application

It is specially designed for medium-speed precision machining lathes with medium loads and is suitable for high-speed lathes, CNC lathes, and general manual lathes.



Specifications

Material: Bearing Steel

Style: Modern

Process: Quenching

Hardness: 60HRC

Model: MT5

Color: Black, Silver

Max Ridal Load: 6300N

Rotational Speed: 2400rpm

Accuracy: 0.015mm/0.0006in

Cone Handle Diameter: 44.4mm/1.75in

Tip Diameter: 45mm/1.77in

Tip Length: 45mm/1.77in

Overall Product Size(L*φ): 254*77mm/10*3.03in

Package Size: 26*10.5*9.5cm/10.24*4.13*3.74in

Gross Weight: 3.36kg/7.41 1bs

Net Weight: 3.3kg/7.27 1bs



Package Included

1* MT5 Live Center

ProductSiteLaunchDate : 2024-11-19T07:36:40.682Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111500
