Specification
Brand : Respicefinem
BulletPoint1 : PRECISE DUAL STAGE CONTROL: GRL8-01 liquid level controller adopts two-stage control mode, which can manage the water level in tanks, pools or industrial systems accurately and efficiently.
BulletPoint2 : VERSATILE POWER SUPPLY AND HIGH CAPACITY: The level control relay is compatible with AC/DC 24-240V wide voltage range, suitable for a variety of applications, and can handle loads up to 10A to ensure the reliability of different systems.
BulletPoint3 : SENSITIVITY AND CUSTOMIZABLE SETTINGS: The level control relay has a sensitivity adjustment range of 5-100kΩ to adapt to different liquid types and vessel sizes, while the maximum response time of 400ms ensures fast startup.
BulletPoint4 : RUGGEDIZED DESIGN: The level control relays are designed for long life, with a mechanical life of 1x10^7 operations under resistive loads, an electrical life of 1x10^6 cycles, and a reset time of up to 200 milliseconds.
BulletPoint5 : EASY TO INSTALL AND MONITOR: The level control relays support simple DIN rail mounting, can be wired with 1x2.5mm² or 2x1.5mm² cables, and include visual indicators (green power LED, red output LED) for at-a-glance status.
IncludedComponents : No

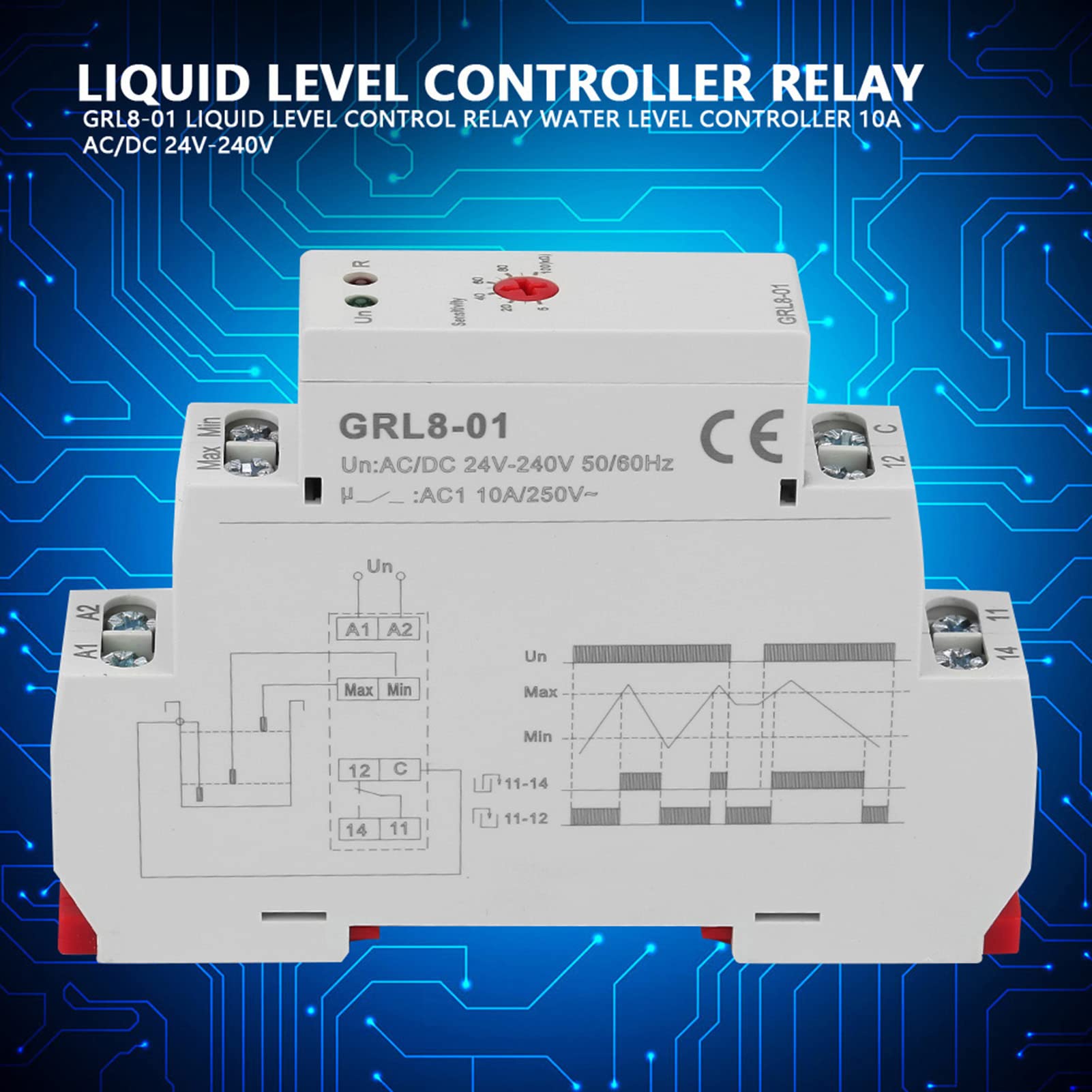

ItemName : Respicefinem GRL8-01 Liquid Level Sensor Relay Advanced 2 Level Control for Accurate Water Management 10A AC DC 24-240V Easy DIN Rail Mounting
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : Respicefinem
Material : Copper
ModelName : Respicefinemq4ka8zgi3h
ModelNumber : Respicefinemq4ka8zgi3h
NumberOfItems : 1
PartNumber : Respicefinemq4ka8zgi3h
ProductDescription : Spec:
Features:
1. Designed for monitoring liquid level in pool, well, water tower, reservoirs, tanks, etc.
2. Adjustable sensitivity by a knob (5-100kΩ).
4. Stable performance, long service life.
5. Relay status is indicated by LED.
6. With small volume, 35mm DIN rail mount.
Specification:
Model: GRL8-01
Function: 2 level control mode
Rated power supply voltage: AC/DC 24-240V(50-60Hz)
Power consumption: Max. 2VA
Sensitivity adjustment range: 5-100kΩ
Supply voltage tolerance: -15%; +10%
Voltage in electrodes: Max. AC 5V
Current in electrodes: Max. 0.1mA
Response time: Max. 400ms
Electrode cable allows distributed capacitance (maximum): 400nF-100nF
Electrode cable length: 100m
Setting accuracy: 10%
Output contact parameters: 1 x SPDT, 10A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Power indicator: Green LED
Output indication: Red LED
Mechanical life: 1x107
Electrical life(resistive load): 1x106
Reset time: Max 200ms
Working temperature: -20℃~55℃
Mounting method: 35mm DIN rail
Mounting altitude: 2000m
Wiring capability: 1x2.5mm2 or 2x1.5mm2
Dimensions: 90*18*64mm / 3.54*0.71*2.52in
Weight: Approx. 70g/2.5oz

Package List:
1 * Liquid Level Control Relay

Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.





ProductSiteLaunchDate : 2024-06-28T03:48:23.743Z
