Specification
Brand : Kadimendium
BulletPoint1 : Wide Control Range: The stroke range is 10mm, and the liquid level float switch can be controlled within 10mm, with a wide range of applications.
BulletPoint2 : Multi Purpose: This level switch can be widely used for drinking fountains, water heaters, solar energy, air conditioners, humidifiers, coffee makers, small refrigerators, etc.
BulletPoint3 : High Pressure and Temperature Resistant: The liquid water level switch can withstand a maximum of 5Mpa and a maximum temperature resistance of 120 ℃, enabling it to work in most environments.
BulletPoint4 : Stainless Steel Made: The float ball is made of all stainless steel 304, and the clamp spring is made of 316L, which is and resistance, safe and stable in corrosive environments.
BulletPoint5 : Wide Voltage Range: The liquid level switch can work at 0 to AC, 0 to 200V DC, and the working current is 0.5 to 1A, which is applicable to most power supplies.
IncludedComponents : No

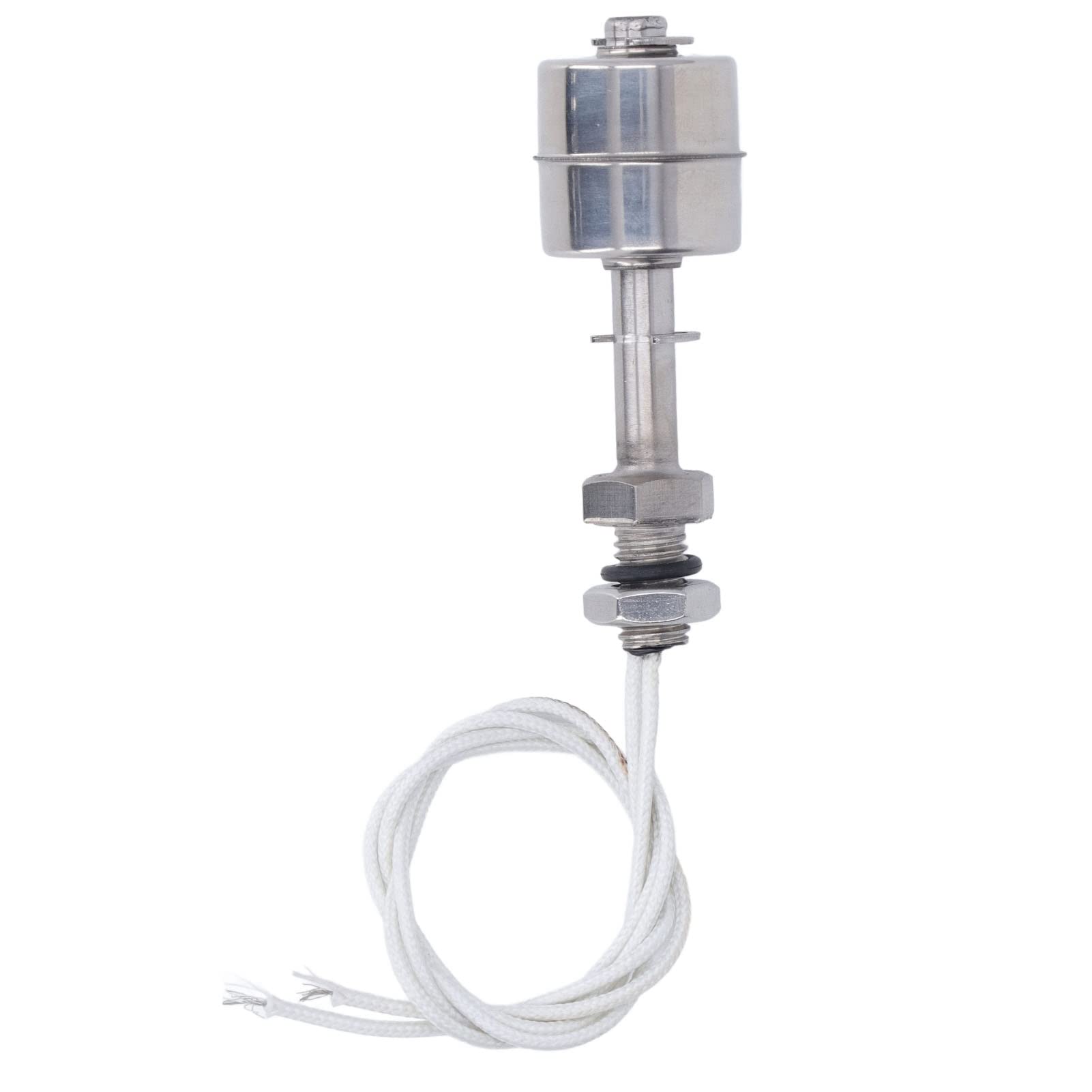

ItemName : Liquid Level Float Switch, Wear Resistant Liquid Water Level Sensor Resistance 0-220V for Solar Energy
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : Kadimendium
ModelName : Kadimendium9ofyqm6gr2
ModelNumber : Kadimendium9ofyqm6gr2
NumberOfItems : 1
PartNumber : Kadimendium9ofyqm6gr2
ProductDescription : 1. Stainless Steel Made: The float ball is made of all stainless steel 304, and the clamp spring is made of 316L, which is and resistance, safe and stable in corrosive environments.
2. High Pressure and Temperature Resistant: The liquid water level switch can withstand a maximum of 5Mpa and a maximum temperature resistance of 120 ℃, enabling it to work in most environments.
3. Wide Voltage Range: The liquid level switch can work at 0 to AC, 0 to 200V DC, and the working current is 0.5 to 1A, which is applicable to most power supplies.
4. Wide Control Range: The stroke range is 10mm, and the liquid level float switch can be controlled within 10mm, with a wide range of applications.
5. Multi Purpose: This level switch can be widely used for drinking fountains, water heaters, solar energy, air conditioners, humidifiers, coffee makers, small refrigerators, etc.

Specification:
Item Type: Liquid Level Float Switch
Material: SUS304 SUS316
Stroke: Approx. 10mm/0.4in
Measuring Medium: Water, oil, specific gravity of alcohol is greater than 0.8
Working Current: 0.5-1 (A)
Medium Temperature: -20℃ to 120℃
Operating Temperature: 0℃ to 120℃
Maximum Temperature Resistance: 120 (℃)
Working Pressure: 1 (Mpa)
Maximum Power:
Maximum Switching Current:

Package List:
1 xLiquid Level Float Switch

Notice:
1. The float ball is made of all stainless steel 304, and the clamp spring is made of 316L.
2. Low voltage means that the float switch can be used for 0‑ DC voltage circuit. High voltage means that the float switch can be used for AC 0‑ and DC 0‑200V lines.
3. High temperature resistance means that the float switch can withstand 120℃ for a long time.
4. High temperature high voltage are white silicone high temperature wires, and low voltage are ordinary black wires.
5. Float switch cannot directly
ProductSiteLaunchDate : 2024-08-12T10:13:23.805Z
Size : 0-1m
UnitCount : 1
