Specification
AgeRangeDescription : adult
Brand : LDHJBNAC
BulletPoint1 : The level gauge realizes a fully digital and humanized design concept, and Digital Level Meter has complete functions of material/liquid level measurement and control, data transmission and man-machine communication.
BulletPoint2 : The LED Level Meter adopts engineering plastic ABS waterproof shell, the Digital Level Meter shell is small and sturdy, which greatly guarantees the durability of the instrument.
BulletPoint3 : Modular circuit design of Liquid Level Sensor Transmitter, LCD Water Level Sensor strict hardware structure, reasonable layout, and accurate measurement.
BulletPoint4 : Integrated Level Meter is suitable for water and sewage treatment, electric power and LCD Water Level Sensor is mining and other occasions, providing powerful help.
Color : 4-20ma Output
ExternallyAssignedProductIdentifier : 7302555691997

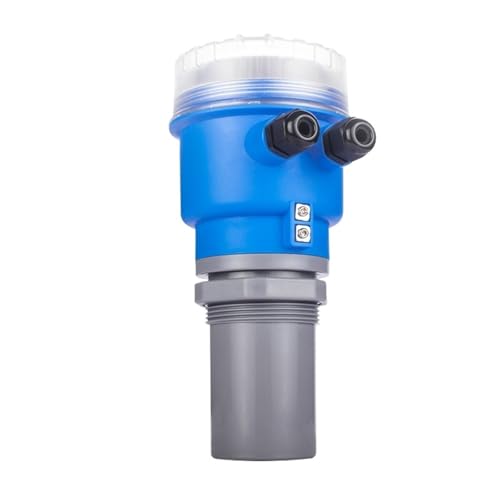

ItemName : LDHJBNAC Ultrasonic Level Meter QDY70A Non Contact Level Sensor Transmitter 5m 10m Range 4-20ma RS485 Liquid Water Meter(8m Range,4-20mA Output)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : LDHJBNAC
ModelName : LDHJBNAC
ModelNumber : LDHJBNAC
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : LDHJBNAC
ProductDescription : Output 4-20mA (2 wires) or RS485(4 wires) ,pls choose what you need.

Main Technical Specifications
Measuring range: 15 meters (optional when ordering)
<; 0.35 ~ 0.5 meters
Accuracy: ±0.5%F.S (default), ±0.2% F.S

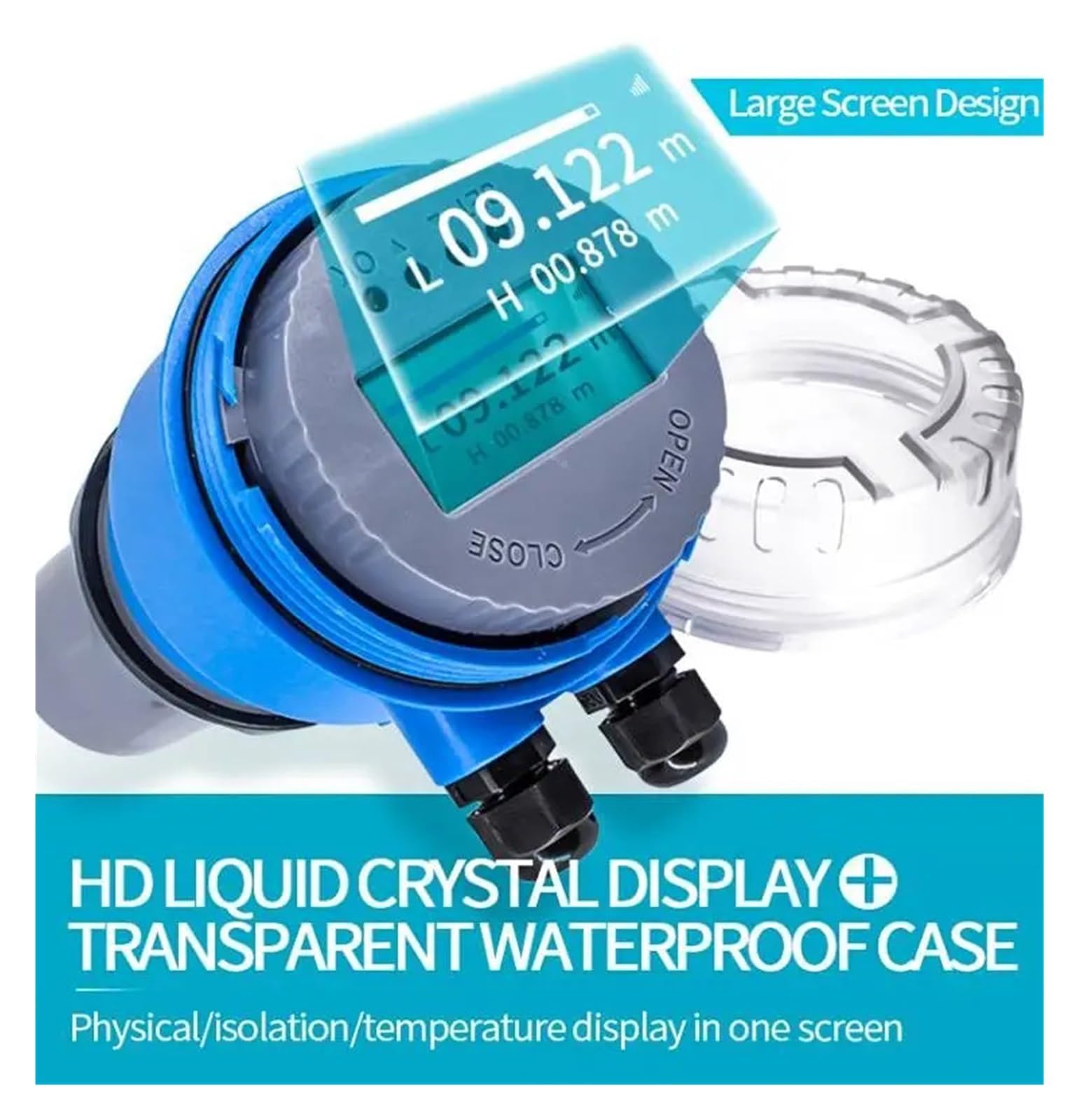

Display: LCD display (Minimum display resolution: 1mm)
Keyboard: 4 touch key
Optional power supply: 12-24VDC (default DC24V) or 220VAC
Output signal (optional): 4-20mA,1-5V/1-10V,RS485
Instrument material: ABS engineering plastics
Electrical interface: PG9
Installation interface: G2
Incoming cable: Terminal block inside
Protection grade: IP65
<; 1.5W
Working frequency: 20-350KHz
Ambient temperature: -40 ~ 80

2 wires wiring diagram :
4 wires wiring diagram :
Specification
Model
QDY70A Ultrasonic level meter
Measuring range
0~5~20m
Blind area
0.35 - 0.5 meters
Ranging accuracy
±0.25%F.S (Standard condition)
Ranging resolution
2mm (Built-in temperature compensation)
-10~60 (Customization)
Display
LCD optional
Output signal
4~20mA;0~5V;0~10V; RS485(Bluetooth optional);3 ways NPN(PP pulse output optional);2 ways Relay output,etc
Power supply
DC12V/DC24V;AC220V
Electrical interface
PG9
Protection grade
IP65
Response time
1.5s
Shell material
ABS
Probe material
ABS/PE/PP/PC/PTFE

Model Number : QDY70-D
Max Measuring Range : 400 Bar & Above
Output : 4-20ma/rs485
power suppy : DC12V DC24V AC220V
ProductSiteLaunchDate : 2024-07-29T07:51:46.763Z
Size : 8m range
UnitCount : 1
