Specification
Brand : Oubit
BulletPoint1 : GRL8 Liquid Level Relay: This liquid level controller has LED indicators, large capacity, ultra-wide voltage, and flame-retardant materials. Stable operation, 35MM standard track installation.
BulletPoint2 : Allowable distributed capacitance: The allowable distributed capacitance (maximum value) of this level controller electrode cable is 800nF-100nF, the electrode wire length is 100m, the setting accuracy is 10%, and the output parameters are 1 x SPDT, 10A/AC1, 250VAC /24VDC.
BulletPoint3 : Installation method: This level controller is suitable for 35MM DIN rail, installation height is 2000m, wiring capacity is 1x2.5mm2 or 2x1.5mm2, size is 90 * 18 * 64mm / 3.54 * 0.71 * 2.52in.
BulletPoint4 : Wide applicability: This liquid level controller is specially designed for liquid level monitoring of pools, wells, water towers, reservoirs, water tanks, etc.
BulletPoint5 : Rated power supply voltage: The rated power supply voltage of this level controller is AC/DC 24-240V (50-60Hz), the maximum power consumption is 2VA, the sensitivity adjustment range is 5-100kΩ, and the power supply voltage tolerance is -15%; + 10%.
ExternallyAssignedProductIdentifier : 8042685174456
IncludedComponents : No

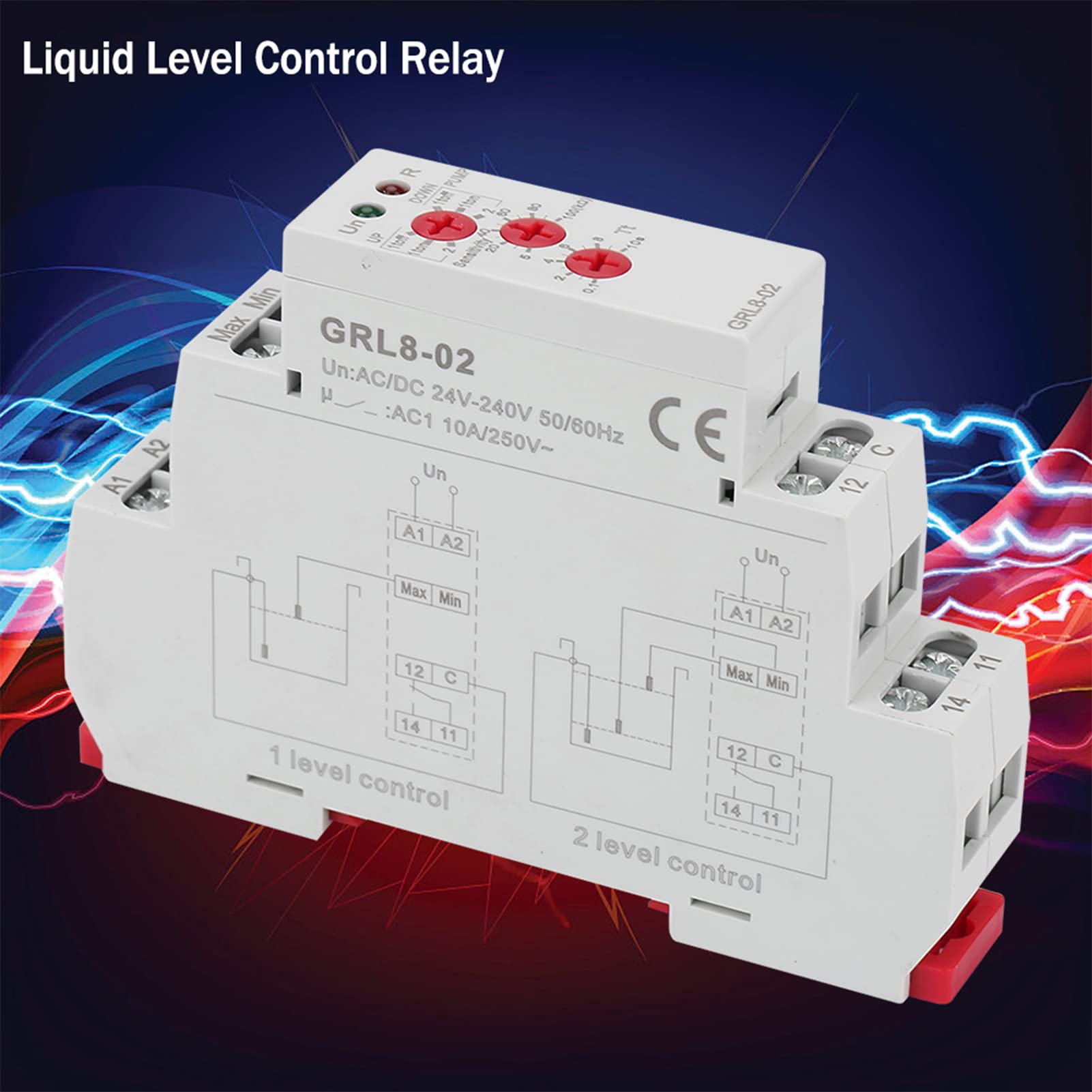

ItemName : GRL8 02 Liquid Level Control Relay Water Level Controller 10A AC DC 24V 240V, Water Level Switch 10a Controller dc Water Level Controller Power Consumption Controller
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : Oubit
ModelNumber : Oubit6u5zvg2k0m
PartNumber : Oubit6u5zvg2k0m
ProductDescription : Features:
1. Designed for monitoring liquid level in pool, well, water tower, reservoirs, tanks, etc.
2. You can set water draining mode and water supply mode.
3. Adjustable sensitivity by a knob (5-100kΩ).
4. Adjustable action time delay (0.1-10S).
5. Relay status is indicated by LED.
6. With small volume, 35mm DIN rail mount.
Specification:
Model: GRL8-02
Function: 2 or 1 level control mode
Power terminal: A1-A2
Rated power supply voltage: AC/DC 24-240V(50-60Hz)
Power consumption: Max. 2VA
Sensitivity adjustment range: 5-100kΩ
Supply voltage tolerance: -15%; +10%
Voltage in electrodes: Max. AC 5V
Current in electrodes: Max. 0.1mA
Response time: Max. 400ms
Electrode cable allows distributed capacitance (maximum): 800nF-100nF
Electrode cable length: ≤100m
Action delay time: 0.1s-10s (adjustable)
Setting accuracy: 10%
Output parameters: 1 x SPDT, 10A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Power indicator: Green LED
Output indication: Red LED
Mechanical life: 1x107
Electrical life(resistive load): 1x106
Reset time: Max 200ms
Working temperature: -20℃~55℃
Mounting method: 35mm DIN rail
Mounting altitude: ≤2000m
Wiring capability: 1x2.5mm2 or 2x1.5mm2
Dimensions: 90*18*64mm / 3.54*0.71*2.52in
Weight: Approx. 82g/2.9oz

Package List:
1 * Liquid Level Control Relay
