Specification
Brand : Kadimendium
BulletPoint1 : MATERIAL: This level sensor is made of 304 stainless steel and 316L, which is resistant, and very .
BulletPoint2 : STRONG COMPATIBILITY: This level sensor can withstand up to 5Mpa and can work in AC 0‑ and DC 0‑200V, which is suitable for most power supplies and can work in most environments.
BulletPoint3 : EASY INSTALLATION: This level sensor is small and compact, and the installation method is very simple and convenient, you can easily do it.
BulletPoint4 : SENSITIVE SENSOR: This level sensor is highly responsive, accurate and can be used within measurement media such as water, oil and alcohol.
BulletPoint5 : WIDE APPLICATION: This level sensor can be used in domestic water towers, drainage ponds, drinking fountains, water tanks and aquaculture ponds.
IncludedComponents : No

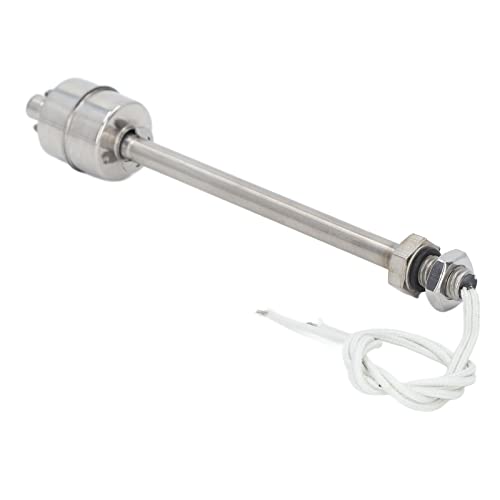

ItemName : Floating Switch, Stainless Steel 5Mpa Robust 0‑220V Proof Anti Liquid Water Level Sensor for Drainage Pond
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 17 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : Kadimendium
ModelName : Kadimendium8wdcbr1n0k
ModelNumber : Kadimendium8wdcbr1n0k
NumberOfItems : 1
PartNumber : Kadimendium8wdcbr1n0k
ProductDescription : 1. SENSITIVE SENSOR: This level sensor is highly responsive, accurate and can be used within measurement media such as water, oil and alcohol.
2. STRONG COMPATIBILITY: This level sensor can withstand up to 5Mpa and can work in AC 0‑ and DC 0‑200V, which is suitable for most power supplies and can work in most environments.
3. MATERIAL: This level sensor is made of 304 stainless steel and 316L, which is resistant, and very .
4. WIDE APPLICATION: This level sensor can be used in domestic water towers, drainage ponds, drinking fountains, water tanks and aquaculture ponds.
5. EASY INSTALLATION: This level sensor is small and compact, and the installation method is very simple and convenient, you can easily do it.

Specification:
Item Type: Float
Material: Stainless steel, 316L
Measuring Medium: Water, oil, alcohol specific gravity greater than 0.8
Working Current: 0.5 A-1 (A)
Medium Temperature: -20℃-120℃
Working Temperature: 0℃-120℃
Maximum Temperature Resistance: 120 (℃)
Working Pressure: 1(Mpa)
Maximum Pressure Resistance: 5 (Mpa)
Maximum Power: Low pressure: 10W
High Pressure: 50W
High Pressure: 1.5A
Float Stroke: Approx. 10mm / 0.39in

PackageList:
1 x Float

Note:
1. The float is made of all stainless steel 304, and the clip spring is made of 316L.
2. Low voltage means the float switch can be used for 0‑ DC voltage circuit.
3. High voltage means the float switch can be used for AC 0‑, DC 0‑200V circuit.
4. High temperature resistance means that the float switch can withstand temperature of 120 degrees for a long time.
5. High temperature and high voltage is white silicone high temperature line, low voltage is ordinary black line
6. Float switch can not directly control solenoid valves or high power relays, AC contactors, etc.. Add a small relay for
ProductSiteLaunchDate : 2024-08-12T10:27:07.785Z
Size : 0-1m
UnitCount : 1
