Specification
Brand : Walfront
BulletPoint1 : Overflow Detection Function: The default wiring is water ingress detection. If you want the overflow detection function. What you need to have power on the alarm output terminals, the C terminal on the pump output and the C terminal on the alarm output need to be connected. Then connected them with a wire. Next you have the overflow working properly as described in the documentation, the black wire from the sensor needs to be moved and connected to the blue terminal together with the blue wire.
BulletPoint2 : Intelligent Control: When the liquid level of the container is too low, the low liquid level alarm from the low liquid level sensor is triggered to the controller to close the relay to start the to add liquid level. When the liquid level reaches a certain height, the high liquid level sensor sends a to the controller to disconnect the relay to automatically stop the . You can use the controller to either to fill or empty a .
BulletPoint3 : Non Contact Induction Probe: Water level controller adopts non contact capacitance induction technology and special induction control chip design, the probe is , strong anti interference ability, sensitive induction, no contact with liquid, safety, environmental and no pollution.
BulletPoint4 : Wide Voltage Power Supply: Relay dry contact output, the controller can be applied to a variety of load. With Control diversification, water level controller can control the pump in manual or automatic mode.
BulletPoint5 : Easy to Install: The installation is simple and convenient. Water level controller can be screwed and installed, also can be installed on the electrical box track.
Color : Floating Body 300mm
ExternallyAssignedProductIdentifier : 7739178008442
ExternallyAssignedProductIdentifier1 : 0639072182873
ExternallyAssignedProductIdentifier2 : 639072182873
FinishType : Finish
IncludedComponents : inc

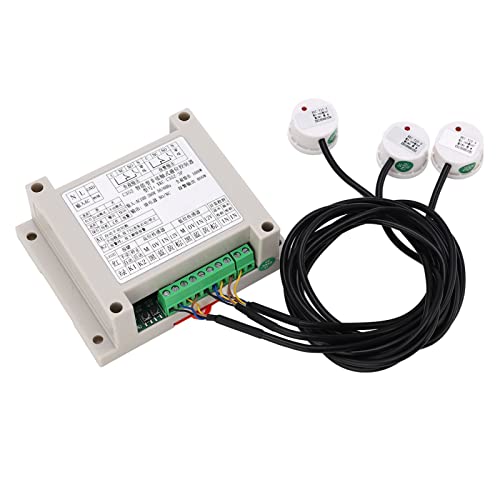

ItemName : AC100 to 260V Automatic Water Controller Automatic Filling System C352 3P Non Contact Liquid Sensor Controller for Water
ItemPackageDimensions_Height : 17.9 centimeters
ItemPackageDimensions_Length : 4.6 centimeters
ItemPackageDimensions_Width : 11.8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : WALFRONT
Material : copper
MaximumSupplyVoltage : 32 volts_of_direct_current
MeasuringRange : 0-39.37 inches
ModelName : WALFRONT3u4xh7dzgv
ModelNumber : WALFRONT3u4xh7dzgv
NumberOfItems : 1
OutputType : analog electrical signal
PartNumber : WALFRONT3u4xh7dzgv
PowerSourceType : PowerSource
ProductDescription : Specification:
Item Type: Automatic Water Controller
Material: ABS
Model: C352 3P (fully automatic water control and inlet or overflow detection)
Input Voltage: AC100V to 260V, 50 or 60Hz
Working Current: Working current ≤ 110mA, static current consumption ≤ 20mA
Load power:
Resistive loads up to 1.6KW (overload or for three phase loads require an AC contactor)
Inductive loads below 1KW (overload or for three phase loads require additional AC contactors) Inductive loads are loads with inductive coils, such as motors, solenoids, solenoid valves, etc.
Alarm Output: 800W (resistive load) normally open or normally closed output
Output Mode: Normally open or normally closed output
Input : Inductive input
Induction Head Interface Voltage: DC12V
Working Temperature: -20 to 105℃
Size: Approx.115 x 90 x 40mm / 4.53 x 3.54 x 1.57in

How to Use:
Direct installation and use

Package List:
1 x Automatic Water Controller
1 x Screwdriver

Notice:
If you are not handy and not really very good with electrical stuff, please do not buy this controller, because it needs electrical engineering skills.


ProductSiteLaunchDate : 2023-09-19T17:06:16.742Z
Size : 0-39.37 inch
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UpperTemperatureRating : 80 degrees_celsius
