Specification
Brand : FTVOGUE
BulletPoint1 : The roller has a great load bearing capacity, which also guarantees the stable working.
BulletPoint2 : This translation stage allows for movement on both X and Y axes, and enables ±12.5mm stroke.
BulletPoint3 : Can be applied on optical equipment, measuring instruments, testing machines, microscopes, etc.
BulletPoint4 : Rotate the knob to push the micrometer, moving smoothly with low noise and high accuracy.
BulletPoint5 : The main body is made of aluminium alloy, scratch‑resistant, drop‑proof and .
IncludedComponents : No

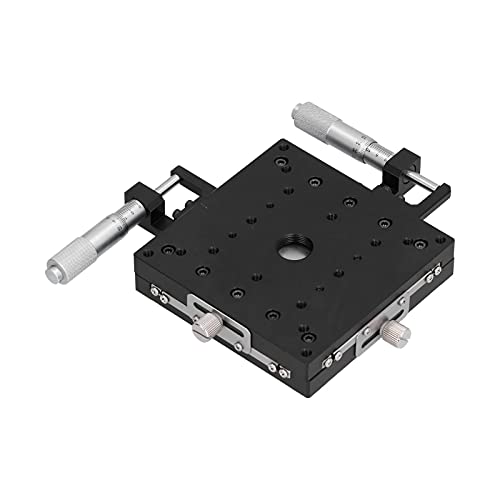

ItemName : Translation Stage, Linear High Accuracy for Equipment
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 17 centimeters
ItemPackageDimensions_Width : 16 centimeters
ItemTypeKeyword : linear-roller-bearings
Manufacturer : FTVOGUE
Material : Aluminum
ModelName : Garosaegapksr7xv
ModelNumber : FTVOGUEnf5o930pix
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : FTVOGUEnf5o930pix
ProductDescription : 1. Rotate the knob to push the micrometer, moving smoothly with low noise and high accuracy.
2. The roller has a great load bearing capacity, which also guarantees the stable working.
3. This translation stage allows for movement on both X and Y axes, and enables ±12.5mm stroke.
4. The main body is made of aluminium alloy, scratch?resistant, drop?proof and ?resistant.
5. Can be applied on optical equipment, measuring instruments, testing machines, microscopes, etc.

Specification:
Item Type: Translation Stage
Model: M2WG-A100
Table Size: Approx. 100 x 100mm / 3.9 x 3.9in
Product Thickness: Approx. 22mm / 0.9in
Movement Direction: X Y 2 directions.
Body Material: Aluminium Alloy (black anodized)
Drive Mode: Rotates the knob to push micrometer on the roller (micrometer + roller ).
Glide Trajectory: Roller
Type: Micrometer Roller
Number of Threaded Mounting Holes on the Table: 16+1
Threaded Mounting Hole Diameter: 16M4mm; 1-M16mm
Depth of Threaded Mounting Hole: Approx. 8mm / 0.3in
Vertical Load Resistance: 39.2N (4Kgf)
Moving Stroke: Approx. ±12.5mm / 0.5in
Minimum Scale: 0.01mm
Straightness: 0.03mm
Scope of Application: Optical equipment, measuring device, semiconductor manufacturing equipment, testing machine, microscope, handling machine, processing machine, medical equipment, printing machine and others.

How to Use:
1. The mechanical sliding stage is a general component that completes the feed movement. The complete mechanical sliding stage is composed of the sliding stage part and its moving common parts, the complete mechanical sliding stage part is composed of other moving device brakes and other auxiliary parts; 2. According to the process requirements of the processed parts, a power box, drilling head, boring head, milling head, turning head, etc. can be installed on it to form various combined machine tools to complete drilling,
