Specification
AgeRangeDescription : adult
Brand : RocoReny
BulletPoint1 : High-precision electric rotating platform: New construction, new technology;key indicators have passed strict inspection.This series of products are used for 3D scanning measurement system, etc., using worm gear, friction resistant material, high precision of rotation precision, outer ring With scale, interface, convenient signal output. Widely used in industrial automation and scientific experiments, the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading.
BulletPoint2 : The limit function and zero function can be added: The stage can be used vertically or assembled with other stages. The prototype stepper motor 42 stepping motor (1.8°). The servo motor can be replaced according to requirements. The steel cup has high precision, large carrying capacity and long service life.
BulletPoint3 : Standard stepper motor and DB9 interface: Choose controller flexibility, so we can provide a fully customized motion system. A timing platform with stepper motor and RS232 interface for easy connection to motion controllers.
BulletPoint4 : Structural specifications:Product model: HT03RA100,Itinerary : 360°,Table size: Φ100mm,Transmission mode: worm gear (reduction ratio 1/180),Guide rail: bearing,Material: Aluminum-black anodized,Weight: 1.7kg,Resolution / Pulse: 0.01 ° (no subdivision)0.0005° (20 subdivisions),Design resolution: 0.01°, non-MS drive;0.0005° = 1.8", 20MS drive,Rotation speed (maximum): 25° / sec,Repeatability: 0.005° = 18",Absolute on-axis accuracy: 0.01° = 36",Top board beat: 15μm,Recoil: 0.005° = 18",Eccentricity: 10μm,Lost movement: 0.005° = 18",Parallelization: 80μm,Load: 45kg,Packing size: 23*13*16cm,Gross weight: 2kg.
BulletPoint5 : Fine grinding worm drive: Comfortable movement, backwards can be neglected, the motor is connected with the worm through a high-quality elastic coupling, synchronous drive without noise. Dash the outside of the platform to easily read the scale. Widely used in industrial automation and scientific experiments, the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading.
Color : One Color
ExternallyAssignedProductIdentifier : 3006537477022
ExternallyAssignedProductIdentifier1 : 0769092585382
ExternallyAssignedProductIdentifier2 : 769092585382
FitType : Universal
IncludedComponents : 1X HT03RA100 rotating platform

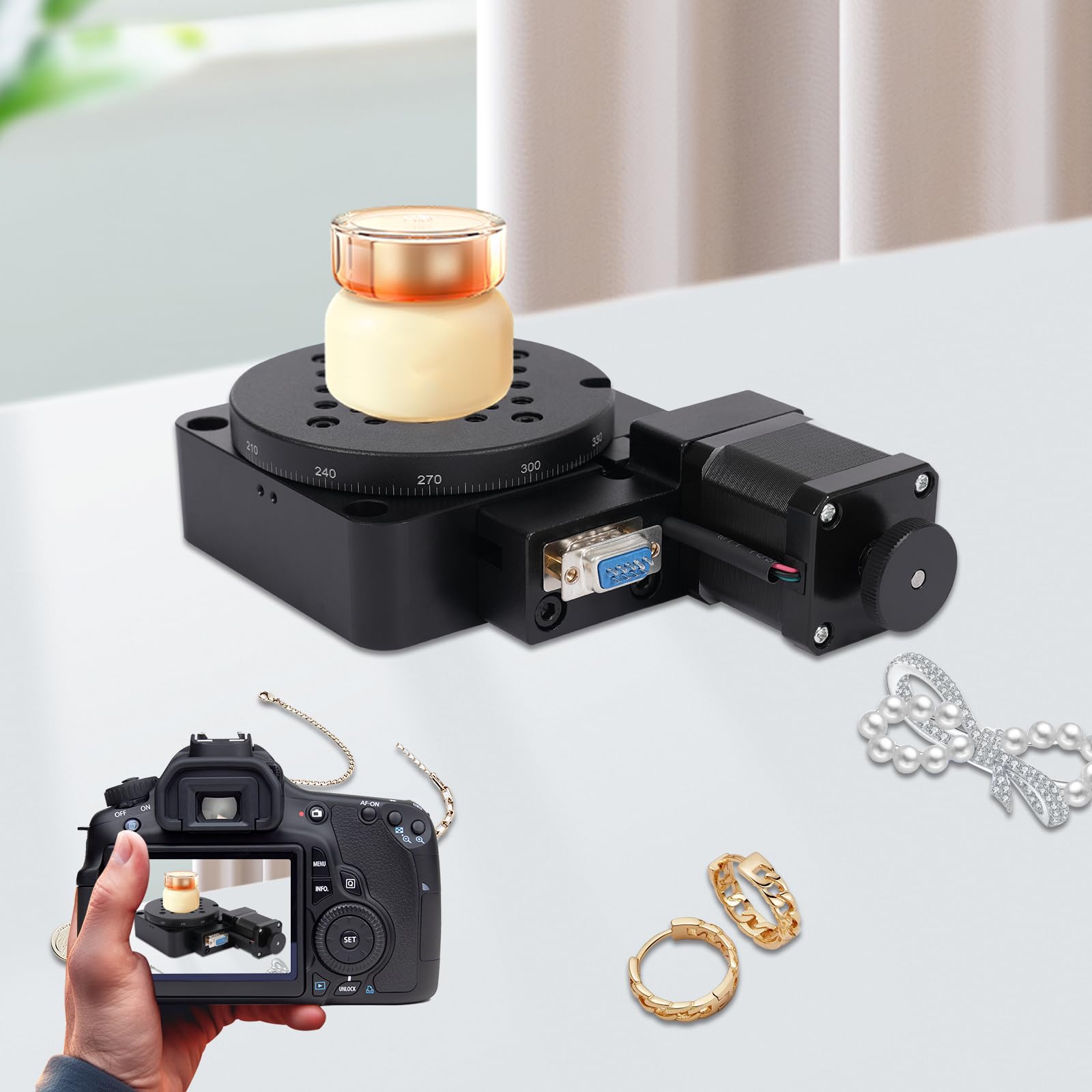

ItemName : RocoReny Electric Rotating Platform Machine, HT03RA100 360° Precision Sliding Table, 100mm Bearing Scale High Precision Fine Tuning Optical Stage for 3D Scanning Measurement System
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-roller-bearings
Manufacturer : RocoReny
Material : Aluminum-black anodized
ModelName : XZYRN
ModelNumber : HT03RA100
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : HT03RA100
ProductDescription :

Structural specifications:

Product model: HT03RA100

Itinerary : 360°

Table size: Φ100mm

Transmission mode: worm gear (reduction ratio 1/180)

Guide rail: bearing

Material: Aluminum-black anodized

Weight: 1.7kg

Resolution / Pulse: 0.01 ° (no subdivision)

                             0.0005° (20 subdivisions)

Design resolution: 0.01°, non-MS drive;

0.0005° = 1.8", 20MS drive

Rotation speed (maximum): 25° / sec

Repeatability: 0.005° = 18"

Absolute on-axis accuracy: 0.01° = 36"

Top board beat: 15μm

Recoil: 0.005° = 18"

Eccentricity: 10μm

Lost movement: 0.005° = 18"

Parallelization: 80μm

Load: 45kg

Packing size: 23*13*16cm

Gross weight: 2kg





Package Included:

1X HT03RA100 rotating platform

ProductSiteLaunchDate : 2024-11-01T09:11:43.532Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 31171500
