Specification
Brand : Eleeferri
BulletPoint : Bearing
BulletPoint1 : 【High Precision】 Worm gear transmission mode, using special process, durable and reliable, high precision shafting makes high rotation precision, large bearing capacity and stable movement
BulletPoint2 : 【Smooth Rotating】 Fine grinding worm drive, comfortable movement, backwards can be neglected, the motor is connected with the worm through a high-quality elastic coupling, synchronous drive without noise. Dash the outside of the platform to easily read the scale
BulletPoint3 : 【Versatile Functions】The limit function and zero function can be added. The stage can be used vertically or assembled with other stages. The prototype stepper motor 42 stepping motor (1.8°). The servo motor can be replaced according to requirements
BulletPoint4 : 【Convenient Interface】Standard stepper motor and DB9 interface, choose controller flexibility, so we can provide a fully customized motion system. A timing platform with stepper motor and RS232 interface for easy connection to motion controllers
BulletPoint5 : 【Wide Application】This series of products are used for laser precision machining, 3D scanning measurement system, and industrial automation and scientific experiments, the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading. The electronically controlled rotary table can be used flat, vertically, and inverted
Color : One Color
ExternallyAssignedProductIdentifier : 8047285168782
ExternallyAssignedProductIdentifier1 : 0769092389584
ExternallyAssignedProductIdentifier2 : 769092389584
IncludedComponents : 1X HT03RA100 rotating platform

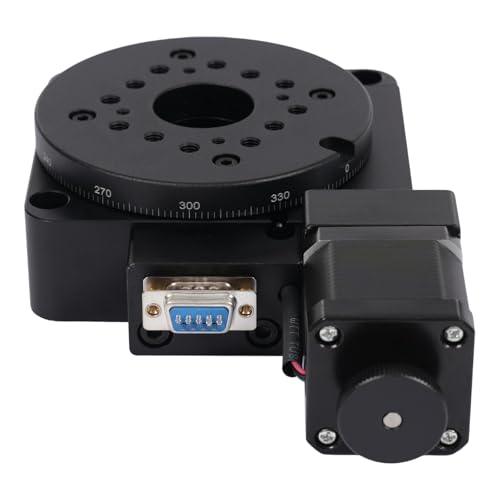

ItemName : Eleeferri Rotating Platform HT03RA100 Electric Rotating Machine High Precision Optical Rotating Platform Motorized Rotation Stage 100mm Bearing Scale
ItemPackageDimensions_Height : 16 centimeters
ItemPackageDimensions_Length : 23 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-roller-bearings
Manufacturer : Eleebase
Material : Aluminum
ModelNumber : HT03RA100
NumberOfItems : 1
PartNumber : OT-LMLZBY-2849-Elee
ProductDescription :

Specifications

Product model: HT03RA100

Itinerary : 360°

Table size: Φ100mm

Transmission mode: worm gear (reduction ratio 1/180)

Guide rail: bearing

Material: Aluminum-black anodized

Weight: 1.7kg

Resolution / Pulse: 0.01 ° (no subdivision)

                               0.0005° (20 subdivisions)

Design resolution: 0.01°, non-MS drive;

0.0005° = 1.8", 20MS drive

Rotation speed (maximum): 25° / sec

Repeatability: 0.005° = 18"

Absolute on-axis accuracy: 0.01° = 36"

Top board beat: 15μm

Recoil: 0.005° = 18"

Eccentricity: 10μm

Lost movement: 0.005° = 18"

Parallelization: 80μm

Load: 45kg

Packing size: 23*13*16cm

Gross weight: 2kg

Package Included

1X HT03RA100 rotating platform
