Specification
Brand : GMSLuu
BulletPoint : DFU3210 Double Ball Screw Nut + BK/BF25 Bearing Block End Supports+ Coupler + Nut Housing for CNC Machine
BulletPoint1 : High-quality Material：This product is made of aviation aluminum, this product is less prone to corrosion, wear, and deformation, ensuring a long service life
BulletPoint2 : Thoughtful Design：The two sides adopt a dual optical axis design structure, which makes the accuracy higher,giving the sliding table a larger load capacity and more stable operation
BulletPoint3 : Manual Control：You can manually control the running direction of the slide to achieve precise positioning and adjustment.The ergonomic handle provides a comfortable grip and the locking mechanism makes the slide less likely to loosen
BulletPoint4 : Easy to Use and Clean：This product does not require complex control systems or power supply, easy to operate, low maintenance costs. And it has a smooth surface and a simple structure, so you just need to wipe the dust with a towel after use
BulletPoint5 : Application：It is used for CNC equipment renovation, production machinery, testing equipment, precision measurement of optical laboratories, fine adjustment of displacement, positioning, and movement of mechanical equipment
BulletPoint6 : 3. Easy to assemble The aluminum support rails come with pre-drilled holes for easy installation.
BulletPoint7 : 4. Can easily preload the rotational change and linear motion.
Color : Black
CrossSectionShape : Round
ExternallyAssignedProductIdentifier : 7505537609861
ExternallyAssignedProductIdentifier1 : 661021656975
ExternallyAssignedProductIdentifier2 : 0661021656975
IncludedComponents : 1* Manual Sliding Table Linear Rail Guide

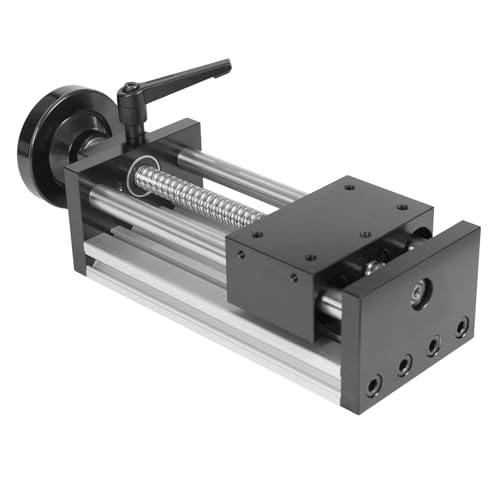

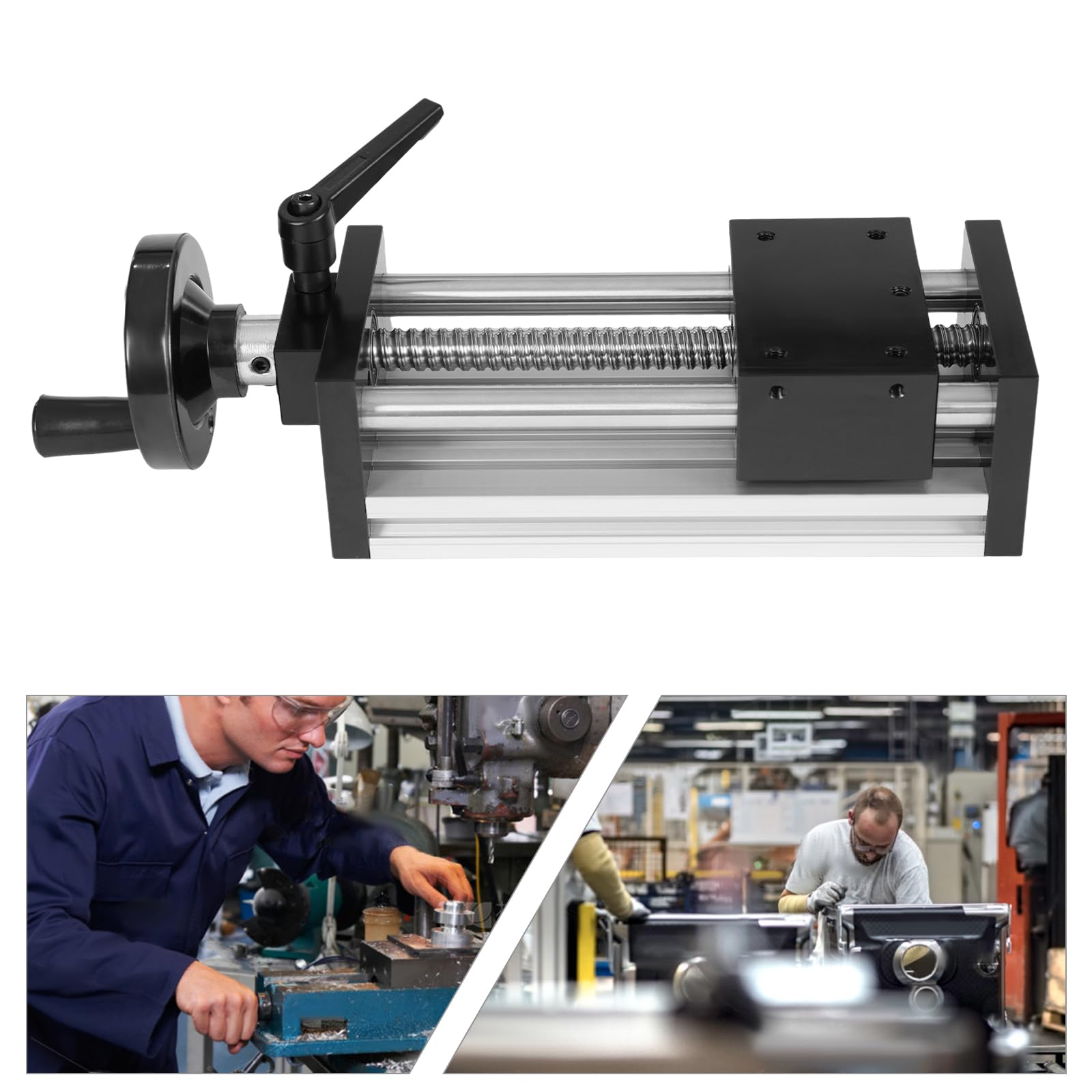

ItemName : GMSLuu 100 mm/150 mm/250 mm Manual Sliding Table Linear Rail Guide,Dual Optical Axis Manual Sliding Table Linear Rail Guide Linear Guide Slide Table (100 mm)
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 12 inches
ItemPackageDimensions_Width : 4 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : linear-motion-guides
LoadCapacity : 66 Pounds
Manufacturer : HUMuu
Material : Aviation Aluminum
ModelNumber : GY323F-000000-HUMuu
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : GY323F-000000-HUMuu
Pattern : Solid
ProductDescription :

Description

Our manual sliding table linear rail guide is a professional tool that is widely used in CNC equipment renovation, production machinery, testing equipment, precision measurement in optical laboratories, and more. High-quality materials make it sturdy and durable. The dual optical axis design structure and manual control of the sliding table operation direction achieve precise positioning and adjustment. In short, with its accurate and flexible characteristics, it will be your ideal choice!

Specification

Material: Aviation Aluminum

Color: Black, Silver

Operation Mode: Manual

Positioning Accuracy: ± 0.05mm/0.002in

Maximum Horizontal Load Capacity: 30kg/66.14lbs

Maximum Vertical Load Capacity: 15kg/33.07lbs

Lead: 5mm/0.2in

Bearing Hole Diameter: 13mm/0.51in

Bearing Plate Height: 56mm/2.2in

Bottom Movable Nut Size: M6

Side Mounting Hole Size: M4

Installation Hole on the Slider: 4* M5

Hole Spacing on Slider: 30*60mm/1.18*2.36in

GY323F-000000 (100mm):

Effective Stroke: 100mm/3.94in

Product Length: 180mm/7.09in

Packaging Size: 31*11*10cm/12.2*4.33*3.94in

Gross Weight: 1.6kg/3.53lbs

Net Weight: 1.3kg/2.87lbs

GY323F-000100 (150mm):

Effective Stroke: 150mm/5.91in

Product Length: 230mm/9.06in

Packaging Size: 31*11*10cm/12.2*4.33*3.94in

Gross Weight: 2kg/4.41lbs

Net Weight: 1.72kg/3.79lbs

GY323F-000200 (250mm):

Effective Stroke: 250mm/9.84in

Product Length: 330mm/12.99in

Packaging Size: 41*12*11cm/16.14*4.72*4.33in

Gross Weight: 2.2kg/4.85lbs

Net Weight: 2kg/4.41lbs

Package Included

1* Manual Sliding Table Linear Rail Guide

Note

Please confirm whether the size is appropriate before placing the order.

ProductSiteLaunchDate : 2024-08-07T07:03:57.625Z
Size : 100 mm
Style : B57
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 24102000
