Specification
Brand : Antrella
BulletPoint1 : Effective Travel Length: 1300mm. Stepper motor: 86,Nema 34
BulletPoint2 : Repeat positioning accuracy of up to ± 0.05mm
BulletPoint3 : Ball Screws: SFE2020/2525, SFU1605/1610/2005/2010/2505/2510 are optional,which is for movement structural elements executed, with high precision, high efficiency, long life, low coefficient of friction, versatility, etc
BulletPoint4 : Widely use: equipment such as biotechnology, spraying equipment, punching machine, cutting machine, laser machine, cleaning equipment, welding equipment, packaging machines,DIY, CNC machine
BulletPoint5 : Linear Rail Guide, Designed with ball retainer, which allows interchangeability in the case of small precision
Color : T8
ExternallyAssignedProductIdentifier : 8414797692096
ExternallyAssignedProductIdentifier1 : 0748904542942
ExternallyAssignedProductIdentifier2 : 748904542942

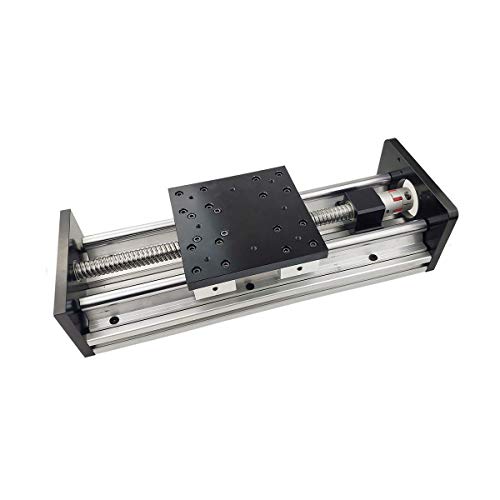

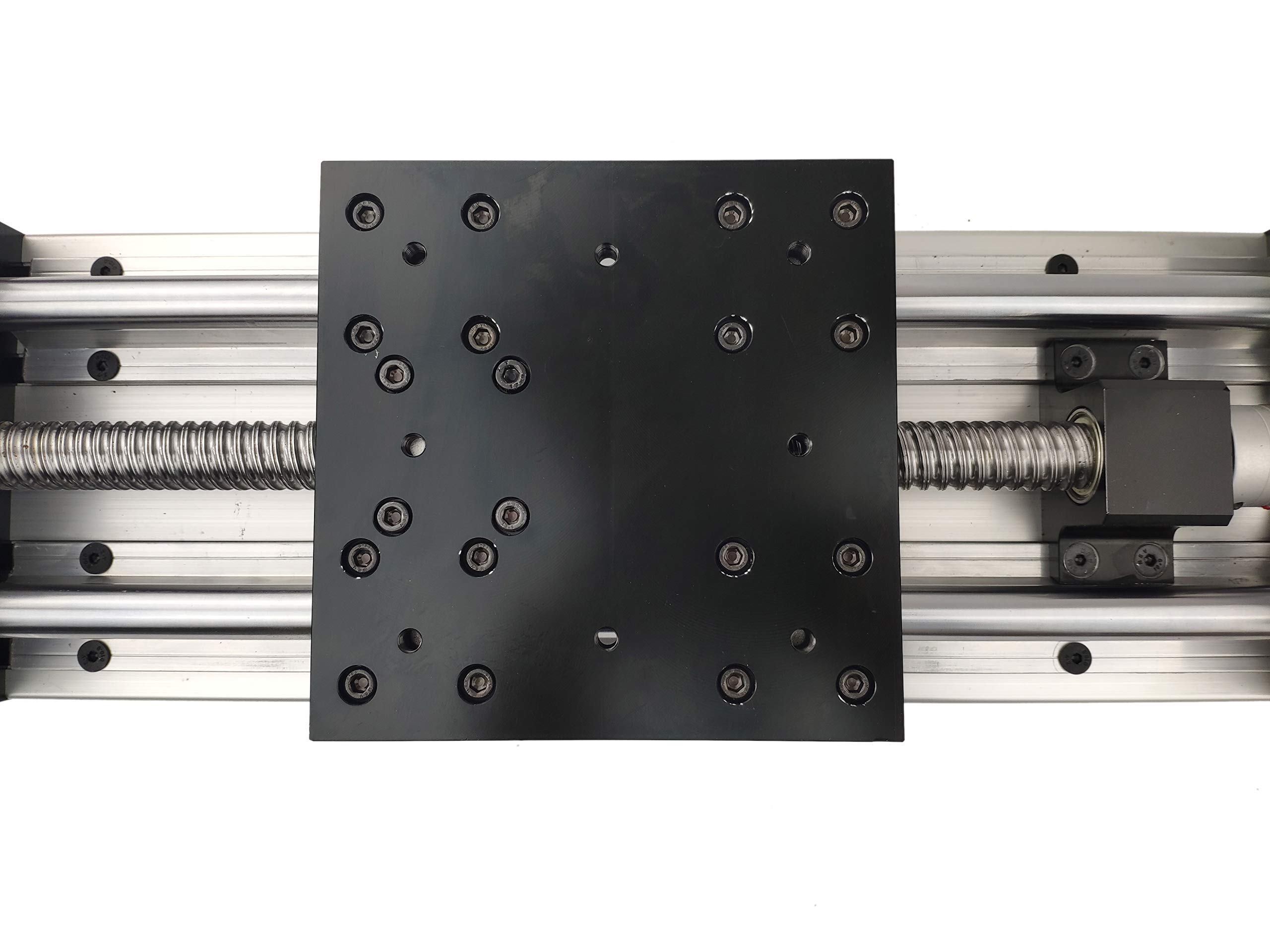

ItemName : Antrella 1300mm Travel Linear Stage Actuator SFU2005 RM2005 Linear Guide Module with Stepper Motor 86, NEMA 34 Series SBR for DIY CNC Router Milling Machine, etc.
ItemPackageDimensions_Height : 60.96 centimeters
ItemPackageDimensions_Length : 2.54 centimeters
ItemPackageDimensions_Width : 2.54 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-guides
Manufacturer : Antrella
Material : Stainless Steel
ModelNumber : DDMQOOAOA-T8-PITCH2MMLEAD2MM
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : Slide table-SBR-RM2005-1300mm-86-US
ProductDescription :

Note:

The actual effective length has 30mm longer than the real effective length, which is for protecting the linear guide rail module. If you do not need the additional length, please contact us! We would confirm with you the exact effective length.

Product information:

Effective length: 200mm-1800mm

Ball screw: SFU2005-C7

Ball screw pitch (lead): 5 mm

The highest horizontal speed: 250mm / s

The highest vertical speed: 100mm / s

Stepper motor: Nema 34, 48v 5A

SBR series: 150 x 150 mm. The series of individual modules has a module in each track. This product has two tracks with two modules. Series of double modules each track has two modules. The product is a double track with four modules.

Package includes 1 SFU2005 sliding table with 86 stepper motors, Nema 34, series SBR Linear guide rail combination system

ProductSiteLaunchDate : 2019-09-04T02:02:42.355Z
Size : 1300MM
Style : SFU/RM2005
SupplierDeclaredDgHzRegulation : not_applicable
