Specification
Brand : MotorGuide
BulletPoint : New SMC MXH6 series slide cylinder MXH10-5Z guide rail type
BulletPoint1 : ✅【ZBX80-200mm load capacity】Material: Aluminum Alloy; Effective Stroke: 200mm/7.87 inch; Horizontally loadable: 80KG / 176.37 lb; Vertical carrying: 20KG / 44.09 Ib; Width: 80mm/3.15 inch.
BulletPoint2 : ✅【ZBX80 Size】Total length of the linear Motion Actuator including the stepper motor : 430mm/16.93 inch; Total length of the base plate without motor and bracket: 319mm/12.56 inch.
BulletPoint3 : ✅【Nema23 hybrid stepper motor】Motor size: 57 * 57mm * 56mm, Torque: 1.2N.m; Step angle: 1.8°; Current: 3A; Phase inductance: 3.8mH; Phase resistance: 1.1Ω; Shaft: single out shaft; Voltage: 12-36V (typical value 24V); Control mode: pulse control.
BulletPoint4 : ✅【DM556S stepper motor driver】Input Voltage: 20-50V DC It is recommended to use 24V DC; Output Peak Current: 1.0A-6A; Impulse response frequency up to 500KHz factory default 200KHz; Can drive 4,6,8-wire two-phase stepper motor,suitable for Nema 17,Nema23,Nema24 and Nema34 Stepper Motor.
BulletPoint5 : ✅【How to wiring the 4-lead wire】 Stepper motor's BLACK wire connects to driver's A+ port; Stepper motor's GREEN wire connects to driver's A- port; Stepper motor's RED wire connect to driver's B+ port; Stepper motor's BLUE wire connect to driver's B- port.
Color : One Color
ConnectivityProtocol : Wi-Fi
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 6190072195811
ExternallyAssignedProductIdentifier1 : 0745061628670
ExternallyAssignedProductIdentifier2 : 745061628670
IncludedComponents : DM556S Stepper Motor Driver+ZBX80 CNC Linear Stage Motion Actuator
InternationalProtectionRating : IP00

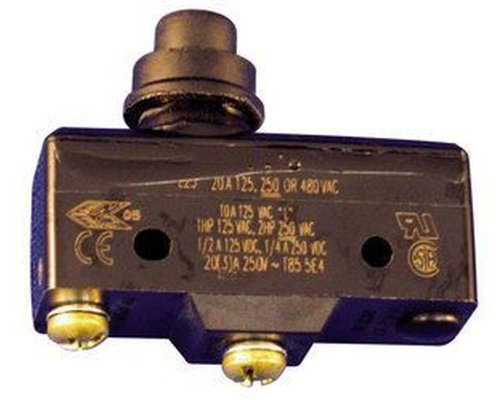

ItemName : Motorguide MAP15104T MICRO SWITCH ASSY MOTORGUIDE MISCELLANEOUS ACCESSORIES
ItemPackageDimensions_Height : 11.7 centimeters
ItemPackageDimensions_Length : 1.7 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-guide-actuators
Manufacturer : CCGK
Material : Alloy Steel
MaximumSpeed : 1000 rpm
ModelName : MXH10-5Z
ModelNumber : 87-MAP15104T
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 87-MAP15104T
ProductDescription : New SMC MXH6 series slide cylinder MXH10-5Z guide rail type
ProductSiteLaunchDate : 2010-02-28T07:49:59.696Z
Size : EGW30-CA
Style : 300mm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 39122200
Voltage : 12 volts
