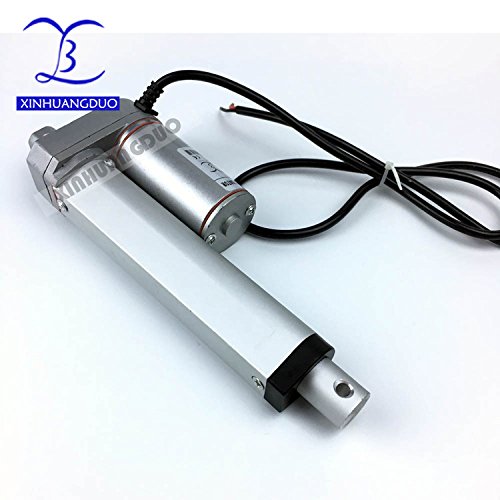

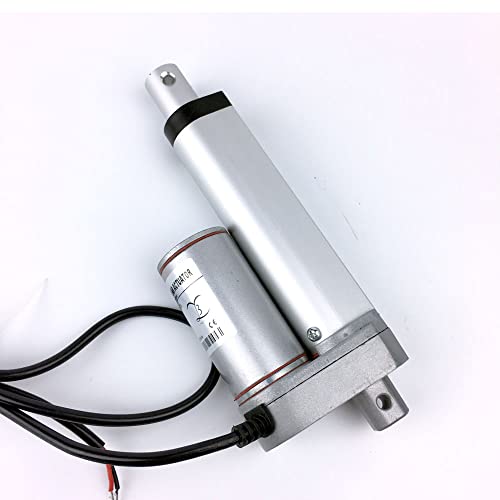

XINHUANGDUO 100mm/4inch stroke micro linear actuator electric linear actuator TV lift high speed linear actuator(12v 100MM 40MM/S 100N)

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 9700/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : XINHUANGDUO
BulletPoint : Material:Aluminum
BulletPoint1 : Superior IP65 Protection Rating: Featuring an impressive IP65 protection rating, VEVOR's 12V linear actuator delivers excellent resistance to dust and water. It excels in moist and high humidity conditions, perfect for outdoor applications and humid environments like lawn mowers, solar panel tracking systems, and irrigation systems.
BulletPoint2 : High Torque Output: With a torque output of 660lbs/3000N, our linear motion actuator is perfect for tasks requiring substantial torque, such as agricultural equipment, construction machinery, and industrial automation.
BulletPoint3 : Extended Range of Motion: With a generous 20-inch (500mm) stroke, our electric linear actuator provides a longer range of motion, making it suitable for tasks requiring extensive movement.
BulletPoint4 : Versatile Applications: With a noise level below 60db, VEVOR 12V linear actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation and more. It's versatile and ready for various tasks.
BulletPoint5 : Key Specifications: Stroke Length: 20 inch (500mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 26.37" (670mm); Extended Length: 46.37" (1170mm); Current Draw: 6amps; Rated Voltage: DC12V; Duty Cycle: 25%.
ExternallyAssignedProductIdentifier : 6912839639181
ExternallyAssignedProductIdentifier1 : 197988630104
ExternallyAssignedProductIdentifier2 : 197988564140
ExternallyAssignedProductIdentifier3 : 0197988564140
ExternallyAssignedProductIdentifier4 : 0197988630104
ExternallyAssignedProductIdentifier5 : 00197988630104
IncludedComponents : 2 x Mounting Brackets 2 x Screw Rods 2 x R-Type Pins 2 x Waterproof Cap Covers
ItemName : XINHUANGDUO 100mm/4inch stroke micro linear actuator electric linear actuator TV lift high speed linear actuator(12v 100MM 40MM/S 100N)
ItemPackageDimensions_Height : 2.76 inches
ItemPackageDimensions_Length : 28.35 inches
ItemPackageDimensions_Width : 4.33 inches
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
Manufacturer : XINHUANGDUO
Material : Aluminum
ModelNumber : OK648-A
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : XHDA-100-12-40
ProductDescription : Linear Actuators
Dear customer: if you placed an order don't tell us that you need the product type.
such as : Voltage ,stroke ,thrust, speed
if you want other parameter ,you can choose the following parameters:
12V/24V 100MM 900N12MM/S100MM 700N 10MM/S
12V/24V 100MM 600N 15MM/S
12V/24V 100MM 400N 20MM/S
12V/24V 100MM 300N 25MM/S
12V/24V 100MM 200N 30MM/S
12V/24V 100MM 100N 40MM/S
Product parameters:
Drive voltage: 24VDC (If you need 12V ,please contact us)
Maximum Thrust: 90KG/900N
Minimum installation size (fully retracted around in the middle of the distance between the two holes): L1= Stroke+105 mm
Maximum installation size (fully extended around the middle of the distance of the two holes): L = 2xS(stroke)+105mm
Ambient temperature :-26 to +65 degree
Protection class: IP 54
Built-in limit switches(When completed stroke, linear actuator automatically .stops!)
Low noise design, noise levels below 42 db
Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest.
If lower load can extend work time.
Maximum self-locking force 2300N
Features
1. Reliable performance
2. Stable running
3. The same characteristics of push and pull
4. Good environment adaptability


Application
1. Electric booth lifting rod
2. Electric sofa
3. The medical electric bed
4. Tripod of camera
5. The wedding system
6. Industrial electric lifting system
7. Electric lifting lever
Package Included
1pc 100MM Linear Actuator which Speed / Thrust You Have Selected
> ucucucucucuc
ProductSiteLaunchDate : 2018-04-24T07:00:00.000Z
Size : 12
Style : 40MM/S 100N
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 4
