Specification
Brand : WYDDDARY

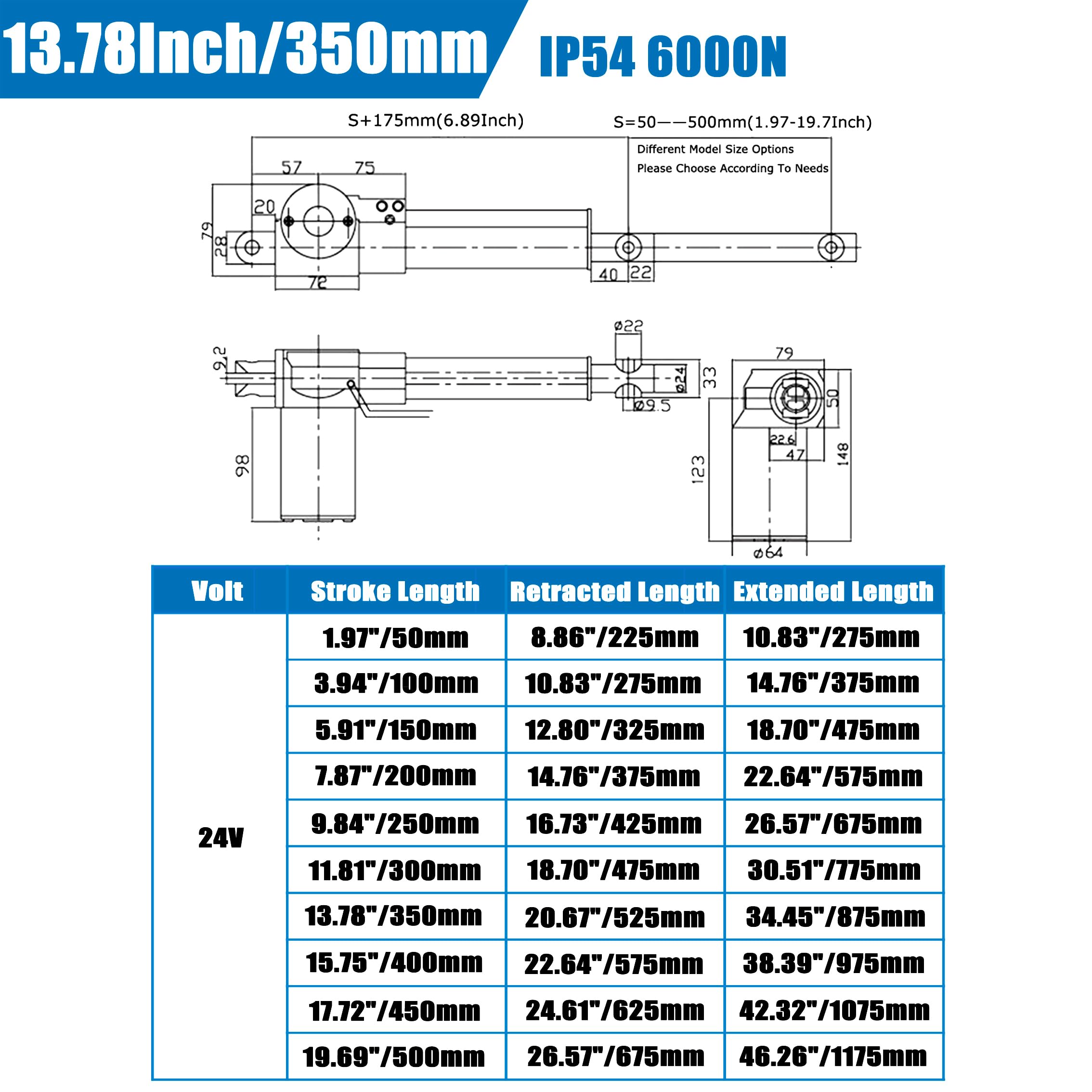

BulletPoint1 : ⚡【SPECIFICATION】Voltage: 24V DC; Stroke Length: 13.78"(350mm), Retracted length: 20.67"(525mm), Extended Length: 34.45"(875mm); Speed: 5~7mm/s, Max Pull Load: 4500N (990lbs), Max Push Load : 6000N (1320lbs); Operating frequency: Max 25%; Duty Cycle: 25%.
BulletPoint2 : ⚡【FEATURES】Protection class: IP54; Ambient temperature:-26° C to +85°C; Control Mode: Positive & Negative. Our linear actuator with reliable performance, sensitive action, stable running, the same characteristics of push and pull, and good environment adaptability etc.
BulletPoint3 : ⚡【LOW NOISE DESIGN】With low noise design, move at 5-7mm/s, silent and stable, make sound lower than 48db, suit for hospital, massage, and other quiet places.
BulletPoint4 : ⚡【PREMIUM MATERIAL】Our small linear actuator is made of high quality aluminum, with high performance pure copper core motor and built-in stroke switch, low heating, long service life and more stable performance. The machine specially added flat washers, effectively prevent the screws from falling off automatically, ensuring safety.
BulletPoint5 : ⚡【WIDE APPLICATION】Linear actuators can be widely used not only in industry, such as electric lift systems, electric beds, traction beds, electric sofas, electric lifting bars, but also in food and feed processing, machinery, metallurgy, mining, petroleum, food and feed processing, etc.
Color : Silver
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 9101947314616
ExternallyAssignedProductIdentifier1 : 0760714826807
ExternallyAssignedProductIdentifier2 : 760714826807
IncludedComponents : No

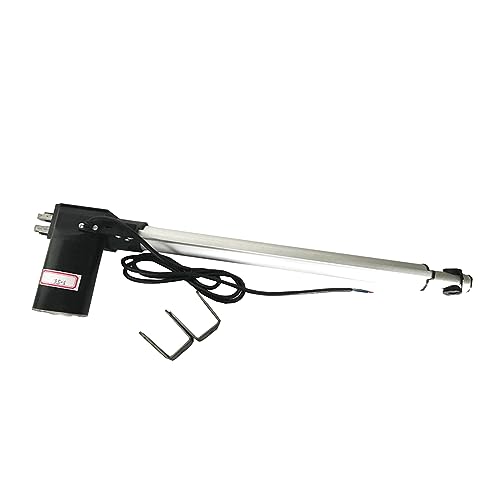

ItemName : WYDDDARY 24V DC Electric Linear Actuator with Mounting Bracket 6000N/1320LB Heavy Duty Actuators Controller Stroke 13.78inch (350mm) Small Push-Rod Motor for Massage Bed TV Table Lift
ItemPackageDimensions_Height : 5.51 inches
ItemPackageDimensions_Length : 24.02 inches
ItemPackageDimensions_Width : 7.87 inches
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
Manufacturer : WYDDDARY
Material : Aluminum
ModelName : NOENNULLm4anvb79ph-12
ModelNumber : NOENNULLm4anvb79ph-12
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : CD021444
ProductDescription :

Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.

With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.

Features:

100% Brand New and high quality

Heavy Duty and Long Lasting Motor

High quality aluminum alloy material

High performance motor

The low noise design

Multiple Purpose Applications Linear Actuator

How to install the actuator:

1.Prepare to connect the two wires of the actuator to 24 volt.

2.Red wire to the positive terminal and Black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.

3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch.

4.Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.

5.The actuator has pre-installed inner limit switch, it cannot be adjustable.

How to protect your actuator:

1.Please use the 24V DC power adapter.

2.The actual load does not exceed the rated load.

3.All the actuators have duty cycle, they are unable to work all the time without stop.

4.The actuator is not completely waterproof, please do.

ProductSiteLaunchDate : 2023-08-28T01:41:05.729Z
Size : 13.78''/350mm
Style : 24V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 31251511
