Specification
Brand : RustyVioum
BulletPoint1 : 【Specifications】Product: Power Recliner Motor Actuator; Stroke Length: 250mm; Unextended Dimensions: 250mm + 175mm = 425mm; Extended Size: 250mm + 175mm + 250mm = 675mm; Permanent Magnet Dc Motor Drive; ; Voltage: 24VDC; Maximum Push / Pull: 100KG / 100KG.
BulletPoint2 : 【24VDC permanent magnet motor 】This 24vdc permanent magnet motor actuator can thrust up to 1000 n in push.And up to 1000 n in pull. Standard stroke, 25-800 mm, can design as customers requirement.
BulletPoint3 : 【Mounting dimensions】Minimum Installation Size (Distance Between The Push Holes And The Two Holes Before And After The Return Of The Putter):L = S (Stroke) + 175mm. The Distance Between The Push Rod And The Two Holes Before And After Is Extended To =2XS (Stroke) +175mm. No Load Speed: Maximum 40mm / S
BulletPoint4 : 【Widely used】This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Electric sofa, massage chair, TV lift, franklin sofa, double sofa, combination reclining chair, reclining chair, sofa, sectional sofa.
BulletPoint5 : 【Packages include】1 x Recliner Replacement Motor Actuator, 1 x 8-Suffix AC Line, 1 x DC Line, 1 x Power Adapter, 1 x Embedded Hand Controller, 2 x Cotter Pins.
Color : #012
ExternallyAssignedProductIdentifier1 : 0689722903167
ExternallyAssignedProductIdentifier2 : 689722903167
IncludedComponents : recliner motor
ItemName : RustyVioum Electric Recliner Lift Chair 24 V DC Linear Actuators 250mm Stroke Length Electric Power Recliner Motor Replacement
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 40 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : linear-motion-actuators
Manufacturer : RustyVioum
ModelName : Gearwell4oa6t2beyf-12
ModelNumber : JSTPURE
NumberOfItems : 1
PartNumber : recliner motor
ProductDescription :

Specifications:

• Product: Power Recliner Motor Actuator
• Stroke Length: 250mm
• Unextended Dimensions: 250mm + 175mm = 425mm
• Extended Size: 250mm + 175mm + 250mm = 675mm
• Permanent Magnet Dc Motor Drive;
• Voltage: 24VDC
• Maximum Push / Pull: 100KG / 100KG
• Minimum Installation Size (Distance Between The Push Holes And The Two Holes Before And After The Return Of The Putter):L = S (Stroke) + 175mm;
• The Distance Between The Push Rod And The Two Holes Before And After Is Extended To =2XS (Stroke) +175mm
• No Load Speed: Maximum 40mm / S
• Rated Load Rate: 5mm / S (600KG) -40mm / S (30KG)
• Ambient Temperature: -5 C + + 50 C
• Standard Protection Level: Ip44
• Net Weight:3.3kg
• Gross Weight:3.66kg



Features:

• 24VDC Permanent Magnet Motor
• Thrust Up To 1000 N In Push.And Up To 1000 N In Pull.
• Elegant And Compact Design With Small Installation Dimensions
• Built-In Limit Switches (Not Adjustable)
•  Aluminium Outer Tube Ø30 Mm
• Aluminium Inner Tube Øø24mm
• Steel Back Fixture
• Standard Protection Class, Ip44
• Noise Level 48 dB (A), Actuator Not Loaded.
• Duty Cycle, Max 10% Or 2 Minutes Continuous Use Followed By 18
• Minutes Not In Use.

Option:

Standard Stroke, 25-800 Mm, Can Design As Customer’s Requirement.

Free Load Speed, 6.5mm-45mm/s

Rated Load Speed, 4.5mm-40mm/s



Application

This Power Recliner Lift Chair Linear Actuator Motor Will Open And Close The Lift Mechanism Of Power Recliner Or Lift Chair.

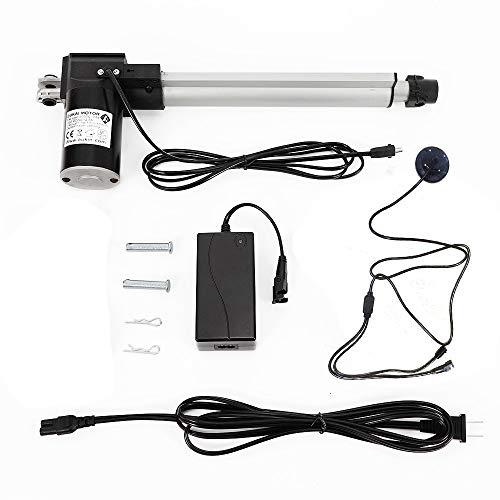

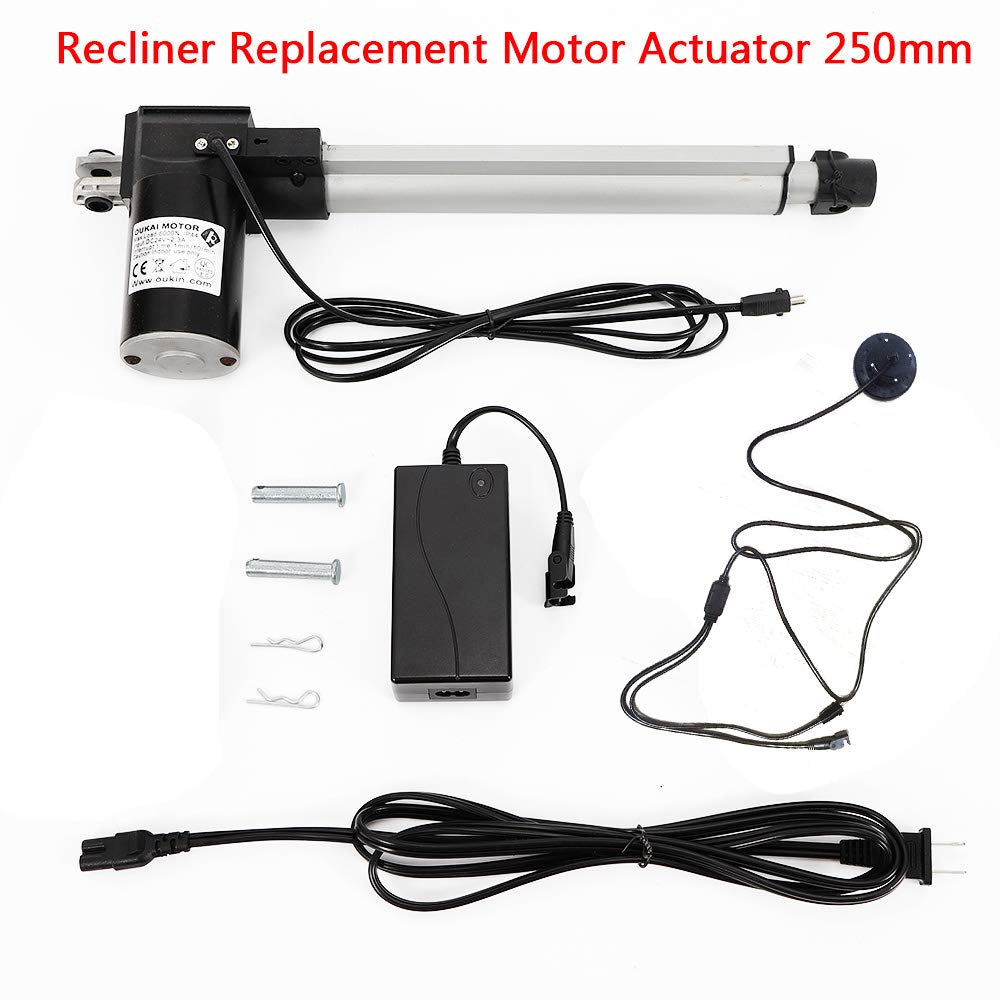

Packages:

1 x Recliner Replacement Motor Actuator

1 x 8-Suffix AC Line

1 x DC Line

1 x Power Adapter

1 x Embedded Hand Controller

2 x Pins

2 x Cotter Pins

ProductSiteLaunchDate : 2024-11-13T08:20:59.267Z
RegulatoryComplianceCertification : RSDOS.0565GA-006
Size : 24V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
