Specification
AgeRangeDescription : adult
Brand : NDNCZDHC
BulletPoint : Linear Motion Actuators
BulletPoint1 : Limit Switch Protection: Linear motion actuators are equipped with a limit switch. When the telescopic rod reaches its end or top position, the actuators automatically halt, safeguarding the motor from burnout.
BulletPoint2 : Closed Box Construction: The components of linear motion actuators feature a closed box design. This design cuts down on noise and lengthens the motor's lifespan.
BulletPoint3 : Alternative Putter Option: The motor electric putter of linear motion actuators serves as a viable substitute for hydraulic and pneumatic putters.
BulletPoint4 : Computer - Controllable Operation: Linear motion actuators can be controlled by a computer. This allows for convenient automation implementation and cuts down on energy use.
BulletPoint5 : Nylon Gear Utility: With an internal nylon gear structure, linear motion actuators find applications in ships, automobiles, industrial machinery, and for window operations.
Color : #011
Department : unisex-adult
ExternallyAssignedProductIdentifier : 7350087503189
IncludedComponents : No

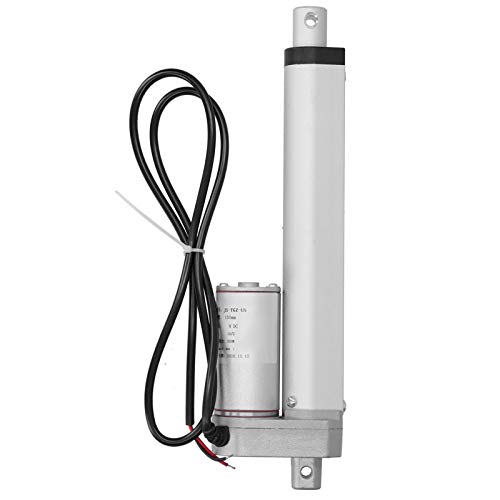

ItemName : NDNCZDHC JSTGZU5 Linear Motion Actuators 150mm Reciprocating Linear Actuator 300n Load Capacity Linear Actuator for Ships, Automobiles (24VDC)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 28 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
Manufacturer : NDNCZDHC
Material : iron
ModelName : NDNCZDHC8gv4w1faz5-12
ModelNumber : NDNCZDHC8gv4w1faz5-12
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : NDNCZDHC8gv4w1faz5-12
ProductDescription : Item Type: Motor Electric Putter
Motor Power: 30W

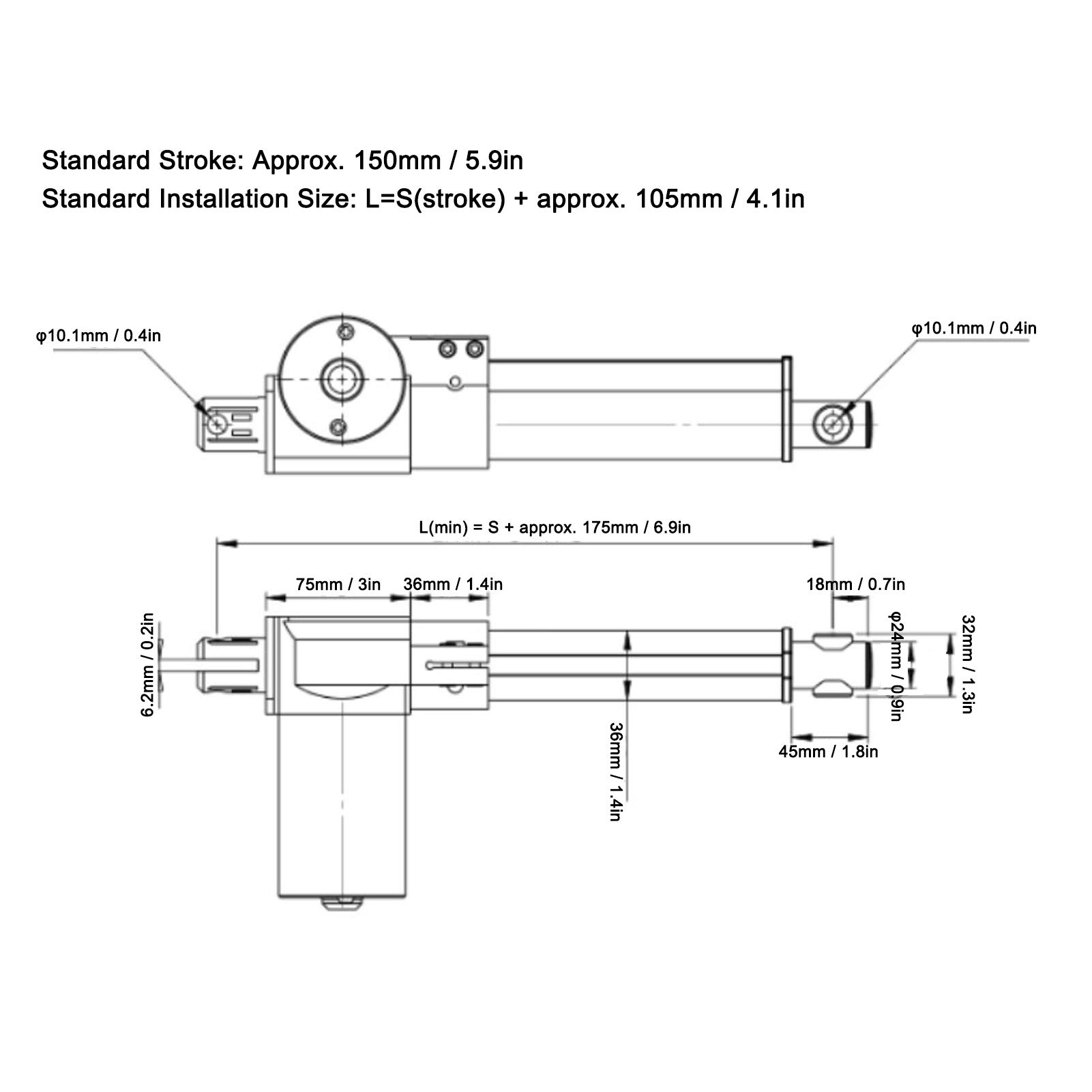

Standard Stroke: Approx. 150mm / 5.9in
Standard Installation Size: L=S(stroke) + approx. 105mm / 4.1in
Load Capacity: 300N (30kg load)
No-Load Speed: 10mm/s
Work Efficiency: 10%
Ambient Temperature: -5℃ ~ +50℃
Protection Level: IP45
The built-in limit switch is not adjustable after leaving the factory
Low noise design, DBThere is a nylon gear structure inside
Uses: Boats, automobiles, industrial machinery, automobiles, window
Size: Approx. 6.2mm / 0.2in
75mm / 3in
36mm / 1.4in
18mm / 0.7in
45mm / 1.8in
32mm / 1.3in
L(min) = S + approx. 175mm / 6.9in
Diameter: Approx. 10.1mm / 0.4in
36mm / 1.4in
24mm / 0.9in
How to use:
The putter cannot be overloaded. Overloading will affect the service life of the motor. The thrust should be selected higher than its own thrust
DC putter motor uses positive and negative pole conversion, + extend, - retract
The putter moves in a straight line
The upper and lower holes of the putter are for installation

Package List：
1 x Motor Electric Putter1 x User Manual

Note:
The inner nylon gear should not be overloaded.

ProductSiteLaunchDate : 2025-05-15T10:47:21.287Z
Size : 24VDC
Style : fashion
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
