Specification
Brand : MAOPINER

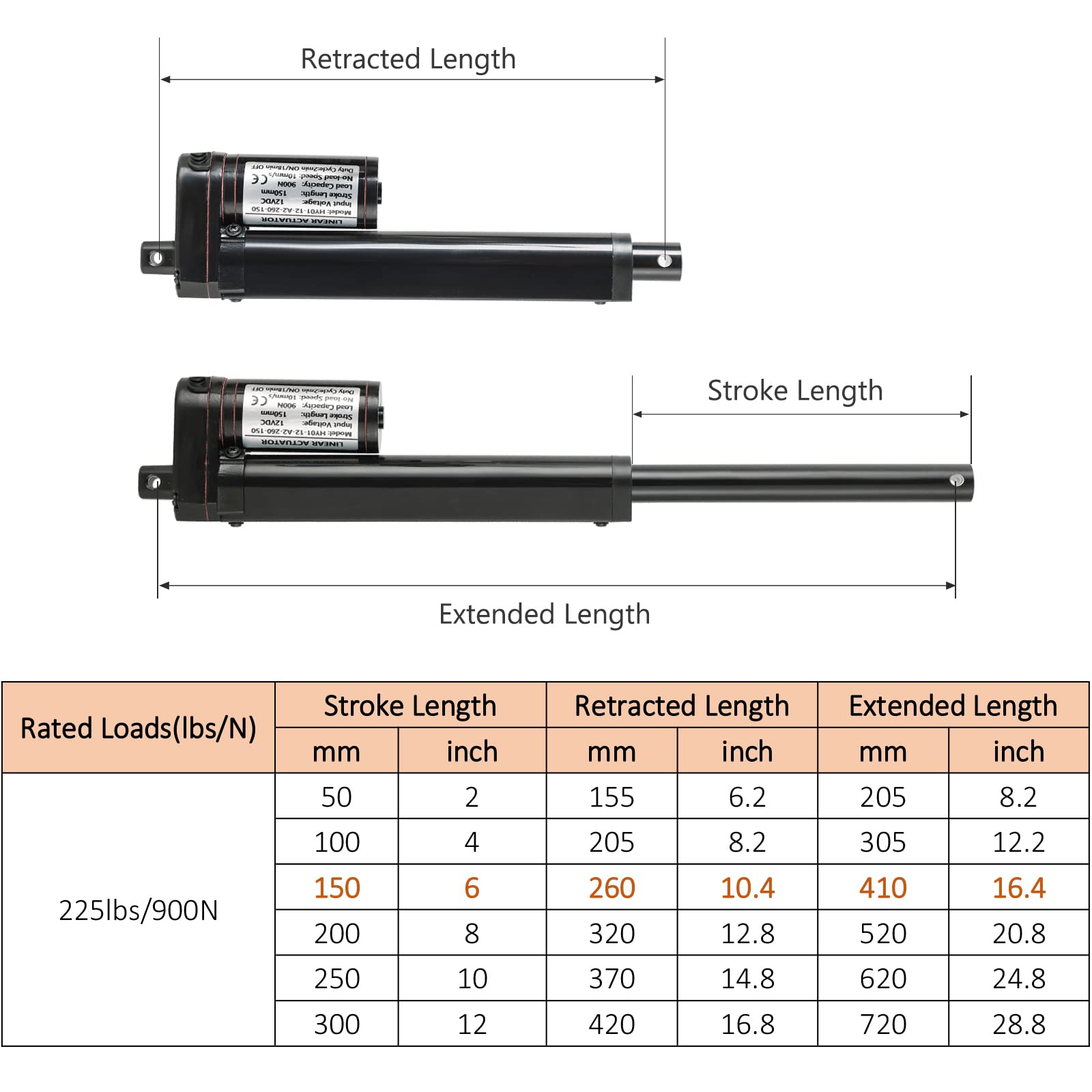

BulletPoint1 : 12V Linear Actuator Specification: Stroke length: 150mm(6"); Retracted length: 260mm(10.4"); Extended Length: 410mm(16.4"); Travel speed: 0.39 inches/sec (10 mm/s); Maximum current draw: 3Amps; Maximum Load: 202lbs(900N).
BulletPoint2 : Premium Quality: The stroke linear actuator is made of high quality aluminum alloy material, sturdy enough and with fashion look. High performance motor with built-in high-quality limit switch, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use.
BulletPoint3 : Low Noise: The linear actuator controller motor adopts a low noise design, noise level below 50 dB, suitable for hospital and massage.
BulletPoint4 : Wide Application: The linear motion actuators are commonly used in the automotive, medical devices, and engineering industries, such as massage sofas, reclining chairs, lift tables, TV lifter, and electric window openers.

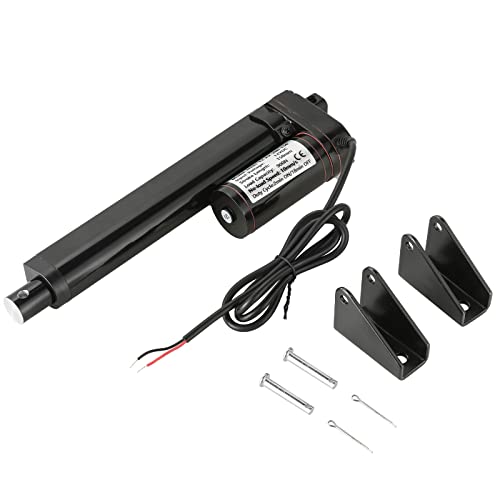

BulletPoint5 : Package Included: 1 x 12V 6 Inch Linear Actuator, 2 x mounting brackets.
Color : Black
ExternallyAssignedProductIdentifier1 : 0789091756323
ExternallyAssignedProductIdentifier2 : 789091756323
ExternallyAssignedProductIdentifier3 : 00711005826204
IncludedComponents : linear actuator
ItemName : MAOPINER 6" DC12V Stroke Linear Actuator with Mounting Bracket, 900N(202lbs) Maximum Lift 10mm/s for Recliner TV Table Lift Massage Bed Electric Sofa Home Automation Linear Actuator (1, 6inch/ 150 mm)
ItemPackageDimensions_Height : 2.13 inches
ItemPackageDimensions_Length : 11.7 inches
ItemPackageDimensions_Width : 3.7 inches
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
LoadCapacity : 50.00 lbs
Manufacturer : MAOPINER
Material : Aluminum
ModelNumber : PA-14-18-50-24VDC
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : CC324-1
ProductDescription :
Features:



All the stroke linear actuator have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 10%. It means that your actuator needs 18 minutes to rest for every 2 minutes of work. If the actuator keeps working for long time, the motor is easily burnt out.
The linear actuators are widely used in industrial machinery such as engineering vehicle, electric lifting platform, CNC machine tool, Manipulator etc.



Specifications:


Color: Silver
Material: Aluminum Alloy
Input Voltage: DC 12V
Rated Current: 3Amp
Rated Load: 900N
Duty Circle: 10%
Travel Speed: 10mm/s
Protection Class: IP54
Limit Switch: Built-in



How To Install Linear Motion Actuators


1. Prepare to connect the two wires of the stroke linear actuator to a 12 volt battery.
2. Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3. To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch.
4. Your linear actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5. The actuator has pre-installed inner limit switch, it cannot be adjustable.
6. The 12 Volt actuator comes with mounting brackets.



ProductSiteLaunchDate : 2023-03-24T06:58:47.990Z
Size : 6inch/ 150 mm
Style : Heavy duty 24V
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 23150000
