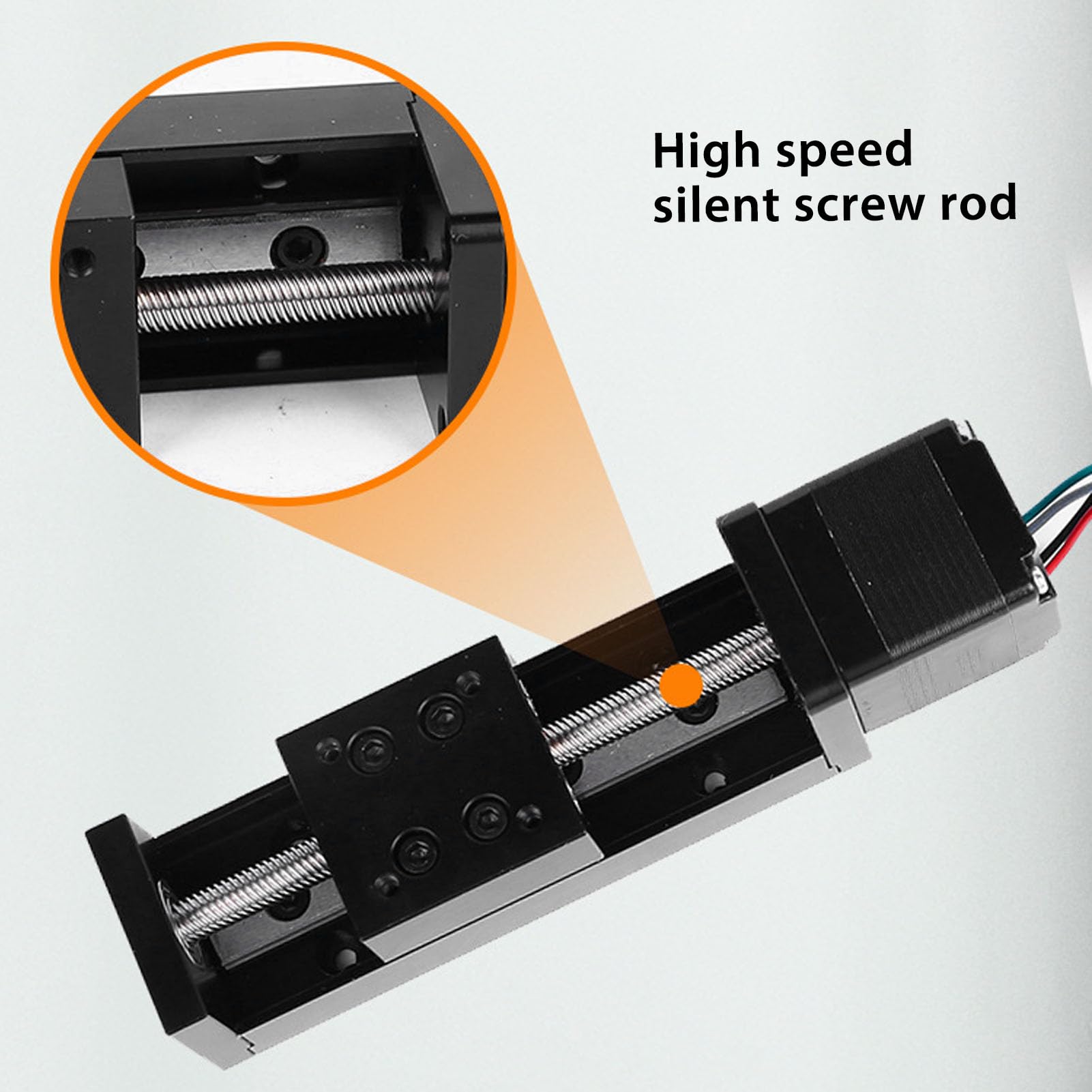

Linear Rail, Linear Stage Actuator with T Screw Rod for DIY CNC Router Milling Machine, Mini Guide Slide Actuator 28 Stepper Motor 100mm Stroke DIY CNC Router Parts X Y Z Stage

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 7500/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Generic
BulletPoint : 1
BulletPoint1 : FLEXIBLE AND VERSATILE: The sliding table can be composed of multi axes use, such as horizontal cross, gantry, three axes, four axes, etc., very flexible and convenient
BulletPoint2 : TECHNICAL PARAMETERS: Linear slide stage actuator effective travel for 100mm, step angle for 1.8 degrees, diameter 6mm, helical pitch 1mm, pitch 1mm(guide screw can move 1mm a circle)
BulletPoint3 : LOW NOISE MONORAIL: Linear slide adopt single guide design, bring stable operation, low noise, suitable for X, Y and Z axes, useful and practical
BulletPoint4 : STABLE METAL STRUCTURE: The linear motion table is made of excellent alloy material with a thickened bottom plate to ensure stability during operation
BulletPoint5 : ACCURATE AND EFFICIENT: The slide table has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability
Color : #911
IncludedComponents : No
ItemName : Linear Rail, Linear Stage Actuator with T Screw Rod for DIY CNC Router Milling Machine, Mini Guide Slide Actuator 28 Stepper Motor 100mm Stroke DIY CNC Router Parts X Y Z Stage
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 29 centimeters
ItemPackageDimensions_Width : 4 centimeters
ItemTypeKeyword : linear-motion-actuators
Manufacturer : Generic
ModelName : Genericupzf38ms94
ModelNumber : Genericupzf38ms94
NumberOfItems : 1
PartNumber : Genericupzf38ms94
ProductDescription : 1. FLEXIBLE AND VERSATILE: The sliding table can be composed of multi axes use, such as horizontal cross, gantry, three axes, four axes, etc., very flexible and convenient
2. TECHNICAL PARAMETERS: Linear slide stage actuator effective travel for 100mm, step angle for 1.8 degrees, diameter 6mm, helical pitch 1mm, pitch 1mm(guide screw can move 1mm a circle)
3. LOW NOISE MONORAIL: Linear slide adopt single guide design, bring stable operation, low noise, suitable for X, Y and Z axes, useful and practical
4. STABLE METAL STRUCTURE: The linear motion table is made of excellent alloy material with a thickened bottom plate to ensure stability during operation
5. ACCURATE AND EFFICIENT: The slide table has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability
6. WIDE APPLICATION: Mini linear rail guide slide actuator is widely used in DIY CNC milling machine, inspection equipment, optical measurement, fine tuning displacement, mechanical positioning and so on

Specification:
Item Type: Mini Linear Rail Guide Slide Actuator
Material: Aluminium alloy
Effective Travel(distance that slider can move on sliding table): Approx. 100mm / 3.94in
Screw Rod Diameter: Approx. 6mm / 0.24in
Helical Pitch(distance that slider move on screw rod when motor turn around): Approx. 1mm / 0.04in
Screw Rod Accuracy: ±0.01mm
Load: Horizontal: ≤5KG; Vertical: ≤1KG
Positioning Accuracy: ±0.1mm
Holding Torsion: 6N.cm
Current: 0.6A
: 5.5Ω
Inductance: 3.2MH
Speed: 0-120mm/s
Step Angle: 1.8 Degrees

How to Use:
Install and use directly.

packing list:
1 x Mini Linear Rail Guide Slide Actuator
ProductSiteLaunchDate : 2024-08-28T11:06:13.385Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 31162700
