Specification
Brand : Homend
BulletPoint1 : ★ Specification: Stroke length = 500mm(20"); Retracted length = 675mm(26.6"); Extended Length=1125mm(44.3") ； Input: DC12V-2.3A; Maximum Load = 6000N(1320LBS); Stable performance, fast to work with 4.5mm/s speed(load), quicker than most products on market.
BulletPoint2 : ★ Material: High quality aluminum alloy material, sturdy enough and with fashion look, High performance motor ,Built-in high quality limit switch
BulletPoint3 : ★DC 12V electric motor, this linear actuator can provide max.6000N pushing force and 4000N pulling force, easily to lift up or down beds, industrial equipment.
BulletPoint4 : ★IP44 rated: (Indoor Use Only). Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
BulletPoint5 : ★Low noise: - This linear actuator works with Max.48db sound, quiet on working, not to create annoying sound.
Color : Silver
ConnectorType : Screw
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier1 : 733810536864
ExternallyAssignedProductIdentifier2 : 0733810536864
Hazmat1 : LITHIUM METAL BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumMetalBatteryInEquipment
Hazmat11 : DE_SmallLithiumMetalBatteryInEquipment
Hazmat12 : EG_SmallLithiumMetalBatteryInEquipment
Hazmat13 : ES_SmallLithiumMetalBatteryInEquipment
Hazmat14 : FR_SmallLithiumMetalBatteryInEquipment
Hazmat15 : GB_SmallLithiumMetalBatteryInEquipment
Hazmat16 : IN_SmallLithiumMetalBatteryInEquipment
Hazmat17 : IT_SmallLithiumMetalBatteryInEquipment
Hazmat18 : JP_SmallLithiumMetalBatteryInEquipment
Hazmat19 : MX_SmallLithiumMetalBatteryInEquipment
Hazmat2 : UN3091
Hazmat20 : NL_SmallLithiumMetalBatteryInEquipment
Hazmat21 : PL_SmallLithiumMetalBatteryInEquipment
Hazmat22 : SA_SmallLithiumMetalBatteryInEquipment
Hazmat23 : SE_SmallLithiumMetalBatteryInEquipment
Hazmat24 : SG_SmallLithiumMetalBatteryInEquipment
Hazmat25 : TR_SmallLithiumMetalBatteryInEquipment
Hazmat26 : US_SmallLithiumMetalBatteryInEquipment
Hazmat27 : ZA_SmallLithiumMetalBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumMetalBatteryInEquipment
Hazmat6 : AU_SmallLithiumMetalBatteryInEquipment
Hazmat7 : BE_SmallLithiumMetalBatteryInEquipment
Hazmat8 : BR_SmallLithiumMetalBatteryInEquipment
Hazmat9 : CA_SmallLithiumMetalBatteryInEquipment

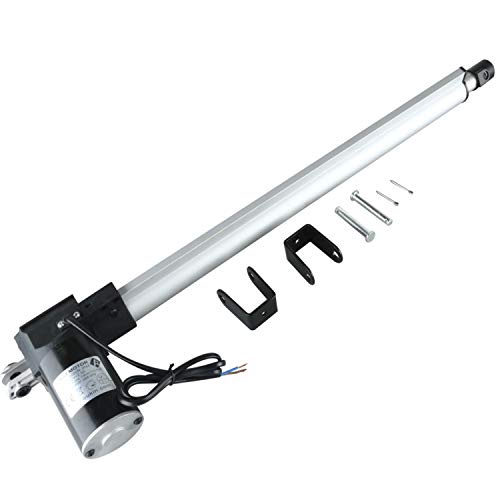

ItemName : Homend DC 12V 20 Inch Stroke Linear Actuator with Mounting Bracket 500MM 6000N/1320LB Maximum Load for Recliner TV Table Lift Massage Bed Electric Sofa Linear Actuator
ItemPackageDimensions_Height : 77.8 centimeters
ItemPackageDimensions_Length : 11.5 centimeters
ItemPackageDimensions_Width : 17 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
LoadCapacity : 1320.00 pounds
Manufacturer : Homend
Material : Carbon Steel
ModelNumber : 188N-100-MS
NumberOfItems : 1
PackageLevel : unit
PartNumber : SZ8741
ProductDescription : 6000N/1320LB Linear Actuator 20" Stroke DC 12V Electric Motor :
Kindly Tips:

IP44; Indoor Use Only


Specifications:


Material: Aluminum Alloy(24mm)
Input: DC 12V
Stroke Length: 500mm/20"
Min. Retract Length: 675mm(26.6")
Max. Extend Length: 1125mm(44.3")
Max. Pushing Force: 6000N
Max. Pulling Force: 4000N
Travel Speed: 4.5mm/s speed(load)
Limit Switch: Built-in
Protection Class: IP44
Noise Level: 48db
Input: DC12V-2.3A

How To Use:

1. Prepare to connect the two wires of the actuator to a 12 volt battery
2.Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch
4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5.The actuator has pre-installed inner limit switch, it cannot be adjustable.

How to protect your actuator:

1. Please use the 12V DC power adapter
2. Please do not exceed the rated load
3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.
Widly Use:


Furniture and home application
Hospitals and healthcare
Industrial and construction application
Agricultural machinery

Package Included:


1 X 20" Linear Actuator
2 X Mounting Bracket
1 X Screw Set

ProductSiteLaunchDate : 2019-05-20T07:00:00.000Z
Size : 4 inch
Style : with Switch (Momentary)
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
Voltage : 12 volts
