Specification
AgeRangeDescription : adult
Brand : HYYKJ-US
BulletPoint : linear guide rail
BulletPoint1 : 【POWER RECLINER MOTOR ACTUATOR】This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Connects to motor handset hand control via 5 pin style connector, and connects to the power transformer via the standard 2 pin style connector.
BulletPoint2 : 【SMALL INSTALLATION DIMENSIONS】Eegant and compact design with small installation dimensions. Minimum installation size: The distance between the push holes and the two holes before and after the return of the putter: L = Stroke + 175mm(6.9''),The distance between the push rod and the two holes before and after is extended to: L = 2 x Stroke +175mm(6.9'').
BulletPoint3 : 【MAIN PARAMETERS】24V DC permanent magnet motor drive; 250mm / 9.8'' stroke length; Thrust up to 1000N in push and up to 1000N in pull; Built-in limit switches (not adjustable); Aluminium outer tube: Ø30mm / 1.2''; Aluminium inner tube: Ø24mm / 0.9''; Unextended dimensions: 9.8'' + 6.9'' + 9.8'' = 16.7''; Extended size: 9.8'' + 6.9'' + 9.8'' = 26.6''; Package size: 22.6'' x 8.5'' x 4''; Package weight: 6.6lbs.
BulletPoint4 : 【OPTION】Standard stroke: 25mm-800mm (1''-31.5''), can design as customer's requirement; Free load speed: 6.5mm/s-45mm/s (0.26''/s-1.77''/s); Rated load speed: 4.5mm/s-40mm/s (0.18''/s-1.6''/s).

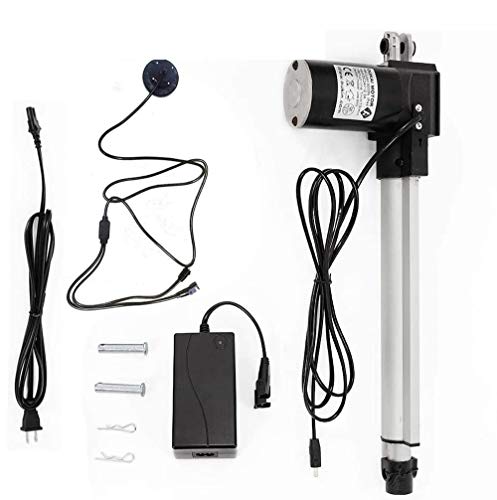

BulletPoint5 : 【PACKAGE CONTENTS】1 x Recliner Replacement Motor Actuator; 1 x 8-suffix AC Line; 1 x DC Line; 1 x Power Adapter; 1 x Embedded Hand Controller; 2 x Pins.
Color : 10" Stroke 225 LB Load
ConnectorType : Plug In
CurrentRating : 3 amps
ExternallyAssignedProductIdentifier : 7383324034337
ExternallyAssignedProductIdentifier1 : 796862435776
ExternallyAssignedProductIdentifier2 : 0796862435776
FinishType : Brushed
IncludedComponents : 1 x Recliner Replacement Motor Actuator
ItemName : Electric Recliner Motor Actuator Replacement Kit 24V DC Power Recliner Motor Linear Actuator 250mm Stroke Length for Electric Sofa Massage Lift Chair Reclining Motor
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 22.6 inches
ItemPackageDimensions_Width : 8.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
LoadCapacity : 250.00 pounds
Manufacturer : LianDu-US
Material : Aluminum
ModelName : ZHHWKNBD
ModelNumber : ZHHWKNBD
NumberOfBoxes : 1
NumberOfItems : 1
OperatingVoltage : 220 volts
OperationMode : OFF-NONE-ON
PartNumber : KW-TXSG-T12P2L4-L1250-HTYLM
Pattern : Solid
ProductDescription :

Specifications:

Stroke length: 250mm / 9.8''

Permanent magnet 24V DC motor drive

Maximum push / pull: 100kg / 100kg (220lbs / 220lbs)

Minimum installation size:

The distance between the push holes and the two holes before and after the return of the putter: L = Stroke + 175mm(6.9'')

The distance between the push rod and the two holes before and after is extended to: L = 2 x Stroke +175mm(6.9'')

No load speed: maximum 40mm(1.6'') / Stroke

Rated load rate: 5mm / Stroke(100kg) - 40mm / Stroke(30kg), that is 0.2''/ Stroke(220lbs) - 1.6'' / Stroke(66lbs)

Ambient temperature: -5℃ + 50℃ (-41°F + 122°F)

Standard protection level: IP44

Unextended dimensions: 250mm + 175mm = 425mm (9.8'' + 6.9'' + 9.8'' = 16.7'')

Extended size: 250mm + 175mm + 250mm = 675mm (9.8'' + 6.9'' + 9.8'' = 26.6'')

Package size: 57.5cm x 21.5cm x 10.5cm (22.6'' x 8.5'' x 4'')

Package weight: 3kg (6.6lbs)

Features:

24V DC permanent magnet motor

Thrust up to 1000N in push and up to 1000N in pull

Elegant and compact design with small installation dimensions

Built-in limit switches (not adjustable)

Aluminium outer tube: Ø30mm / 1.2''

Aluminium inner tube: Ø24mm / 0.9''

Steel back fixture

Noise level: 48dB(A), actuator not loaded

Duty cycle: Max 10% or 2 minutes continuous use followed by 18 minutes not in use

Option:

Standard stroke: 25mm-800mm (1''-31.5''), can design as customer's requirement

Free load speed: 6.5mm/s-45mm/s (0.26''/s-1.77''/s)

Rated load speed: 4.5mm/s-40mm/s (0.18''/s-1.6''/s)

ProductSiteLaunchDate : 2020-05-31T09:40:04.586Z
Size : 17" x 6" x 4"
Style : 24V Linear Electric Actuator 10" Stroke Brushed DC Motor 250 lbs
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111500
