Specification
AutoPartPosition : inner
Brand : Generic
BulletPoint1 : Tech Parameters-->Max Push Load: 1500N / 330lbs; Stroke Length:16"/ 400mm; Input Voltage: 12V DC; No-load Speed: 5mm /s; Duty Cycle: 3min ON/17min OFF; Built-in limit switch but not adjustable; Minimum Installation Distance: Stroke Length+105mm
BulletPoint2 : Stable & Reliable-->It moves at 5mm/s quietly (< 50dB), ideal for hospital and massage, with safety lock & free halt design
BulletPoint3 : Easy to Install and Use-->This Electric Linear Actuator Kit included 2 x Linear Actuator(16inch), 1 x Remote Controller(1 Receiver+1 Transmitter), 1x AC to DC12V 5A Power Supply，1 x Dual Adapter Cable(80cm/31inch)，4 x Heavy duty steel mounting brackets with fasteners,and other required accessories
BulletPoint4 : Premium Material&Craft-->Made of Aluminum alloy #6061 housing, IP65 rated protection sealed against dust, water, and corrosion suitable for outdoors use
BulletPoint5 : Universal & Practical-->Widely applicable to industrial machinery, such as engineering vehicle, electric lifting platform, CNC machine tool, manipulator, etc., especially suitable for moving and adjusting patient shifter, electric wheelchair, electric nursing bed, esthetic dental chair, etc
IncludedComponents : Remote Control
ItemName : 2Packs 16 Inch Linear Actuator Kit 12V 1500N/330lbs Maximum Lift with Remote Controller&Mounting Brackets& Dual Adapter Cable for Lifting&Pushing
ItemPackageDimensions_Height : 81.28 centimeters
ItemPackageDimensions_Length : 9.652 centimeters
ItemPackageDimensions_Width : 10.16 centimeters
ItemTypeKeyword : linear-motion-actuators
Manufacturer : Generic
Material : Aluminum
ModelNumber : 660lbs/12v
NumberOfItems : 1
PartNumber : HY01-2Packs
ProductDescription :

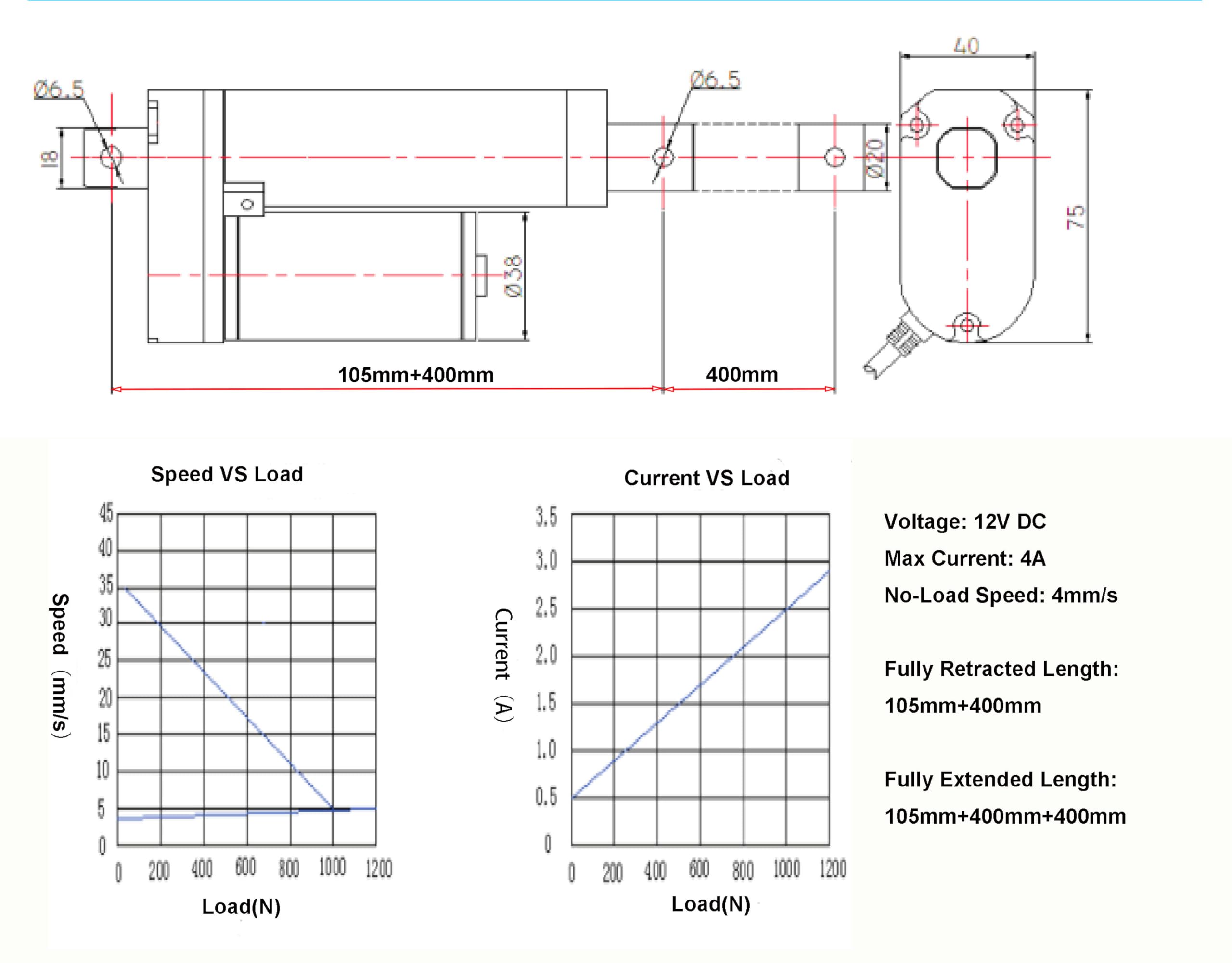

Specifications:

-Stroke Length:16"/ 400mm

-Input Voltage: 12V DC

-Max Push Load: 1500N / 330lbs

-Travel Speed: 4mm/s(No Load);

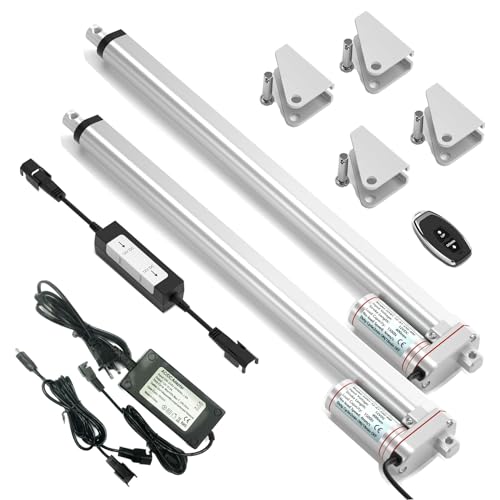

Package List:
2 x 16 inch Linear Actuator
1 x Remote Control Receiver
1 x Remote Control Transmitter
1 x Dual Adapter Cable
1 x AC to DC12V/5A Power Supply
4 x Mounting Bracket Kit

How to install

1.Prepare to connect the two wires of the actuator to a 12 volt battery or DC12V power supply.

2.Red wire to the positive terminal and Black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.

3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch.

4.Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.

5.The actuator has pre-installed inner limit switch, it cannot be adjustable.

How to Maintain: 1.Please use the 12V DC power adapter. 2.The actual load does not exceed the rated load. 3.All the actuators have duty cycle, they are unable to work all the time without stop. 4.The actuator is not completely waterproof.
