Specification
Brand : xinhuangduo
BulletPoint1 : AUTOMATION EQUIPMENT: Robotics, agriculture, cabinets, home automation equipment.The TGA-75 installation and integration steps are simple and can be used for woodworking, home improvement and AV projects etc.
BulletPoint2 : GREAT ERGONOMIC EXPERIENCE:It can be used for massage lounge chair, electric wheelchair, hydraulic bed, massage table, electric sofa, etc. Hospitals, beauty salons and nursing homes all need this equipment.With this device, you can adjust a bed, work table, or other object that needs to be adjusted to the height you want in a few seconds.
BulletPoint3 : FEATURES:①The electric push rod is driven by motor, which can work only by wiring.②The whole set of electric push rod is simple and reliable, without the use of hydraulic and air sources.③Electric putter only consumes electricity when working, which is economical.④Electric push rod is simple and compact, safe and reliable sealing structure, no oil leakage, can keep a clean environment.
BulletPoint4 : DIVERSITY OF SPECIFICATIONS:The linear actuator makes a round trip within a certain range of travel. The standard travel of the general linear actuator is 100, 175, 200, 275, 300, 375 and 400mm. The special travel can also be customized according to the requirements of different application conditions.Different thrust can be designed according to different application loads.
BulletPoint5 : PURCHASE PRECAUTIONS:Linear actuator is used with other equipment, which involves the problem of installation size. When choosing linear actuator, its size should be designed into the equipment to be used together, so as to better play the function of linear actuator.
Color : Silver
ConnectivityProtocol : X-10
ConnectorType : Screws
ControlMethod : remote
ExternallyAssignedProductIdentifier : 7598662997415
ExternallyAssignedProductIdentifier1 : 736561642976
ExternallyAssignedProductIdentifier2 : 0736561642976
InternationalProtectionRating1 : IP60
InternationalProtectionRating2 : IP43

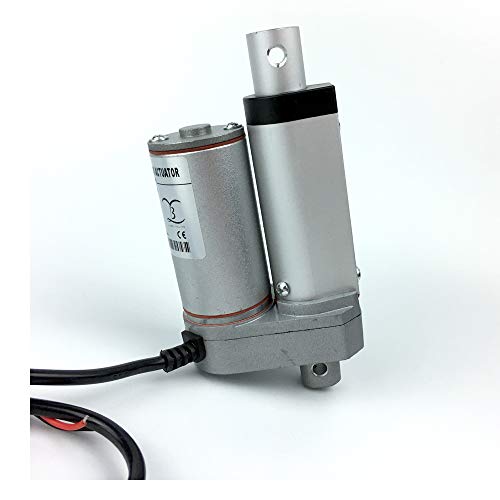

ItemName : 24v 1 Inch Stroke Linear Actuator 20lbs90NMaximum Lift with Mounting Brackets 100mm/s
ItemPackageDimensions_Height : 1.97 inches
ItemPackageDimensions_Length : 13.78 inches
ItemPackageDimensions_Width : 1.97 inches
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
LoadCapacity : 20 pound
Manufacturer : XINHUANGDUO
Material : Aluminum
ModelNumber : S200-75-12-70
MountingType : Surface Mount
NumberOfItems : 1
NumberOfPositions : 3
OperatingVoltage : 12 volts
OperationMode : Automatic
PartNumber : 25-24v-100mm/s
ProductDescription :

1. Drive voltage: 12VDC  or 24VDC (it can choose)
2. Maximum Thrust: 90KG/900N
3. Minimum installation size (fully retracted around in the middle of the distance between the two holes):      L1= Stroke+105 mm
4. Maximum installation size (fully extended around the middle of the distance of the two holes):                     L = 2xS(stroke)+105mm
5. Ambient temperature :-26  to +65 degree
6. Protection class: IP 54
7. Built-in limit switches(When completed stroke, linear actuator automatically stops!)
8. Low noise design, noise levels below 42 db
9. Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest.            If lower load can extend work time.
10. Maximum self-locking force 2300N

ProductSiteLaunchDate : 2019-12-06T06:40:50.203Z
Size : 24V
Style : 100MM/S 90N
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SwitchType1 : Limit Switch
SwitchType2 : Temperature Switch
UnitCount : 1
UnspscCode : 31251511
UpperTemperatureRating : 40 degrees_celsius
