Specification
Brand : HJCMOONB
BulletPoint : Bearings
BulletPoint1 : Bearings
BulletPoint2 : Model:LMTP30LUU
BulletPoint3 : Number of Ball Rows: 6
BulletPoint4 : Inner diameter: 30 mm; Outside diameter: 45 mm; Length: 64 mm
BulletPoint5 : Dynamic Cr: 160 kgf; Static Cor: 280 kgf
BulletPoint6 : Quantity: 1 Lot = 2 PCS
Color : One Color
ExternallyAssignedProductIdentifier : 9029027231076

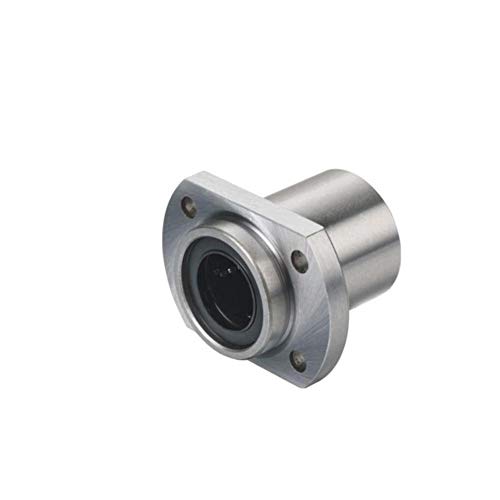

ItemName : HJCMOONB Linear Bearing LMHP30LUU Ploit Flange Type Linear Bearings Linear Bearing LMHP30 LUU 304564mm Linear Ball Bearings
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-ball-bearings
Manufacturer : HJCMOONB
ModelNumber : HJCMOONB
NumberOfItems : 1
PartNumber : HJCMOONB
ProductDescription : Bearings

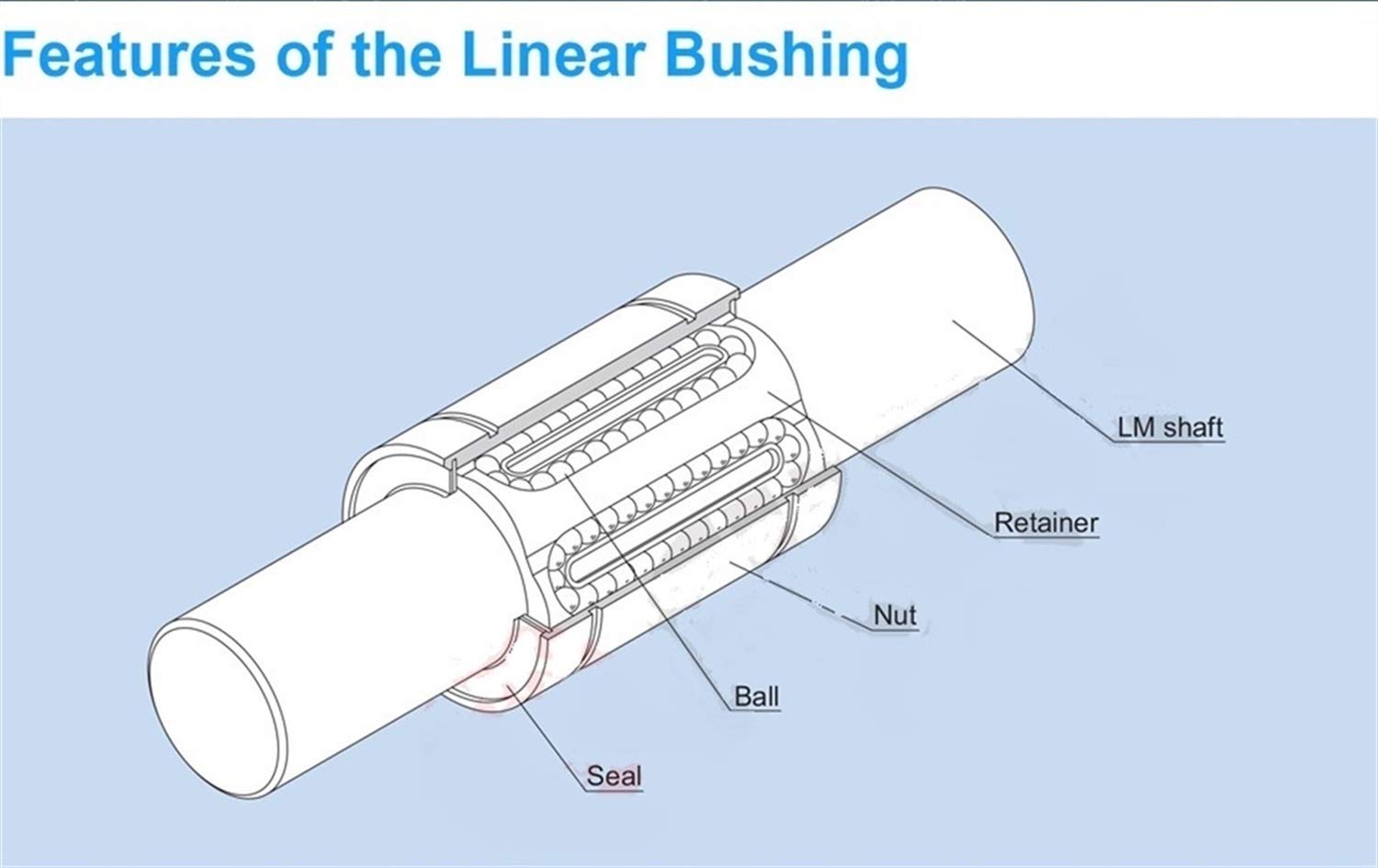

Structure and Features
Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infinite straight motion. The balls in the loaded area of the nut are in point contact with the LM shaft. This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load.
Model Number: LMHP30LUU
Torque Capacity: 30*45*64mm
Surface Roughness: Ra 0.05
Material: 52100 Chrome Steel
Coatings: Antirust oil
Structure: Linear Motion Bearing
Application
The nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated.
The Linear Bushing is used in a broad array of applications such as slide units of precision equip-ment including OA equipment and peripherals measuring instruments automatic recorders and dig-ital 3D measuring instruments industrial machines including multi-spindle drilling machine punching press tool grinder automatic gas cutting apparatus printing machine card selector and food pack-ing machine.
Interchangeability
Since the dimensional tolerances of the Linear Bush's components are standardized they are in changeable. The LM shaft is machined through cylindrical grinding which can easily be performed and it allows highly accurate fitting clearance to be achieved.
Highly Accurate Retainer Plate
Since the retainer which guides three to eight rows of balls is integrally molded it is capable of ac-curately guiding the balls in the traveling direction and achieving stable running accuracy.Small-diameter types use integrally molded retainers made of synthetic resin. It reduces noise gen-erated during operation and allows for superb lubrication.
Wide Array of Types
A wide array of types are available such as standard type clearance-adjustable type open type long type and
ProductSiteLaunchDate : 2025-05-10T09:56:20.031Z
Size : One Size
UnitCount : 1
