Specification
AutomotiveFitType : universal_fit
AutoPartPosition : rear
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : AB Tools
BulletPoint1 : 7 Pin plug & Socket (N type)
BulletPoint2 : Brass pins
BulletPoint3 : durable plastic housing
BulletPoint4 : rubber seal
BulletPoint5 : standard wiring colours,
Color : White
CompatibleWithVehicleType : Trailer
CompatibleWithVehicleType1 : Trailer
CompatibleWithVehicleType2 : Car
CompatibleWithVehicleType3 : RV
CompatibleWithVehicleType4 : Tractor
CompatibleWithVehicleType5 : Truck
CompatibleWithVehicleType6 : Van
CompatibleWithVehicleType7 : Caravan
CompatibleWithVehicleType8 : Toow Truck
CompatibleWithVehicleType9 : Trailer
CustomerPackageType : Standard Packaging
ExteriorFinish : Machined
ExternallyAssignedProductIdentifier : 5056133306644
ExternallyAssignedProductIdentifier1 : 077341139614
ExternallyAssignedProductIdentifier2 : 0077341139614
ExternallyAssignedProductIdentifier3 : 00077341139614
FitType : Universal Fit
FormFactor : Strip
Hazmat1 : LITHIUM ION BATTERIES PACKED WITH EQUIPMENT
Hazmat10 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat11 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat12 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat13 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat14 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat15 : IE_SmallLithiumIonBatteryWithEquipment
Hazmat16 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat17 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat18 : JP_SmallLithiumIonBatteryWithEquipment
Hazmat19 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat21 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat22 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat23 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat24 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat25 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat26 : US_SmallLithiumIonBatteryWithEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat28 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat5 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat6 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat7 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat8 : CA_SmallLithiumIonBatteryWithEquipment
Hazmat9 : CN_SmallLithiumIonBatteryWithEquipment
IncludedComponents : (1) 4-Inch Blue/White LED 2-Color Flex Lights, 2-Pack
IsAssemblyRequired : 1

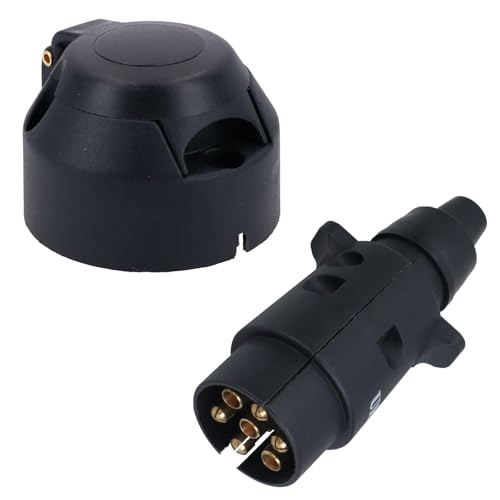

ItemName : AB Tools Tow Bar Electrics 7 pin 12v N Type Plastic Socket & Plug Trailer Lights Car Hook Up
ItemPackageDimensions_Height : 18.796 centimeters
ItemPackageDimensions_Length : 4.826 centimeters
ItemPackageDimensions_Width : 16.51 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : trailer-lighting
Manufacturer : AB Tools
Material : Brass
MeasurementSystem : Metric
ModelName : 23826
ModelNumber : 23826
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfPieces : 8
PartNumber : TR039_TR041
ProductDescription : 7 Pin Plug Specifications

This listing is for a 7 Pin plug (N type) to do the lights on a caravan or trailer.

Ideal for new builds or for replacing damaged plugs on existing trailers.

Screw connection inside the plug, easy for DIY replacement.

Brass pins in a durable plastic housing with rubber seal.

Provides connections for indicators, side lights, brake lights and fog lamp.

Also available with an aluminium case, please see our shop for this version.

Wiring Guide

PIN 1 Yellow Wire (Left Indicator)

PIN 2 Blue Wire (Fog Lamp)

PIN 3 White Wire (Earth Return)

PIN 4 Green Wire (Right Indicator)

PIN 5 Brown Wire (Right Side light)

PIN 6 Red Wire (Brake lights)

PIN 7 Black Wire (Left Side light)

This guide shows the standard wiring colours, but your trailer might not be standard.

If it is not then you should note which pin number each wire goes to before removing the old plug and simply connect the new one the same.

7 Pin Socket Specifications

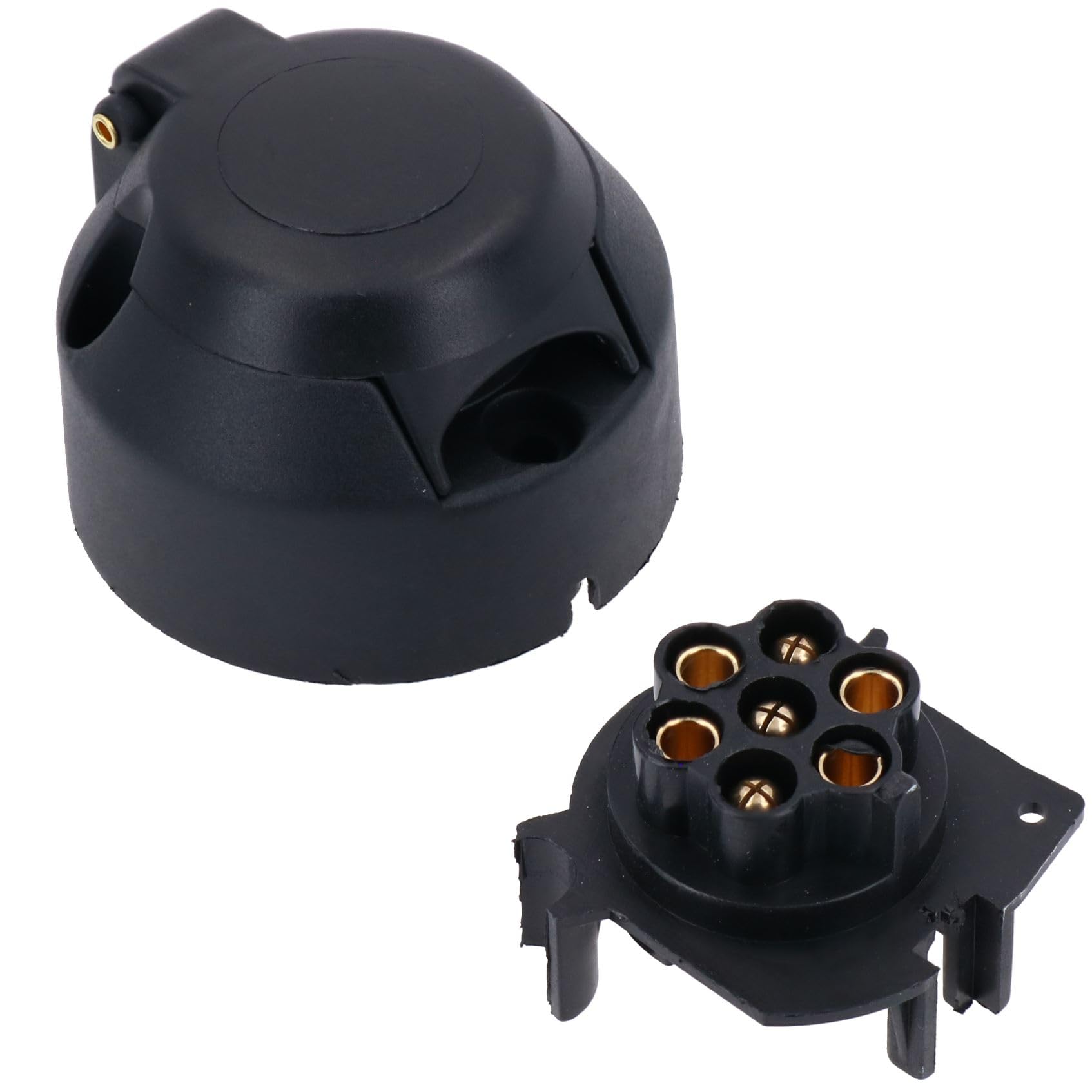

This listing is for a 7 Pin socket (N type) to power trailer or caravan lights.

Ideal for new tow bars or for replacing damaged sockets on existing cars.

Brass pins in a durable plastic housing.

Provides connections for indicators, side lights, brake lights and fog lamp.

Also available with an aluminium case, please see our shop for this version.

PIN 1 Yellow Wire (Left Indicator)

PIN 2 Blue Wire (Fog Lamp)

PIN 3 White Wire (Earth Return)

PIN 4 Green Wire (Right Indicator)

PIN 5 Brown Wire (Right Side light)

PIN 6 Red Wire (Brake lights)

PIN 7 Black Wire (Left Side light)


ProductSiteLaunchDate : 2019-02-12T16:06:13.166Z
Size : Pack of 1
SpecificUsesForProduct : car
StreetDate : 2016-03-18T00:00:01Z
Style : 12V H3-55W
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 25170000
Voltage : 12 volts
WarrantyDescription : Limited manufacturers warranty
WaterResistanceLevel : water_resistant
Wattage : 55 watts
