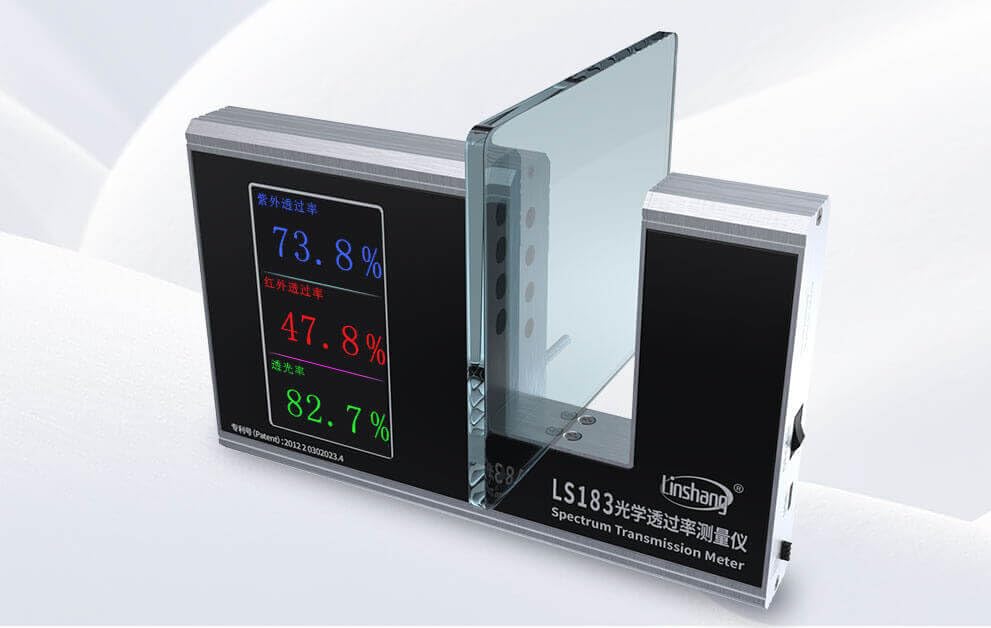

LS183 Spectrum Transmission Meter, UV IR Visible Light Transmission Meter for Large Thickness Materials

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 65400/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : HOJILA
BulletPoint : Yw-552m Portable Integrated Design Environment Light Lux Meter Illuminance Meter
BulletPoint1 : LS183 optical transmittance tester can measure ultraviolet, infrared and visible light simultaneous.
BulletPoint2 : The UV transmission meter has simple operation and fast measurement. We just need to put the measured sample into the test slot and the three test results will be displayed on the interface immediately at the same time
BulletPoint3 : Parallel optical path design ideal for measuring large thick materials
BulletPoint4 : The spectrum transmission meter has large LCD display, three different display interfaces can be switched
BulletPoint5 : The instrument has real-time dynamic self-calibration function, which automatically calibrates to 100% transmittance after powering on
BulletPoint6 : Supporting pillar in the packing makes it more convenient on the data reading
BulletPoint7 : Air Transportation : Standard timeframe is approximately 7-13 days.
ExternallyAssignedProductIdentifier : 5780414231270
IncludedComponents : Spectrum Transmission Meter
ItemName : LS183 Spectrum Transmission Meter, UV IR Visible Light Transmission Meter for Large Thickness Materials
ItemPackageDimensions_Height : 2.1 inches
ItemPackageDimensions_Length : 3.5 inches
ItemPackageDimensions_Width : 7.2 inches
ItemTypeKeyword : science-lab-photometers-and-light-meters
Manufacturer : HOJILA
ModelName : LUCKDANOon0fgtx3hm
ModelNumber : LS162A
NumberOfItems : 1
PartNumber : LS183
ProductDescription : LS183 spectrum transmission meter employing the parallel light path source. is mainly used for the optical performance test of thermal insulation coatings, single-layer glass, laminated glass (insulating glass), glass with film, PMMA, PC and other materials. It can simultaneously test the transmittance of ultraviolet, infrared and visible light. The width of the test slot is 47mm. The meter uses ultraviolet light source, infrared light source and visible light source to illuminate the tested transparent material. The sensor determines the transmittance by detecting the original light intensity emitted by the three light sources and the transmitted light intensity after the light has passed through the transparent material. The final result is expressed as a percentage.

Specifications:
UV peak wavelength: 365nm
IR peak wavelength: 940nm
Visible light peak wavelength: 380nm-760nm (conform to CIE photopic luminosity function)
Resolution: 0.1%
Measurement accuracy: ± 2%(colorless and uniform transparent materials)
Test sample thickness: < 47mm

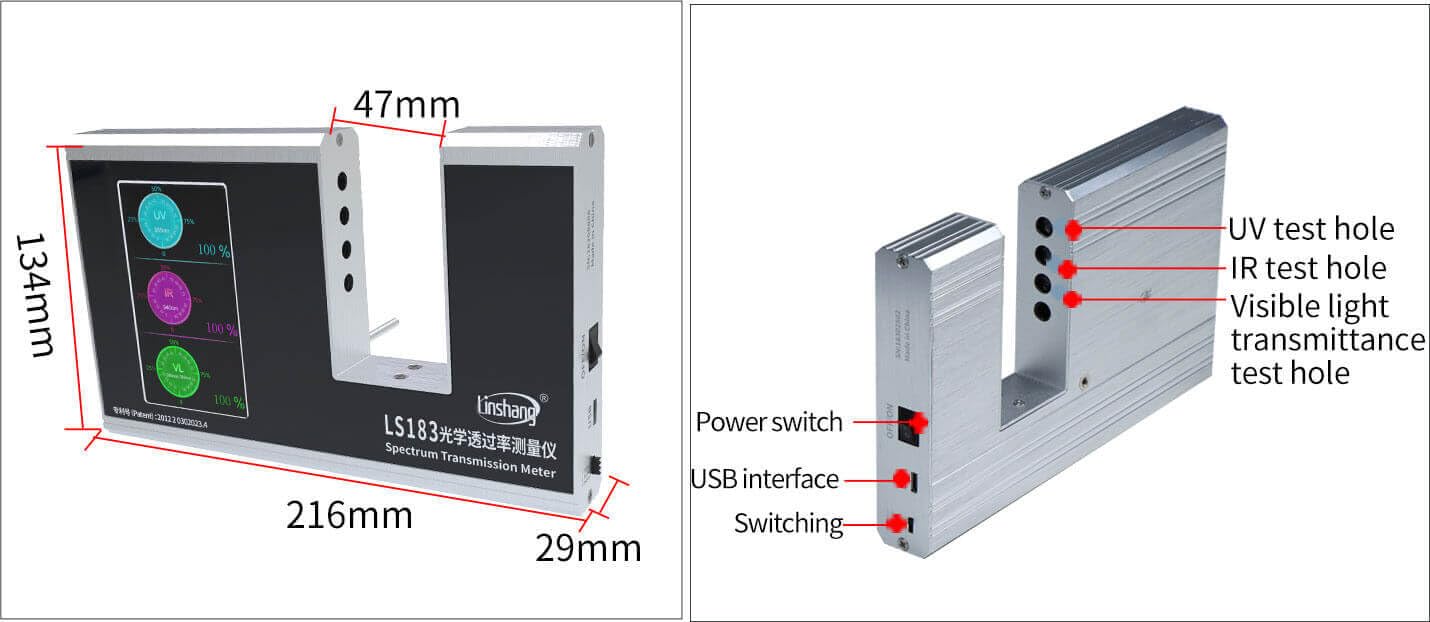

Dimension: 216 mm * 134 mm * 29 mm (L*W*H)
Test slot dimension: 47mm * 91 mm(W*H)
Weight: about 590g
Power supply: DC5V/1A

Packing List:
1 x LS183 Spectrum Transmission Meter
1 x DC5V Adapter
1 x User Manual
1 x Certificate / warranty card
1 x Support pillar

ProductSiteLaunchDate : 2024-07-31T03:44:41.241Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
