Specification
Brand : Nozue
BulletPoint : Great Product
BulletPoint1 : Strong and Durable: It is made of high-quality steel, with a painted finish, which is solid, wear-resistant, rust-proof, and corrosion-resistant, ensuring a long service life.
BulletPoint2 : Complete Accessories: In addition to the double-acting hydraulic cylinder, the package is also equipped with hoses, banjo bolts, sealing rings, and a wrench, making it convenient for your use and installation without additional configuration and purchase.
BulletPoint3 : Two-Way Design: It is equipped with a two-way check valve, which can complete retraction and extension. The valve allows free flow in one direction, and the pressure drop is relatively small. In the opposite direction, it is usually closed, and the valve can be opened only when there is pilot pressure from another oil circuit.
BulletPoint4 : Good Sealing: The piston adopts a high-quality five-component compact seal for excellent performance, and the rod adopts a standard U-cup polyurethane rod seal with inner O-ring, POM-C wear rings, and polyurethane wiper to ensure excellent sealing performance, which is helpful to solve the problems of oil evaporation, air leakage, and piston blockage.
BulletPoint5 : Compact Design: This double-acting hydraulic cylinder has a compact structure and can be used for mobile equipment with small installation space, and is also convenient for maintenance and repair.
Color : Black
CompatibleWithVehicleType : Car
ExternallyAssignedProductIdentifier1 : 757725851874
ExternallyAssignedProductIdentifier2 : 0757725851874
FitType : Universal Fit
GpsrSafetyAttestation : 1
ImportDesignation : Made in the USA
IncludedComponents : Double-acting Hydraulic Cylinder ; Hoses ;Banjo Bolts ;Sealing Rings; Wrench ; Bracket
IsAssemblyRequired : 1
ItemDisplayWeight : 2.6 pounds

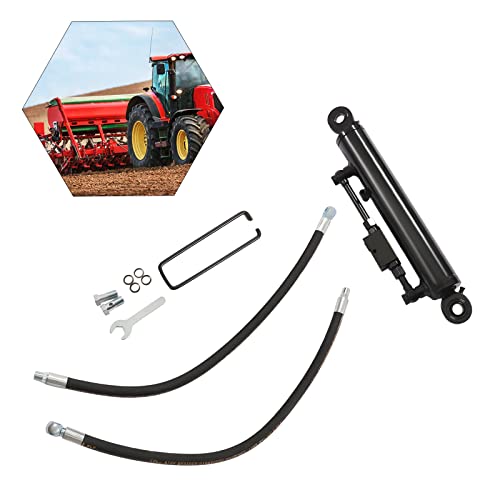

ItemName : Hydraulic Top Link Cat. 2-2 with Locking Block 19 11/16-28” with 2 x Hose
ItemPackageDimensions_Height : 21.3106 centimeters
ItemPackageDimensions_Length : 10.8966 centimeters
ItemPackageDimensions_Width : 19.1008 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-lifting-cylinders
LoadCapacity : 2.5E+4 kg
Manufacturer : SikaShop
Material : Alloy Steel
Material1 : Metal
Material2 : Alloy Steel
MinimumHeight : 50 millimeters
ModelName : Hydraulic Top Link Cat
ModelNumber : 19 11/16-28''
NumberOfItems : 1
OemEquivalentPartNumber1 : GYKNKWP2WDYB8
OemEquivalentPartNumber2 : GYKNKW3MWDYB8
OemEquivalentPartNumber3 : GYKNKWS6WDYB8
PackageLevel : unit
PartNumber : GYKNKW3MWDYB8
ProductDescription :

Specifications

Material: Steel

Color: Black

Process: Polishing and Welding

Surface Treatment: Painting

Pull Force: 2.5t/5511lbs

Thrust Force: 3.5t/7716lbs

Model: 19 11/16-28''

Stroke: 21cm/8.26in

Bore Diameter: 6.3/7.6cm(2.48/2.99in)

Rod Diameter: 3.5cm/1.37in

Joint Bearing Width: 6.4cm/2.51in

Joint Bearing Thickness: 2cm/0.78in

Pin Diameter: 2.5cm/0.98in

Max. Length: 71cm/27.95in

Min. Length: 50cm/19in

Port Size: M14*1.5

Hydraulic Cylinder Work Pressure Max: 20Mpa

Double Pilot Check Valve Port Size: G3/8

Double Pilot Check Valve Press Max: 30Mpa

Double Pilot Check Valve Flow Max: 12L/min

Hydraulic Oil Hose Length: 75cm/29.52in

Hydraulic Oil Hose Port Size: G3/8*19

Packing Size: 60*10*10cm/23.62*3.94*3.94in

Gross Weight: 13kg/28.89lbs

Key Features

Protective Transportation: In order to prevent the products from being scratched and colliding during transportation, we use five layers of corrugated boxes and add fillers to fix them, to maximize the protection of your products.



Details

Practical Hose: The hose is made of rubber and steel wire, which has good toughness, and oil resistance and is not easy to crack for long-time use. It comes with G3/8 * 19 connector, which is convenient for you to use and install directly.

Support Bracket: A removable bracket is included in the package to provide secure support.

Package Included

1* Double-acting Hydraulic Cylinder

2* Hoses

2* Banjo Bolts

3* Sealing Rings

1* Wrench

1* Bracket

1* English Manual



Notes

1. Always check the cleanliness of oil for pollution. Please do not weld on the tube

2. Please note that the rod must be lubricated. At the sa
ProductSiteLaunchDate : 2022-05-23T20:55:16.745Z
Size : One Size
Style : Polishing and Welding
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
WarrantyDescription : Warranty
WebsiteShippingWeight : 0.45 pounds
