Specification
Brand : Deeoee
BulletPoint : 8x8 Matrix Driver Shield Full Color Rainbow Colorduino V2.0 DM163 RGB LED Driver Board Module 5V FT232 USB for Arduino UNO
BulletPoint1 : 8 ft. Maximum Mounting Height
BulletPoint2 : 12 LED light Beads on Each Head: High Lumen Value
BulletPoint3 : Adjustable Lighting Heads
BulletPoint4 : Compact & Stream Line Design
BulletPoint5 : Wall/Ceiling Mounting Available
Color : Orange
ConnectivityTechnology : USB
ControllerType : Remote Control
ControlMethod : remote
ExternallyAssignedProductIdentifier : 4862440198381
ExternallyAssignedProductIdentifier1 : 0686894803080
ExternallyAssignedProductIdentifier2 : 686894803080
FixtureType : Non Removable

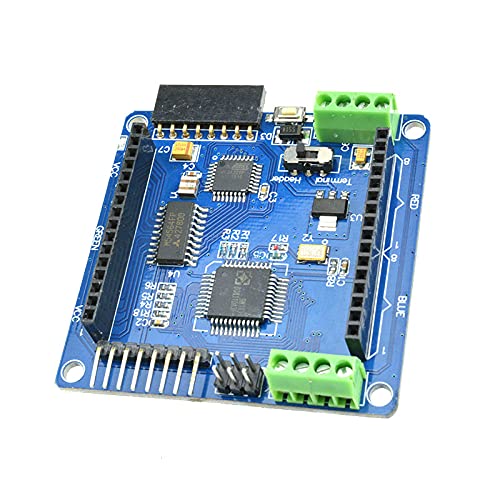

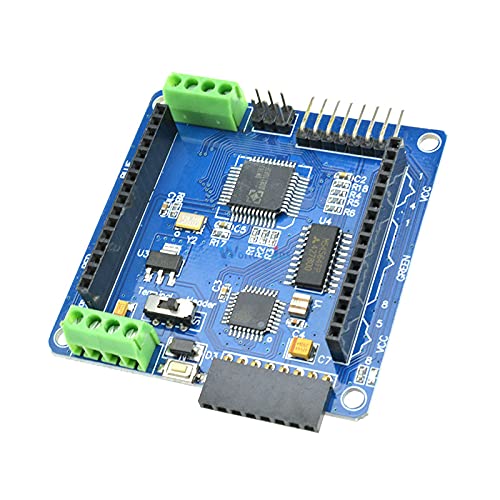

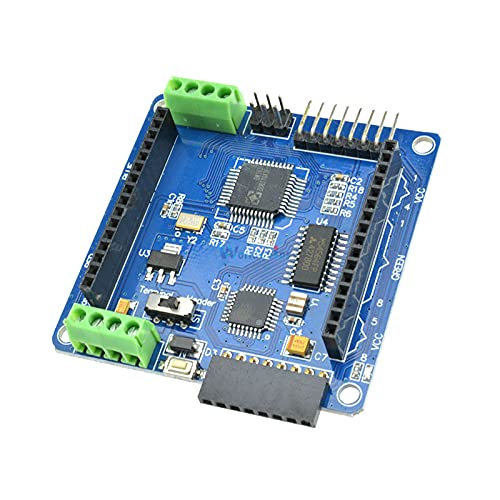

ItemName : 8x8 Matrix Driver Shield Full Color Rainbow Colorduino V2.0 DM163 RGB LED Driver Board Module 5V FT232 USB for Arduino UNO
ItemPackageDimensions_Height : 14 centimeters
ItemPackageDimensions_Length : 1.5 centimeters
ItemPackageDimensions_Width : 10.1 centimeters
ItemPackageQuantity : 5
ItemShape : Round
ItemTypeKeyword : electronic-component-led-lamps
LightFixtureForm : ceiling
Manufacturer : Deeoee
Material : copper
ModelNumber : JE-YEL-5MM-Y1
MountingType : Ceiling Mount,Wall Mount
NumberOfItems : 5
NumberOfLightSources : 12
PartNumber : CXXMODULE-10496
PowerSourceType : Battery Powered
ProductDescription :
The driver circuit based on 3 MBI5168 constant current sink drivers and a M54564 darlington source driver, the Colorduino pairs the M54564 with a single DM163 constant current driver. In order to better drive the RGB matrix and reach their best performance, we use the professional LED driver chip DM163 on board, by using the DM163, the Colorduino gains three 8+6-bit channels of hardware PWM control of the LED's freeing up the ATMega328P from having to implement it in software. And the DM163 comprises shift registers, data latches, 8×3 channel constant current and 64 x 256 gray level PWM for per color! Each channel provide a maximum current of 60 mA.
So, each RGB dot has 256×256x256 = 16,777,216 colours (16 million) in theory, and it's easy to use the 6bit correction register to calibrate the current error for each color LEDs
This shield can be programed via
FT232 USB adapter
Power is supplied either by pin headers or via 2 sets of mini screw terminals, a slide switch selecting between the two. With the herder side, you just can use the 5V power supply, and in the terminal side, now support 6.2-7.5V power supply, more than 7V will cause the DM163 fever and more than 9V supply may burn your board. Pins brought out the edge of the board include RX, TX and DTS, which can be used to reprogram the onboard ATmega chip, and SCA and SCL for I2C communication. A green LED on the front of the board indicates power, although it is mostly obscured as soon as you plug the matrix panel in. If you have an for Arduino UNO, but just want to drive a RGB LED Matrix, you can consider this Colors shield, it's compatible with Colorduino v2.0.
To make it work, you must need this RGB LED Matrix.
Package Include:
1PCS x Full color Rainbow Colorduino V2.0 Matrix RGB LED Driver shield For Arduino DI

ProductSiteLaunchDate : 2021-06-26T18:41:12.158Z
RoomType : Bedroom
Size : Juried Engineering ESD Safe Packaging (Pack of 25)
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 43201500
Wattage : 2 watts
WirelessCommStandard : bluetooth
