Specification
Brand : flexman
BulletPoint1 : Digital LCD display: Transistor tester is easy to read, displaying measurement data and graphs, rotating switch control, convenient button measurement.
BulletPoint2 : Frequency Measurement: Press and hold the test button to exit the frequency measurement function. Frequency measurement range from 1Hz to more than 1MHz When the measured frequency is lower than 25KHz, the period is displayed.
BulletPoint3 : Square Waviness Generator: Multi range square waviness frequency, rotate the left and right test button to switch different square waviness frequencies, long press the test button to exit the square waviness generator.
BulletPoint4 : Pulse Generator: Turn the test button to the left or right to adjust the pulse duty cycle from 1% to 99%. Press and hold the test button to exit the pulse generator.
BulletPoint5 : Power Interface: The transistor tester uses 5V Type C power interface for power supply, or it can be soldered to 9V battery interface for automatic shutdown, and the shutdown current is only about 20nA.
ExternallyAssignedProductIdentifier : 7605240060680
IncludedComponents : No

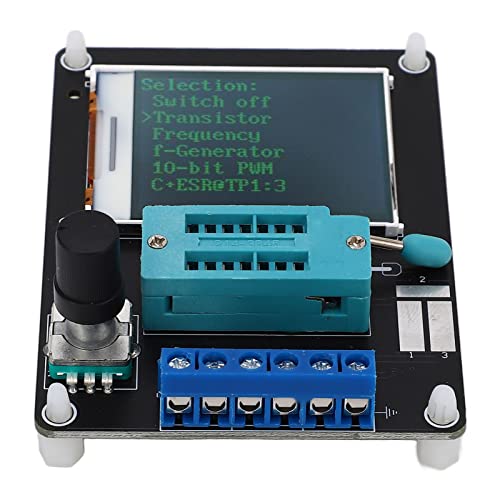

ItemName : flexman Transistor Tester, GM8A DC 5V Mosfet Transistor Capacitor Tester with 1.77 TFT Color Screen, 1~1MHz Capacitance Inductance ESR Volt Frequency Meter (English Full Version)
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : lcr-meters
Manufacturer : flexman
MeasurementAccuracy : 0.1mm
ModelName : YWBL-WHmoupyivzhe
ModelNumber : flexmannp3wzqt1s5-11
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : flexmannp3wzqt1s5-11
ProductDescription : Item Type: Transistor Tester
Material: PCB
Model: GM8A
Input Voltage: DC5V Type C Power Supply
Working Voltage: About 30mA
Plug In Measurement: Support
Patch Measurement: Support
Negative With Power: Without Battery
Control Method: Encoder
Display Screen: 1.77 Inch TFT Color Screen
Product Description.
Rotating coding switch has 6 operation methods: short press, long press, left rotation, right rotation, press and hold left rotation, press and hold right rotation.
Press it in the off state to turn on the power and start testing.
If the device is not detected after one test. Press and hold the switch or turn the switch left or right to enter the function menu. Once you enter the function menu, you can select the left and right switches above or below the menu item. To enter a function item, press the switch briefly. When you need to exit a function, press and hold the switch.


Package List：
1 x Transistor Tester
1 x Knob Cover
1 x Storage Box

Note:
Before testing the capacitance, discharge the capacitor before inserting it into the test holder for measurement, otherwise the tester's microcontroller may be damaged.
ProductSiteLaunchDate : 2024-03-26T12:07:55.377Z
Size : English Full Version
Style : English Full Version
UnitCount : 1
