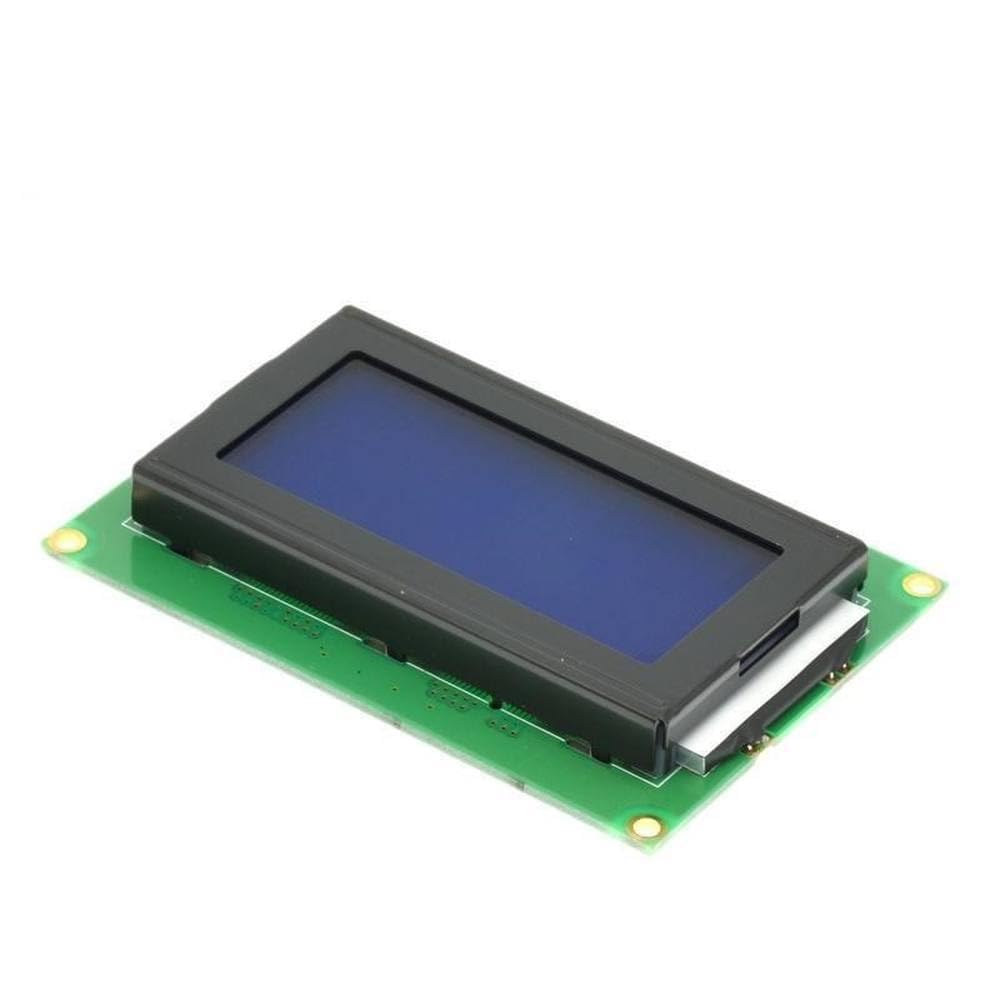

BulletPoint : LCD1604 1604A LCD DC 5V Bluelight 16x4 16x4 Character Digital Screen Display Module Board
ItemName : LCD1604 1604A LCD DC 5V Bluelight 16x4 16x4 Character Digital Screen Display Module Board
ItemTypeKeyword : lcd-character-modules
Manufacturer : Generic
Material : Copper
PartNumber : Lile_HFN_2188
ProductDescription : Interface definition:


Vss: Power supply, 0V

Vdd: Power supply, +5V

Vo: Power supply, LCD bias adjustment, contrast adjustment

RS: Data/instruction selection (H: data L: instruction)

R/w: Read/write selection (H: Read L: write)

E: indicates the enable signal

DB0: indicates the data bit 0

DB1: indicates data bit 1

DB2: Data bit 2

DB3: data bit 3

DB4: data bit 4

DB5: data bit 5

DB6: data bit 6

DB7: data bit 7

A: The LED backlight is positive

K: LED backlight is negative|Overall dimensions:
