Specification
Brand : Deeoee

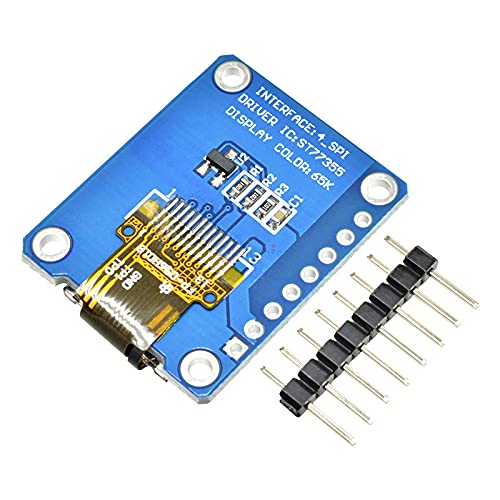

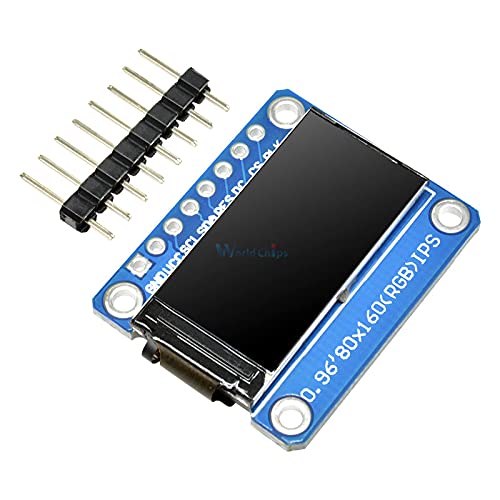

BulletPoint : IPS 0.96 inch 8 Pin SPI HD 65K Full Color TFT Module ST7735 Drive IC 80*160 LCD Display 3.3V SPI Interface for Arduino DIY
BulletPoint1 : Condition: New
BulletPoint2 : Type: Logic ICs
ExternallyAssignedProductIdentifier : 4862440193720
ItemName : IPS 0.96 inch 8 Pin SPI HD 65K Full Color TFT Module ST7735 Drive IC 80 * 160 LCD Display 3.3V SPI Interface for Arduino DIY
ItemTypeKeyword : lcd-character-modules
Manufacturer : Deeoee
Material : Copper
PartNumber : CXXMODULE-10030
ProductDescription :
1.Features
SIZE
0.96inch
Display Mode
Normally black IPS
Display Format
Graphic 80RGB*160 Dot-matrix
Input Data
SPI interface
Drive IC
ST7735S
Dimensional outline
24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution
80RGB*160 Dots
LCD Active area
10.8 (W)*21.7 (H)
Dot pitch
0.135(H) x 0.1356(V) mm
Viewing Direction
All View
Operating Temperature
-20～70°C
2.Pin Descriptions：
PIN No
Symbol
Description
1
GND
Ground
2
VCC
Power 3.3V
3
SCL
Serial clock pin.
4
SDA
Serial data input
5
RES
LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6
DC
Data/Command Control
7
CS
Chip Select
8
BLK
Backlight control pin
8095
