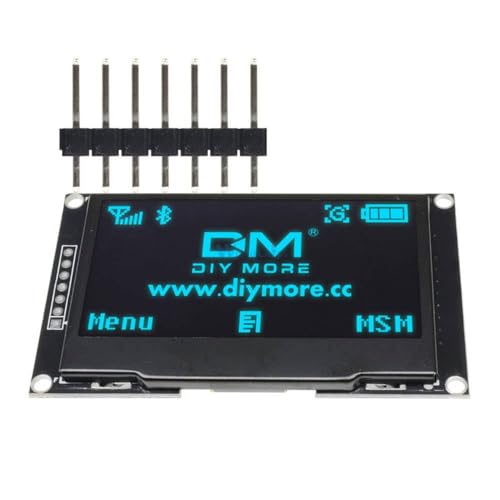

Generic Blue 2.42"" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 5800/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Generic
BulletPoint : Blue 2.42" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301
BulletPoint1 : Touch Panel Selected.
BulletPoint2 : Module Display Screen only, other accessories demo in the picture is not included.
BulletPoint3 : For detailed specifications and matching models, please see the detailed introduction in the description section.
BulletPoint4 : With Card Extended (Except 1.44").
BulletPoint5 : SPI Interface, 4 only.
ExternallyAssignedProductIdentifier : 7635462198236
ItemName : Generic Blue 2.42"" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301
ItemTypeKeyword : lcd-character-modules
Manufacturer : Generic
Material : Copper
NumberOfItems : 1
PartNumber : YGQ_MODULE_10682
ProductDescription :
Features:
Diagonal Screen Size: 2.42"
Resolution: 128 * 64
Driver IC: SSD1309
SPI interface definition:
1.GND (power ground)
2.VCC (power supply positive)
3.SCL (clock line)
4.SDA (data line)
5.RES (reset line)
6.DC (data / command)
7.CS (chip select)
Convenience.

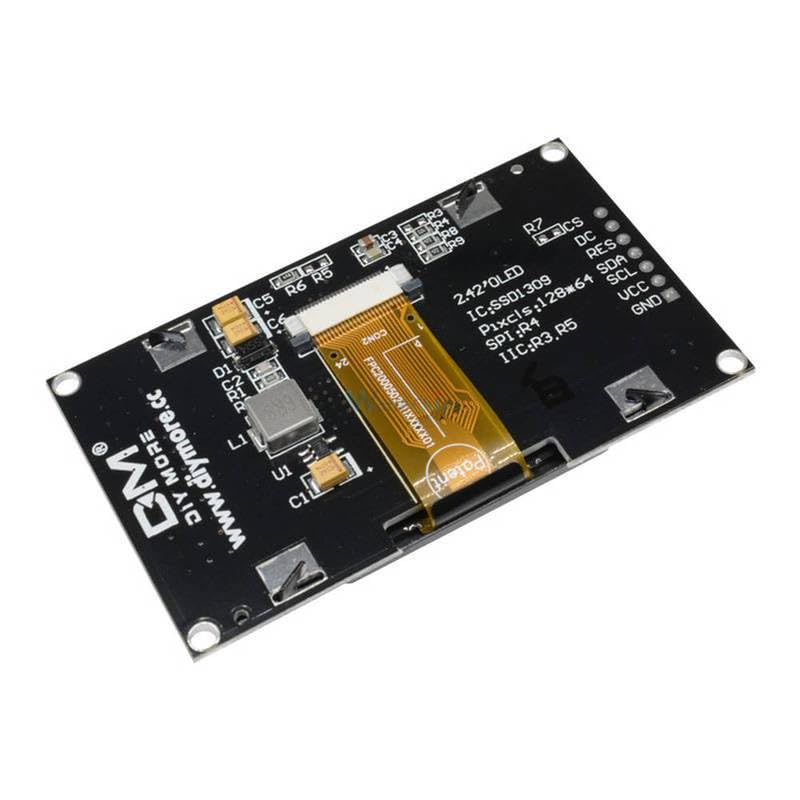

Interface Selection: to choose SPI or IIC interface through R3, R4, R5
For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.
SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5
Package:
1PCS * 2.42" 12864 OLED Display Module IIC I2C SPI Serial LCD Screen for C51 STM32 SSD1309

ProductSiteLaunchDate : 2024-05-15T13:13:08.040Z
UnitCount : 1
UnspscCode : 43211900
