Specification BatteriesIncluded : 1 BatteriesRequired : 1 Brand : TOPINCN BulletPoint : 3.5 inch TFT LCD display module 320X480 SPI parallel port driver ST7796U BulletPoint1 : Thin Display Module: Organic material layer is thin, lightweight, and flexible, without glass structure, with a bright screen and clear and intuitive display. BulletPoint2 : Broad Utility: For instruments, industrial controllers, communication equipment, GPS navigation scheduling, terminals and office automation equipment, and more. BulletPoint3 : Flexible for DIY: Self luminescent, low power consumption, compact size, suitable for installation with various DIY electronic components. BulletPoint4 : Easy to Install: Designed to have a compact size and a light weight as well, the organic light emitting diode is very convenient to install within several minutes. BulletPoint5 : Wide Compatibility: Equipped with SSD1309 driver and SPI interface, compatible with ESP8266, ESP32, STM32, etc., meeting all your needs for modification. BulletPoint6 : CPU (MCU): ARM Cortex-A8 (800MHz) BulletPoint7 : Communication Ports: Built-in RS-232, RS-422, RS-485 Color : Dark Grey CompatibleDevices : Solar ExternallyAssignedProductIdentifier : 4711830331245 ExternallyAssignedProductIdentifier1 : 0764379495132 ExternallyAssignedProductIdentifier2 : 764379495132 IncludedComponents : DOP-110WS ItemName : Display Module, 2.42in 128x64 Easy Installation Wide Compatibility Bright Organic Light Emitting Diode Module for ESP32 (MRA091A White) ItemPackageDimensions_Height : 2 centimeters ItemPackageDimensions_Length : 10 centimeters ItemPackageDimensions_Width : 8 centimeters ItemPackageQuantity : 1 ItemTypeKeyword : lcd-character-modules Manufacturer : TOPINCN Material : glass ModelName : TOPINCNz9xqhgy537-11 ModelNumber : TOPINCNz9xqhgy537-11 NumberOfItems : 1 NumberOfLithiumIonCells : 1 PartNumber : TOPINCNz9xqhgy537-11 ProductDescription : 1. Thin Display Module: Organic material layer is thin, lightweight, and flexible, without glass structure, with a bright screen and clear and intuitive display. 2. Flexible for DIY: Self luminescent, low power consumption, compact size, suitable for installation with various DIY electronic components. 3. Wide Compatibility: Equipped with SSD1309 driver and SPI interface, compatible with ESP8266, ESP32, STM32, etc., meeting all your needs for modification. 4. Broad Utility: For instruments, industrial controllers, communication equipment, GPS navigation scheduling, terminals and office automation equipment, and more. 5. Easy to Install: Designed to have a compact size and a light weight as well, the organic light emitting diode is very convenient to install within several minutes.

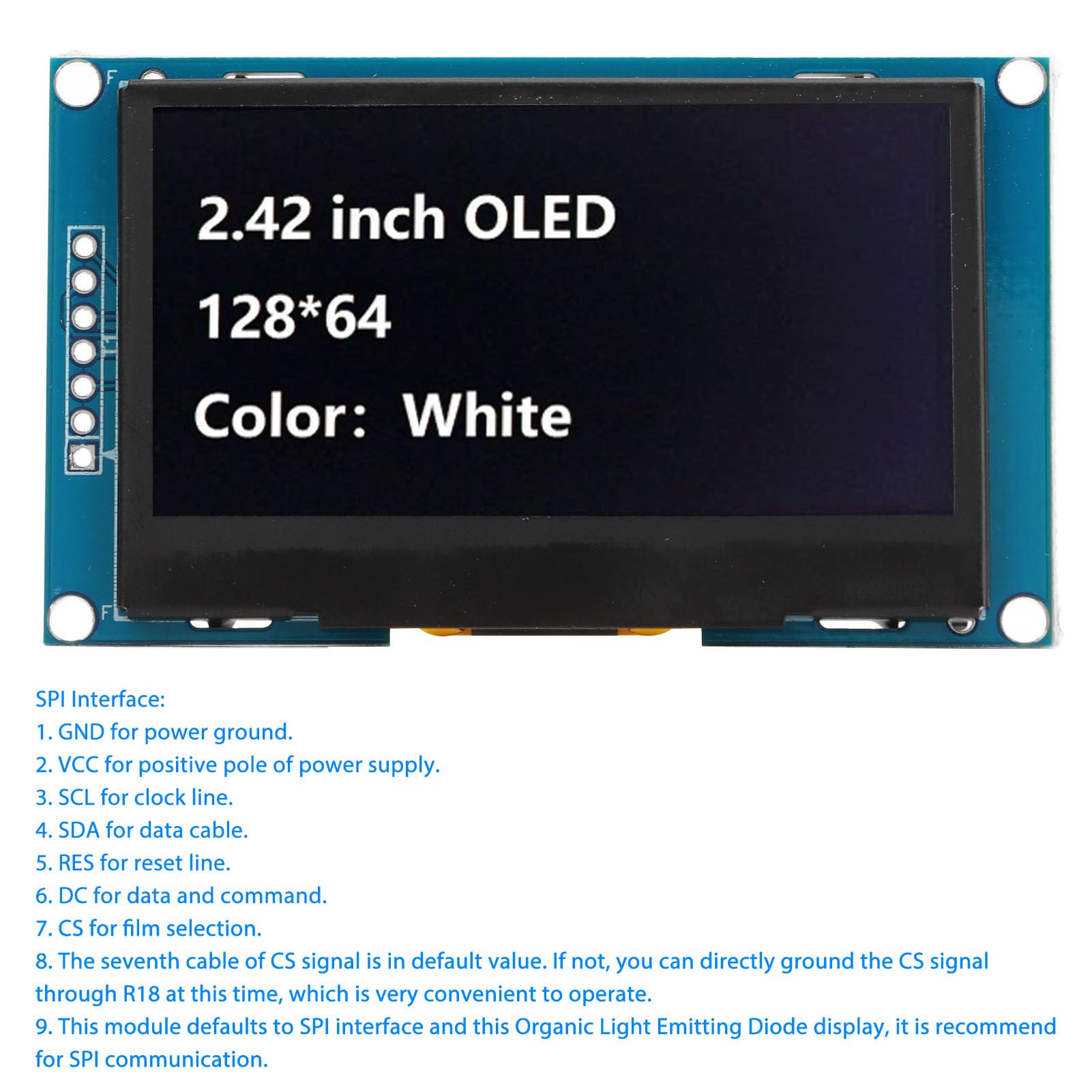

How to Use: SPI Interface: 1. GND for power ground. 2. VCC for positive pole of power supply. 3. SCL for clock line. 4. SDA for data cable. 5. RES for reset line. 6. DC for data and command. 7. CS for film selection. 8. The seventh cable of CS is in default value. If not, you can directly ground the CS through R18 at this time, which is very convenient to operate. 9. This module defaults to SPI interface and this Organic Light Emitting Diode display, it is recommend for SPI communication.
