Specification
Brand : Deeoee
BulletPoint : Blue 2.42" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301
BulletPoint1 : Condition: New
BulletPoint2 : Type: Logic ICs
ExternallyAssignedProductIdentifier : 4862440110017
ItemName : Blue 2.42" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301
ItemTypeKeyword : lcd-character-modules
Manufacturer : Deeoee
Material : Copper
PartNumber : CXXMODULE-11659
ProductDescription :
Features:

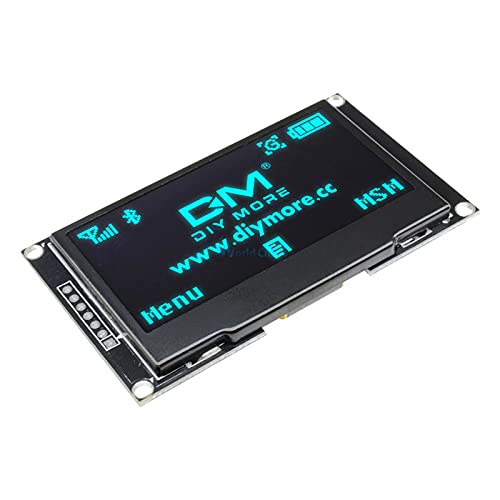

Diagonal Screen Size: 2.42"
Resolution: 128 * 64
Driver IC: SSD1309
SPI interface definition:
1.GND (power ground)
2.VCC (power supply positive)
3.SCL (clock line)
4.SDA (data line)
5.RES (reset line)
6.DC (data / command)
7.CS (chip select)
Convenience.

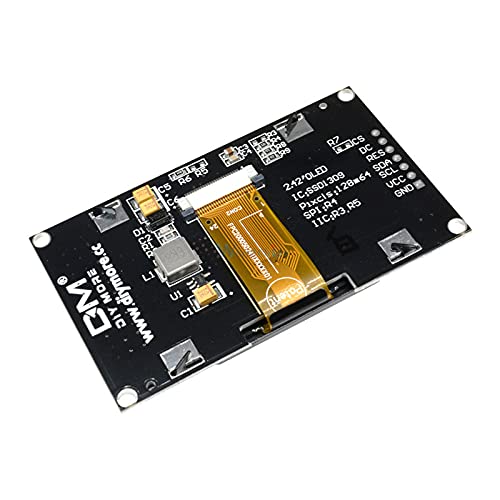

Interface Selection: to choose SPI or IIC interface through R3, R4, R5
For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.
SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5
Package:
1PCS * 2.42" 12864 OLED Display Module IIC I2C SPI Serial LCD Screen for C51 STM32 SSD1309

ProductSiteLaunchDate : 2021-06-26T18:41:12.526Z
UnspscCode : 43211900
