Specification
Brand : Deeoee

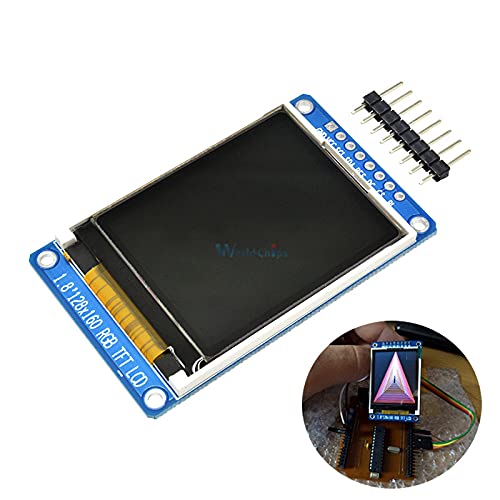

BulletPoint : 1.8" 1.8 inch Full Color 128x160 SPI TFT LCD Display Module ST7735S 3.3V Replace OLED Power Supply diy kit for Arduino
BulletPoint1 : Condition: New
BulletPoint2 : Type: Logic ICs
ExternallyAssignedProductIdentifier : 4862440197391
ItemName : 1.8" 1.8 inch Full Color 128x160 SPI TFT LCD Display Module ST7735S 3.3V Replace OLED Power Supply DIY kit for Arduino
ItemTypeKeyword : lcd-character-modules
Manufacturer : Deeoee
Material : Copper
PartNumber : CXXMODULE-10397
ProductDescription :
1.Features
SIZE
1.8inch
Display Mode
a-TFT
Display Format
Graphic 128RGB*160 Dot-matrix
Input Data
SPI interface

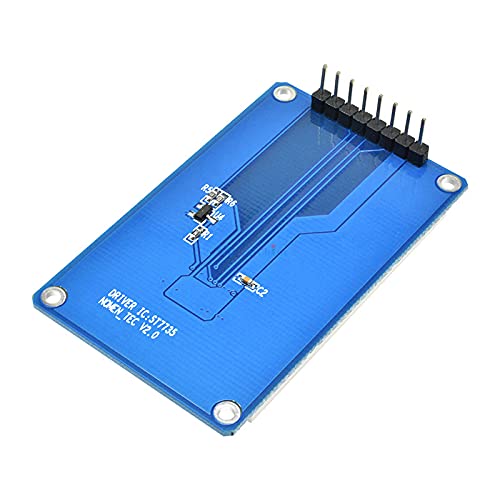

Drive IC
ST7735S
Dimensional outline
35(W)*56 (H)*3.45+/-0.1(T)mm
Resolution
128RGB*160 Dots
LCD Active area
28.03 (W)*35.04 (H)
Pixel size
0.219(W)*0.219(H)
Viewing Direction
12 o’clock
Operating Temperature
-20～70°C
2.Pin Descriptions：
PIN No
Symbol
Description
1
GND
Ground
2
VCC
Power 3.3V
3
SCL
Serial clock pin.
4
SDA
Serial data input
5
RES
LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6
DC
Data/Command Control
7
CS
Chip Select
8
BLK
Backlight control pin
Buyer show
