Specification
Brand : Yeemie Pro
BulletPoint1 : DisplayPort triple Monitor KVM Switch 4 Computers: This DisplayPort 3 monitor KVM perfect for hooking up 4 desktops or laptops to share one set of keyboard, mouse and 3 monitors for extended, mirrored display; Perfect for computers with 3 Displayport monitor for the display outputs. It requires every Laptop/PC support 3 screen or above display functions and must support extended display.
BulletPoint2 : Ultra HD 8K@60Hz KVM Switch 3 Monitors 4 Computers: DisplayPort 3 Monitors KVM Switch Support resolution up to 8K@30Hz/4K@144Hz and backward compatible with lower resolution. Note: Final resolution is also subject to graphic cards, monitors, cables and adapters.
BulletPoint3 : DisplayPort KVM with 3 USB 3.0 and Audio Microphone Output: KVM switch for 3 displayPort monitors with 3 integrated USB 3.0 ports which can recognize keyboard, mouse, printer, scanner and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices. 3 Monitor KVM Also supports separate audio and microphone output. Plug and play without any software needed.
BulletPoint4 : Wide Compatibility and Convenient Switching modes: You can press the button on the panel or use the wired remote controller (included in the package) to switch between 4 computers. LED indicate the active computer. Our KVM switch 3 monitor compatible with a variety of computer systems,such as Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS.
BulletPoint5 : What You Get: 1x 4 Port USB 3.0 DisplayPort Triple Monitor KVM Switch, 4x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. We offer 18 months warranty. If you have any questions about the product, please contact us.
BulletPoint6 : Note: Each PC needs 3*DisplayPort + 1*USB 3.0 cable be connected to get triple screens display properly. For desktop or laptop without 3*DP port, you need to use it with a reliable adapter or USB C docking station. Please make sure each of your PC has the ability to support triple display before purchasing. Test method: You can connect your PC directly to 3 monitors (not via KVM).
CircuitType : 4-way
Color : Black
CompatibleDevices1 : Keyboards
CompatibleDevices2 : Card Readers
ConnectivityProtocol : DisplayPort
ConnectorType : Displayport, Usb, Audio/Microphone
ControllerType : Button switch, Wired remote
ControlMethod : remote
CurrentRating : 2 amps
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 671891482970
ExternallyAssignedProductIdentifier10 : 0041114196555
ExternallyAssignedProductIdentifier11 : 0778890616501
ExternallyAssignedProductIdentifier12 : 0037332125279
ExternallyAssignedProductIdentifier13 : 5052182405529
ExternallyAssignedProductIdentifier14 : 0012304765592
ExternallyAssignedProductIdentifier15 : 0763615807241
ExternallyAssignedProductIdentifier16 : 00037332125279
ExternallyAssignedProductIdentifier2 : 0671891482970
ExternallyAssignedProductIdentifier3 : 778890616501
ExternallyAssignedProductIdentifier4 : 041114196555
ExternallyAssignedProductIdentifier5 : 037332125279
ExternallyAssignedProductIdentifier6 : 191120033129
ExternallyAssignedProductIdentifier7 : 583409138746
ExternallyAssignedProductIdentifier8 : 0583409138746
ExternallyAssignedProductIdentifier9 : 0191120033129
HardwareInterface : usb
HardwarePlatform : PC
IncludedComponents : Usb c Switch,User Manual
InternationalProtectionRating : IP54
ItemDisplayDimensions_Height : 7 inches
ItemDisplayDimensions_Length : 30 inches
ItemDisplayDimensions_Width : 24 inches
ItemName : 8K@60Hz DisplayPort 3 Monitors 4 Computers KVM Switch, DP 1.4 KVM Switch 4K@144Hz Triple Monitor for 4 Computer with Audio and 3 USB 3.0 Ports, KVM Triple Monitor Keyboard Mouse Switcher
ItemPackageDimensions_Height : 23.2 centimeters
ItemPackageDimensions_Length : 5.7 centimeters
ItemPackageDimensions_Width : 17.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-data-switches
LightType : LED
Manufacturer : Yeemie Pro
Material : Plastic
ModelName : Rackmount LCD
ModelNumber : KCDZUS201DPA
MountingType : Plug In Mount
NationalStockNumber : 7025-01-560-7098
NumberOfItems : 1
NumberOfPorts : 1
NumberOfPositions : 4
OperatingSystem : other
OperatingVoltage : 12 volts
OperationMode : manual
PackageLevel : unit
PartNumber : DP403B-USB3.0-HPZ
ProductDescription :

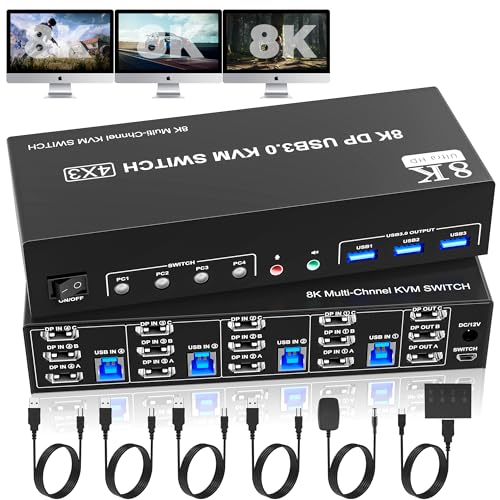

8K@60Hz 4 Port USB 3.0 Triple Monitor 3 DisplayPort KVM Switch for 4 Computers Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone



Features:

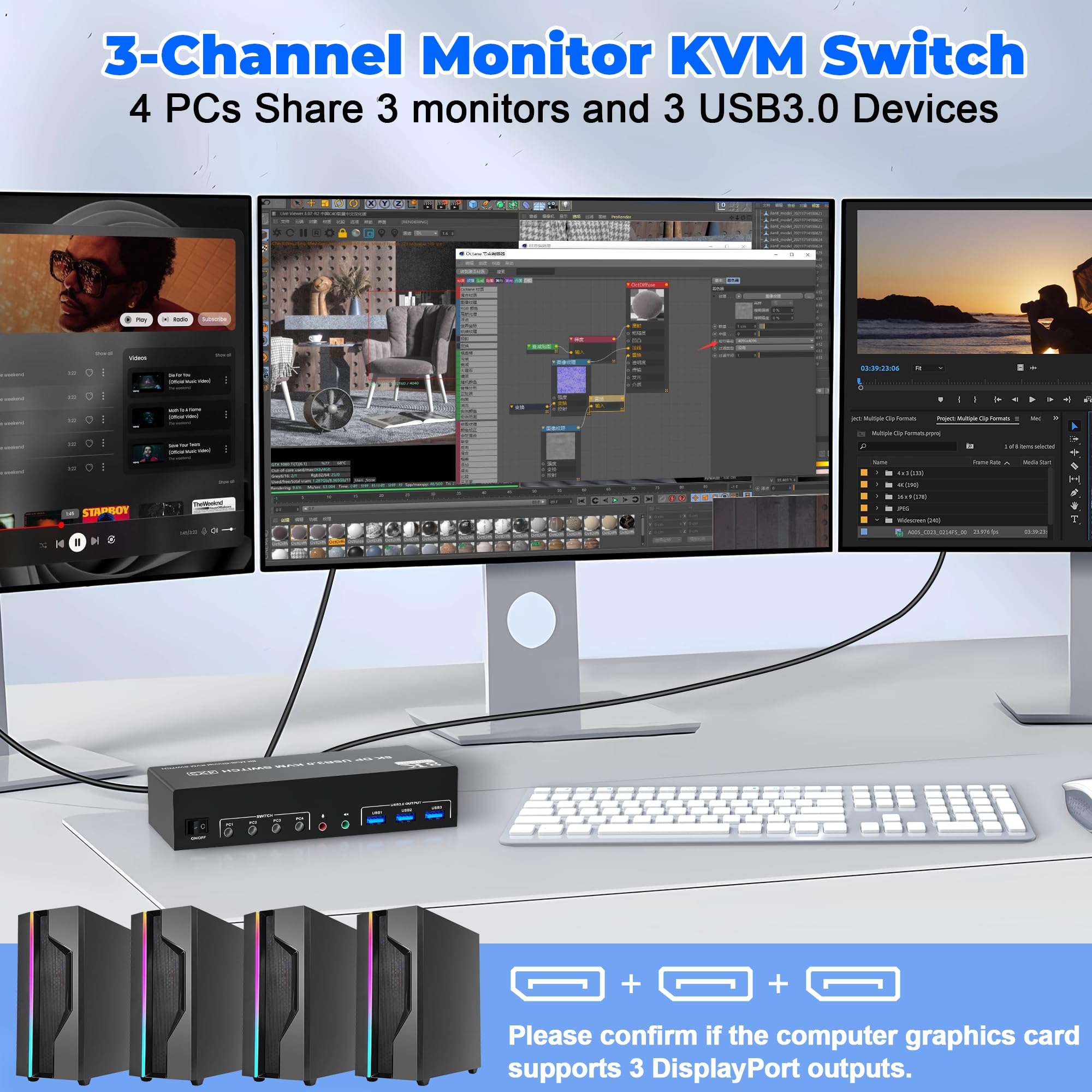

1. 8K Triple Monitor KVM Switch 4-Port allows 4 computers/laptops share one set of keyboard, mouse, and 3 monitors



2. This 3 monitor KVM switch 4 ports does not mean that it can only be connected to 4 computers. You may only have 2 computers now, but you may need to use 3 or 4 computers in the future, then you can choose this switch. Please make sure each of your PC has the ability to support triple display before purchasing.



3. Support DP 1.4 standard, backwards compatible with DP 1.2 standard. 3 monitors output support up to 8K@60Hz for extended,mirrored or spliced display（Depends on your computer's graphics card.）;



4. 2 Switching modes: Button switch and wired remote.



5. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output



6. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS



7. The ports that need to plug in ayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.



Installation Guide Tips (incorrect connection will cause malfunction):

1. Insert the DC/12V adapter into the KVM ;

2. Plug the 3*DisplayPort cable into the KVM switch and monitor;(Output)

3. Plug the 3*DisplayPort cable and 1*USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)



DP IN 1A + DP IN 1B + DP IN 1C + USB IN 1=PC1



DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2



DP IN 3A + DP IN 3B + DP IN 3C + USB IN 3=PC3



DP IN 4A + DP IN 4B + DP IN 4C + USB IN 4=PC4



Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A,DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.



4. Insert the mouse and keyboard into the KVM switch



5. If needed, you can connect a microphone and audio port



Note：



1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP+ 1 USB cable) connect to the KVM.

2. If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.

3. Note: DP cables are not included





Ultra HD 8K@60Hz Triple Monitor KVM Switch

Confirms to HDMI 2.1 & DP 1.4 protocol, supports a maximum resolution of 8K@60Hz 4K@144Hz, and is compatible downwards.

Only when both your computer Graphics card, monitor and cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.





3 Display Modes

Extended Display



Mirrored Display



Spliced Display



1)Extended mode can output 3 different screens and mirror mode can output 3 identical screens. Note：If your graphics card has a splicing screen function, you can use the splicing screen mode.



2) The requirement for this KVM to achieve a triple-screen display is that each PC you connect to has the capability to support a triple-screen display. This has nothing to do with KVM.



Wired Remote Control

Supports wired remote switching for easy cable management,with digital 1/2/3/4 indicator light (green light).



Switch by Panel button

Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.



LED Indicator

When switching to which PC, the LED will tell you whether PC1 or PC2 or PC3 or PC4 is active.



Audio and microphone output

3 monitors 4 computers KVM comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone



ProductSiteLaunchDate : 2024-07-10T07:04:16.770Z
Size : 8K 60HZ
SpecificationMet : ISO 9001
StreetDate : 2019-06-30T00:00:01Z
Style : 2x1 DP KVM Switch
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Button Switch, Wired Remote
TerminalType : Screw
TotalUsbPorts : 1
UnitCount : 1
UnspscCode : 39122200
UpperTemperatureRating : 45 degrees_celsius
WarrantyDescription : 1 year limited warranty
Wattage : 10 watts
