Specification
Brand : XYKJOBC
BulletPoint1 : *One pair as a full functional module, no need of setting.
BulletPoint2 : *Support 1080P/60Hz;*Support local loop-out;*Support 60m long distance transmission。
BulletPoint3 : *Low power consumption, low temperature and high safety;-Support mouse and keyboard extension;*CAT-5e/6 follow the standard of IEEE-568B。
BulletPoint4 : *The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves, however CAT-5E/6 cables are available everywhere and can be processed easily by the user or installer.
BulletPoint5 : *Because the head of the long HDMI cable is big, using it must in hidden method, what is more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However,CAT-5e/6 cables do not have such problems.
BulletPoint6 : *With this extender, the transmission distance can be up to 60 meters while using CAT-5e/6 cables, for the general HDMI cables, they must be customized when the length is over 10 mete
BulletPoint7 : At SIIG, we are proud of our products and service. Our products are of high quality and built to last. We are here to assist should you need us. We provide 2 Year Warranty for our products and email support. Contact us thru Amazon if any issues arise.
CircuitType : multi-way
Color : Black
CompatibleDevices : Monitor
ConnectivityProtocol : Hdmi
ConnectorType : Hdmi,usb
ControlMethod : touch
CurrentRating : 1 amps
ExternallyAssignedProductIdentifier1 : 710702400823
ExternallyAssignedProductIdentifier2 : 0710702400823
FinishType : Hdmi
InputVoltage : 5 volts
InternationalProtectionRating : IP54
InternationalProtectionRating1 : IP IP IP54
InternationalProtectionRating2 : IP67

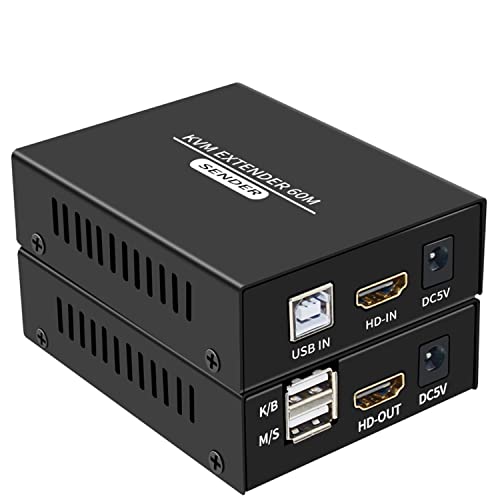

ItemName : 60M HDMI KVM Extender Over Cat5e Cat6 1080P HDMI USB KVM Extender Transmit with Loop Out Support USB Keyboard Mouse Extension
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 6.6 inches
ItemPackageDimensions_Width : 6 inches
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : computer-data-switches
LowerTemperatureRating : 14 degrees_fahrenheit
Manufacturer : Swallow house
Material1 : Copper
Material2 : Brass
Material3 : Stainless Steel
ModelNumber : 237KM
MountingType : Rack Mount
NumberOfItems : 1
NumberOfPorts : 4
NumberOfPositions : 1
OperatingVoltage : 240 volts
OperationMode : automatic
PartNumber : 1
PowerPlugType : type_a_2pin_na
ProductDescription :
Introduction :

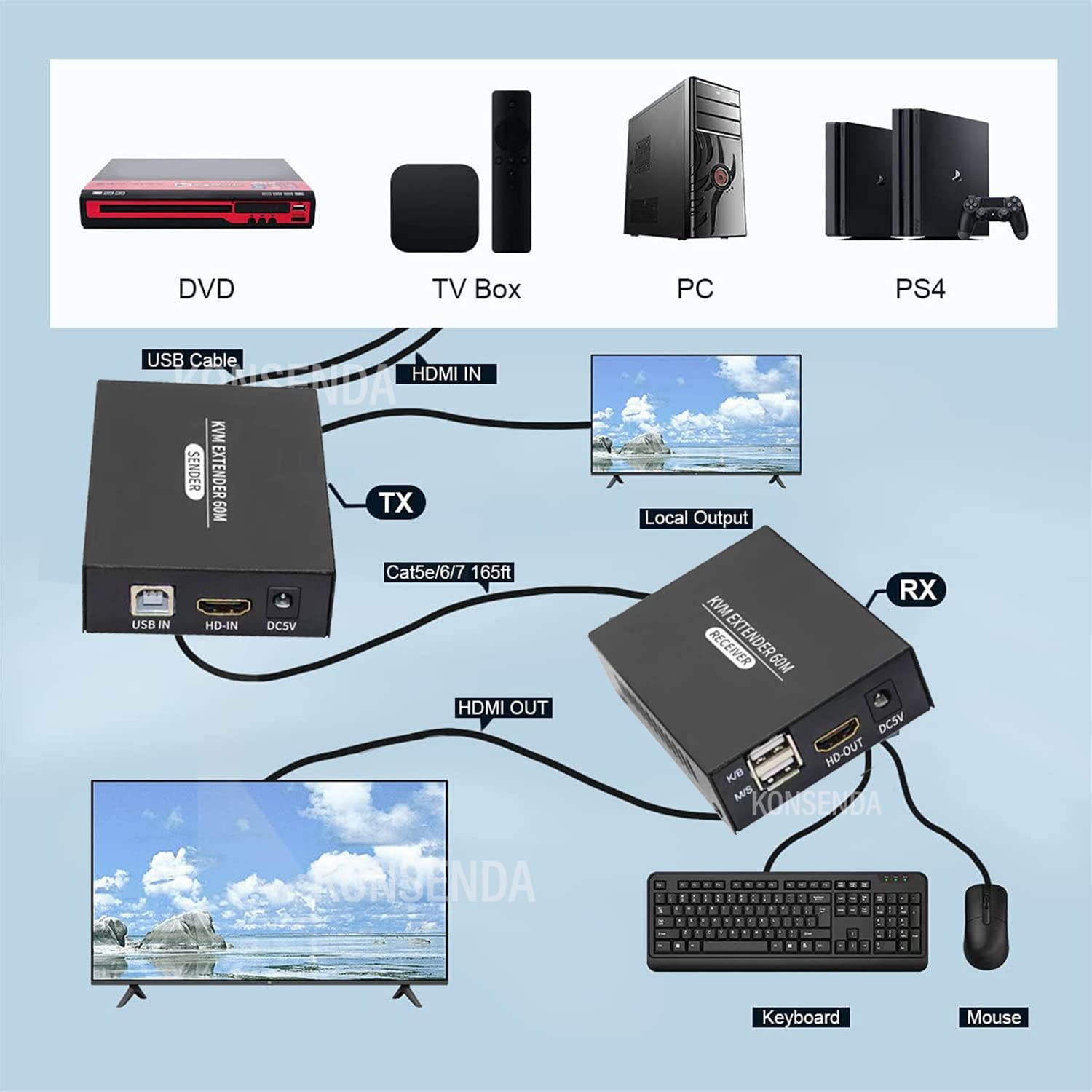

The KVM Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost.
The Extender is designed to supply for long distance transmission of high definition signal.
It offers solutions for residential consumers: HDTV retail and show site, HDTV,STB,DVD and projector factories,
space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Specifications:
Length of CAT-6/CAT-5E cable between Rx and TX ：Up to 60 meters
HDMI Input ：1080p/1080i/720p/576p/576i/480p/480i
HDMI Output：1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth：150MHZ
Max baud rate：4.5Gbps
Input video signal：0.5~1.5Volts p-p
Output DDC signal：5Volts p-p (TTL)
Input HDMI cable distance：≤10m AWG26 HDMI standard cable
Output HDMI cable distance：≤15m AWG26 HDMI standard cable
TX Max working current：450mA
RX Max working current：350mA
Power adapter format：Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +45 C)
Operating Humidity range 5 to 90%RH (No Condensation)
Package:
1* transmitter
1* receiver
2*DC5V power Plug
1* One USB A-B cable
ProductSiteLaunchDate : 2022-05-16T15:33:27.055Z
Size : RX
SpecificationMet1 : FCC
SpecificationMet2 : CE
SpecificationMet3 : RoHS
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Temperature Switch
TerminalType : Usb
UnitCount : 1
UnspscCode : 39122200
UpperTemperatureRating : 140 degrees_fahrenheit
Voltage : 100 volts
