Optical FiberSplicer 300X Magnification, High Efficiency Fiber Welding Machine with Portable Handbag, Suitable for Telecommunications, Petrochemicals, and More (US Plug)

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 124400/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Jectse
BulletPoint1 : LCD TOUCHSCREEN: Thissplicer adopts a 5.0 inch TFT color LCD with 800x480 high resolution, 300X focusing magnification, displaying welding loss and cutting angle, and equipped with LED lights for easy use in dark places.
BulletPoint2 : HIGH EFFICIENCY: The fiber opticsplicer supports 9s fast splicing and 26s fast heating, the heating time can be set, heating temperature can be adjusted, with ultra low splicing loss, 0.02dB (), 0.01dB (MM), 0.04dB (DS NZDS).
BulletPoint3 : APPLICABLE FIBER: With 3 in 1 fiber fixture, fully automaticspliced fiber optic, suitable for , MM, bare fiber, pigtail, rubber insulated cable, multi core cables, suitable for 80‑150μm cladding diameter, 100‑1000μm coating diameter.
BulletPoint4 : POWER SUPPLY: This fiber opticsplicer has 7800mAh lithium battery, 3.5 hours fast full , can be fused or heated no less than 200 times, and has a USB interface for charging, solving the charging problem during outdoor work.
BulletPoint5 : PORTABLE HANDBAG: Equipped with a waterproof handbag, with an internal cushioning structure designed to the device and accessories, and comes with a single shoulder strap for easy carrying out, which is lightweight and .
ItemName : Optical FiberSplicer 300X Magnification, High Efficiency Fiber Welding Machine with Portable Handbag, Suitable for Telecommunications, Petrochemicals, and More (US Plug)
ItemPackageDimensions_Height : 18 centimeters
ItemPackageDimensions_Length : 40 centimeters
ItemPackageDimensions_Width : 36 centimeters
ItemTypeKeyword : arc-welding-kits
Manufacturer : Jectse
ModelName : Jectseo49umy5t3e-11
ModelNumber : Jectseo49umy5t3e-11
NumberOfItems : 1
PartNumber : Jectseo49umy5t3e-11
ProductDescription : Specification:
Item Type:Splicer
Applicable Fiber Type: (G.652 G.657), MM (G.651), DS (G.653), NZDS (G.655), and custom fiber types
Connection Loss: 0.02dB (), 0.01dB (MM), 0.04dB (DS NZDS)
Return Loss: Better than 60dB
Typical Connection Time: 9s
Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted)
Fiber Alignment: Fine alignment, fiber core alignment, cladding alignment
Fiber Diameter: Cladding diameter 80-150μm. Coating diameter 100-1000μm
Cutting Length: Coating Layer 250μm Below: 8-16mm; Coating Layer 250-100μm: 16mm
Tension Test: Standard 2N
Fiber Optic Fixture: Multifunctional fixture suitable for bare fiber, tail fiber, jumper, and leather wire; replacement fixture can be suitable for SC and other connector, used for various FTTx fiber optic cables
Magnification: 300 Times (X Axes or Y Axes)
Heat Shrink Tubing: 60mm, 40mm, and a series of micro shrink tubing
Display: 5.0 inch TFT color LCD display screen, content can be flipped, convenient for bidirectional operation
External Interface: USB interface, convenient for data download and software updates
Fusion Mode: 17 sets of usage modes
Heating Mode: 9 sets of usage modes
Power Supply: 1 x 7800mAh rechargeable lithium battery, charging time ≤ 3.5H; (include battery)
Plug Voltage: 100-240V

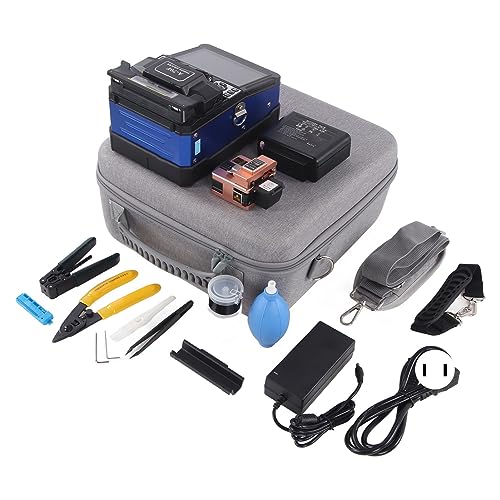

packing list:
1 x Handbag
1 x Handbag Strap
1 x FiberSplicer
1 x FiberSplicer Battery
1 x FiberSplicer Strap
1 xSplicer User Manual
1 x Power Adapter
1 x Power Cord
1 x Cutting Knife
2 x Cutting Knife Wrenches
1 x Cutting Knife User Manual
1 x Empty Bottle
1 x Blowing Ball
1 x Insulation Wire Pliers
1 x Fiber Stripping Pliers
1 x Fiber Length Fixer
1 x Tweezers
1 x Cooling Bracket
1 x Brush


ProductSiteLaunchDate : 2023-11-01T10:58:04.958Z
Size : US Plug
UnitCount : 1
