Specification
Brand : DWFSKZKV
BulletPoint : Key Operated Switches
BulletPoint1 : Key Operated Switches
BulletPoint2 : 1. The upper limit of ambient temperature shall not exceed +40, and the lower limit shall not be less than -5, and the average temperature in 24 hours shall not exceed +35.
BulletPoint3 : 2. The altitude of the installation site shall not exceed 2000M.
BulletPoint4 : 3. The relative humidity of the atmosphere shall not exceed 50% when the ambient air temperature is +40, and higher relative humidity is allowed at lower temperature;
BulletPoint5 : For example, 90% at +20. Special measures should be taken for occasional condensation in products due to temperature changes.
BulletPoint6 : 4. Pollution level: Level 2.
BulletPoint7 : This is the size of 100A
Color : 160A
Department : unisex-adult
ExternallyAssignedProductIdentifier : 7320559296703
ItemName : YCM8-160S 3P MCCB AC400V 25/18kA Fixed Moulded Case Circuit Breaker Power Distribution Protection
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-key-operated-switches
Manufacturer : DWFSKZKV
ModelName : DWFSKZKV
ModelNumber : DWFSKZKV
NumberOfItems : 1
PartNumber : DWFSKZKV
ProductDescription : Key Operated Switches
Description

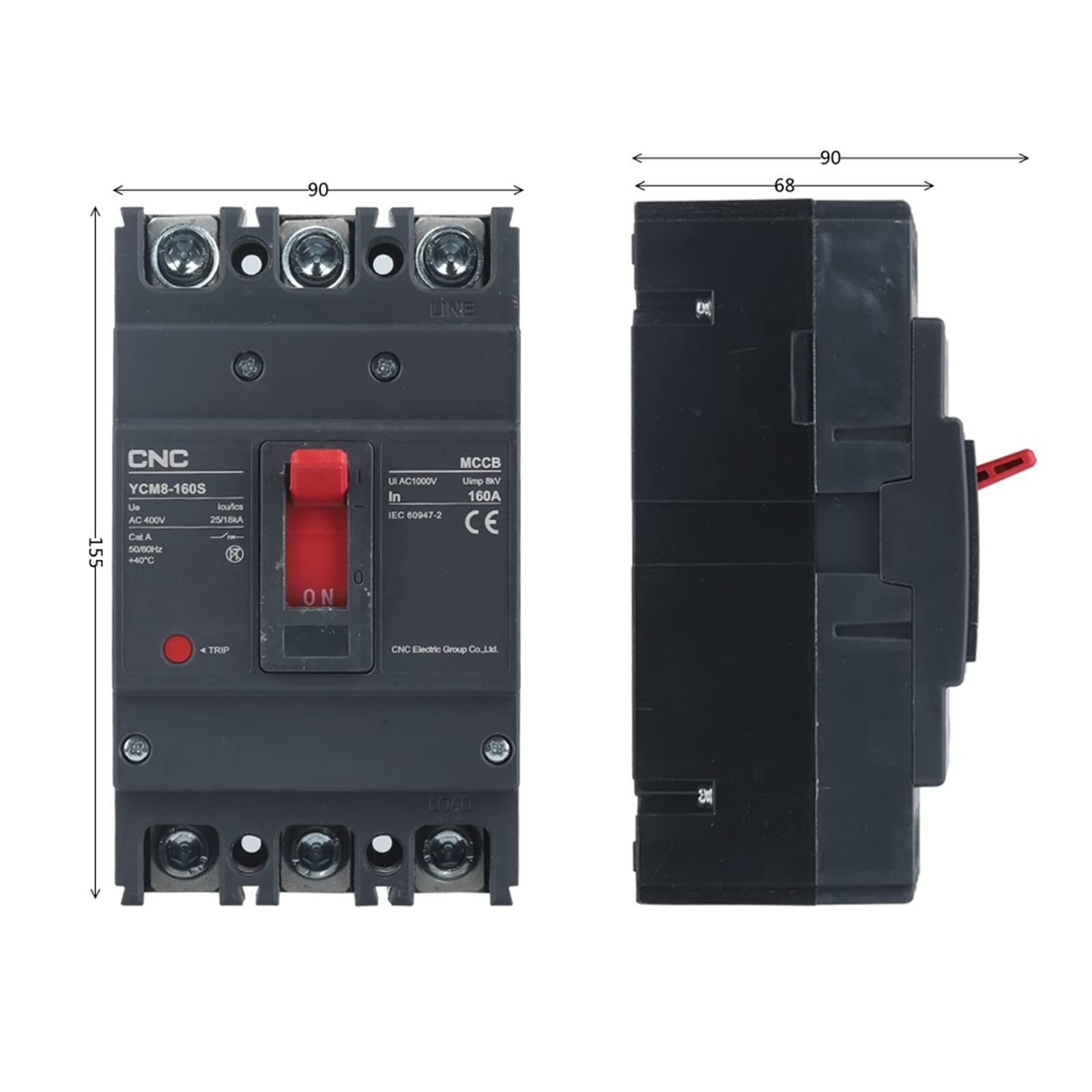

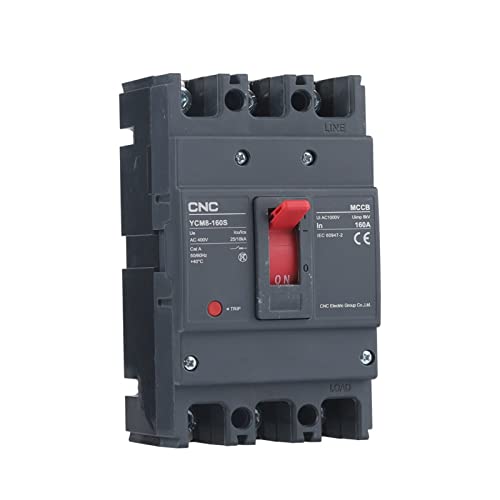

Type:YCM8/160S
Rated Current:160A
Poles:3P
Rated voltage Ue(V):AC400V
Short-circuit breaking capacity Icu/1cs(kA):25/18kA
Rated insulation voltage Ui(V):AC1000V
General
YCM8 Series circuit breakers were developed according to the demand of domestic
and international market as well as features of similar products.
Its rated insulation voltage up to 1000V, is suitable for AC 50Hz distribution network
circuit whose rated operation voltage is up to 690V, rated operation current from
10A to 800A. It can distribute power, protect the circuit and power supply devices
from the damage of overload, short circuit and under voltage, etc.
This series circuit breaker feature small volume, high breaking capacity and short
arcing. It can be installed vertically (namely vertical installation) and also installed
horizontally (namely horizontal installation).
It complies with standards of IEC60947-2.
Product Feature
Feature 1: Current limiting ability
Limiting the rise of short circuit current of circuit. The peak short circuit current and
I2t power are much lower than the value expected.
U shape fixed contact design
The U shape fixed contact design achieves the technique of pre-breaking:
When the short circuit current pass through the contact system, there are forces that
repel each other on the fixed contact and moving contact. The forces were produced
with short circuit current and enlarge while short circuit current enlarge.
The forces make the fixed contact and moving contact apart before tripping. They
elongated the electric arcing to enlarge their equivalent resistance to limit the rise of
short circuit current.
Feature 2: Modular accessories
The size of accessories is same for YCM8 with same frame.
You can choose the accessories according to your needs to extend the function of
YCM8.
ProductSiteLaunchDate : 2025-05-03T09:07:16.612Z
Size : 3P
UnitCount : 1
UnspscCode : 39121601
