Specification
Brand : Generic
BulletPoint : DC-DC SX1308 Step-UP Adjustable Power Module Step Up Boost Converter 2-24V to 2-28V 2A
BulletPoint1 : Genuine OEM replacement part
BulletPoint2 : Wells manufacturing product lines include electric warming and countertop cooking appliances for the food service industry
BulletPoint3 : Use genuine OEM parts for Safety reliability and performance
BulletPoint4 : Country of origin: United States
Color : 1 in 1 out
CurrentRating : 2 amps
ExternallyAssignedProductIdentifier : 7650053778888
ItemDisplayDimensions_Length : 7 inches

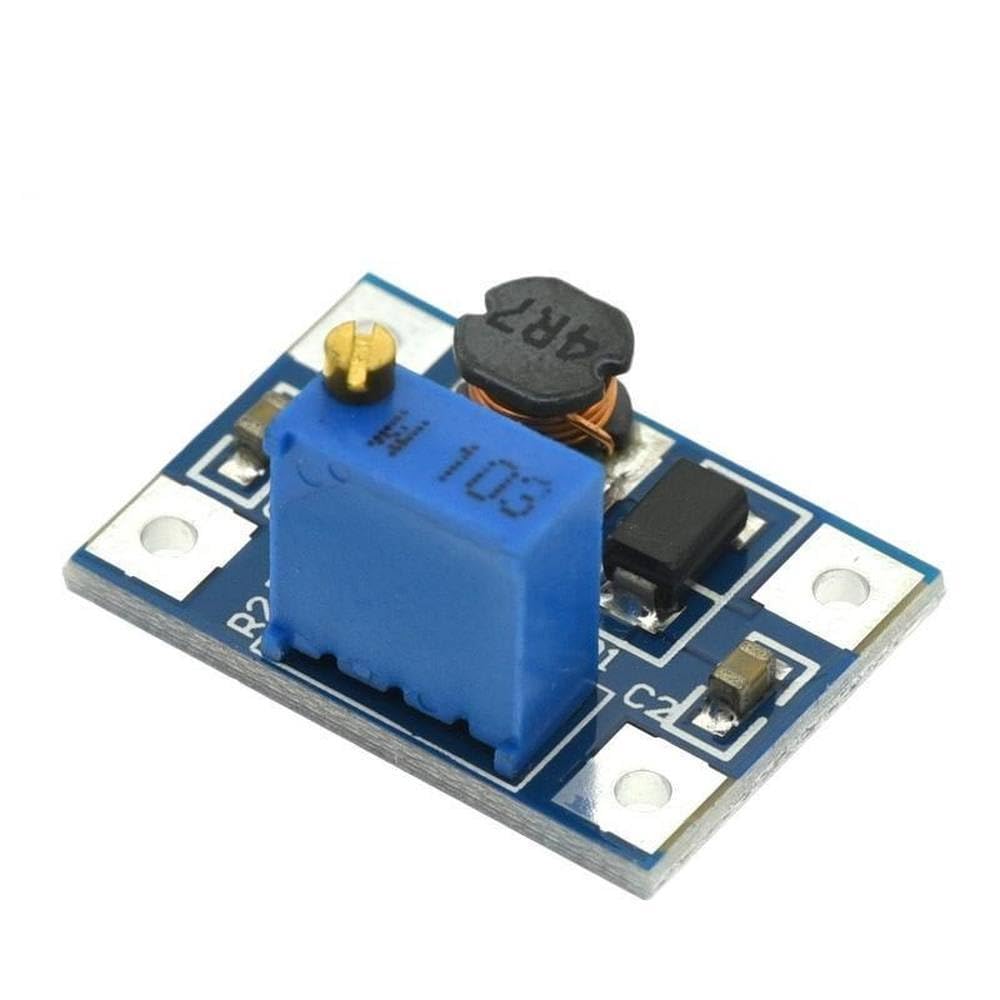

ItemName : DC-DC SX1308 Step-UP Adjustable Power Module Step Up Boost Converter 2-24V to 2-28V 2A
ItemPackageDimensions_Height : 9.01 inches
ItemPackageDimensions_Length : 5.01 inches
ItemPackageDimensions_Width : 6.01 inches
ItemPackageQuantity : 1
ItemTypeKeyword : isolation-transformers
Manufacturer : Generic
Material : Metal
ModelNumber : 2E-Z5741
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Lile_HFN_2882
PowerSourceType : Battery Powered
ProductDescription :
Descriptions:


LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.





Features:


Oscillation frequency 1.2MHz

efficiency is as high as 95%

Circuit has short circuit protection, overheating protection function

10k to adjust potentiometer, adjust the output voltage



Parameters:

Maximum input voltage: DC 2-24V

Maximum output voltage: DC 2-28V

Switching frequency: 1.2MHz

Maximum current output: 2A|1: Positive pole of VIN voltage input terminal

2: GND voltage input terminal negative pole

3: GND is the negative pole of the voltage output terminal

4: OUT is the positive pole of the voltage output terminal, the two GNDs are interconnected.

The pads of the four voltage input/output terminals are 4mmX 4mm pads, and the diameter of the through hole is 1mm;

5:1 OK adjustment potentiometer, select the output voltage value by adjusting the potentiometer, adjust the counterclockwise direction

increase towards the output voltage value;

6 : SS34 overload current protection||||
ProductSiteLaunchDate : 2023-11-30T05:21:31.508Z
Size : 4-20mA to 0-10V
SpecificationMet : Oem
StreetDate : 2016-10-21T00:00:01Z
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 60141000
