Specification
Brand : Generic
BulletPoint : Color: 1piece

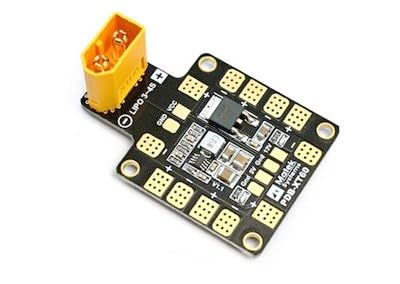

ItemName : Wiring Connecting Terminals - UAV Electric Board PDB-XT60 Through Machine Distribution Board,Supports 3-6S Dual-Channel BEC 5V/2A 12V/0.5A Linear F3 F4 - (Color: 1piece)
ItemTypeKeyword : io-modules
Manufacturer : CHIKIMIKI
NumberOfItems : 1
PartNumber : CNCKEBA78EE739C7EDB368EA8A4C0F27D284
ProductDescription : 1.Support 2S---6S input, 2oz copper foil, to make sure the passage of large current.
2.4-layer PCB, high power current and BEC layering, to avoid the interference of the BEC ground wire by the power current.
3.6 pairs of ESC power pads, suitable for ESC arrangement of X-shaped or H-shaped racks.
4.Dual BEC: 5V/3A synchronous rectifier switch BEC, 12V/0.5A linear BEC.
5.Compatible with racks with an upper plate width less than 48mm
Distributor board withstand current 4*25A, short-term 4*30A (10s)
BEC 5V ripple: 40mV (Vin=16V, Vout=5V@2A load)
BEC 12V linear voltage regulator, extremely low ripple, will not interfere with the image signal.
52*36*3mm, total weight 11g including XT60
Installation hole distance 30.5mm, hole diameter 3mm
The package contains a genuine Amass XT60 plug, which needs to be soldered on by the user.
Pay attention to the input polarity, do not reverse the input, short-circuit!
Do not touch the carbon fiber board behind the distribution board, it may cause a short circuit.
When using 4S, the 12V regulated output can last for 500mA. the regulated accuracy is 2.5%.
The 12V voltage regulator chip also supports 3S battery input, but the output voltage = 3S real-time voltage -1V.
BEC 12V can provide a maximum of one 12V camera and one 600mW image transmission.
