Specification
Brand : Generic
BulletPoint : Style: A, Connector Type: Line Connector, Pins: 4P, Insert Type: Female Insert
BulletPoint1 : Analog input:2 channels
BulletPoint2 : Model Number:MA01-AACX2220
BulletPoint3 : Specification:2DI+2AI+2DO
BulletPoint4 : Digital input:2 channels
BulletPoint5 : Digital output:2 channels
Color : White
ExternallyAssignedProductIdentifier : 7320500911341
ItemName : Wiring Connecting Terminals - RJ50 10P10C DIN Rail Interface Module, CAT5 White Network Ethernet Punchdown Horizontal Splitter Board
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : io-modules
Manufacturer : CHIKIMIKI
ModelName : 500300992
ModelNumber : 500300992
NumberOfItems : 1
PartNumber : CNCK6DD0881110A55046A3329424EDFF563C

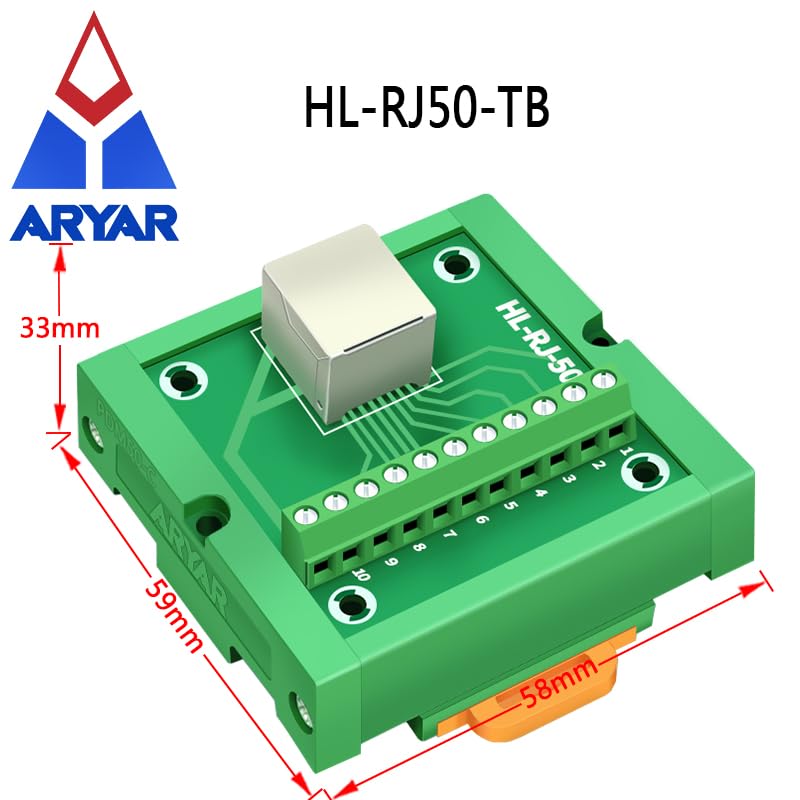

ProductDescription : RJ50 10P10C DIN Rail Mount Interface Module.
RJ50 10P10C Horiaontal shielded jack.
Pitch 3.5mm screw terminal block.
DIN rail mountable - for width 35 / 32 / 15mm rails.
DIN mount case can be taken apart for panel mount use.
PCB housing/carrier.
Solder connection holes 11 per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 58 x 59 x 33mm(W x L x H).
, never used.
Rated voltage: 100V.
Rated current: 1A / per pin.
Operating Temperature: -20 C to 50 C
Terminal block Specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
