Specification
Brand : Generic

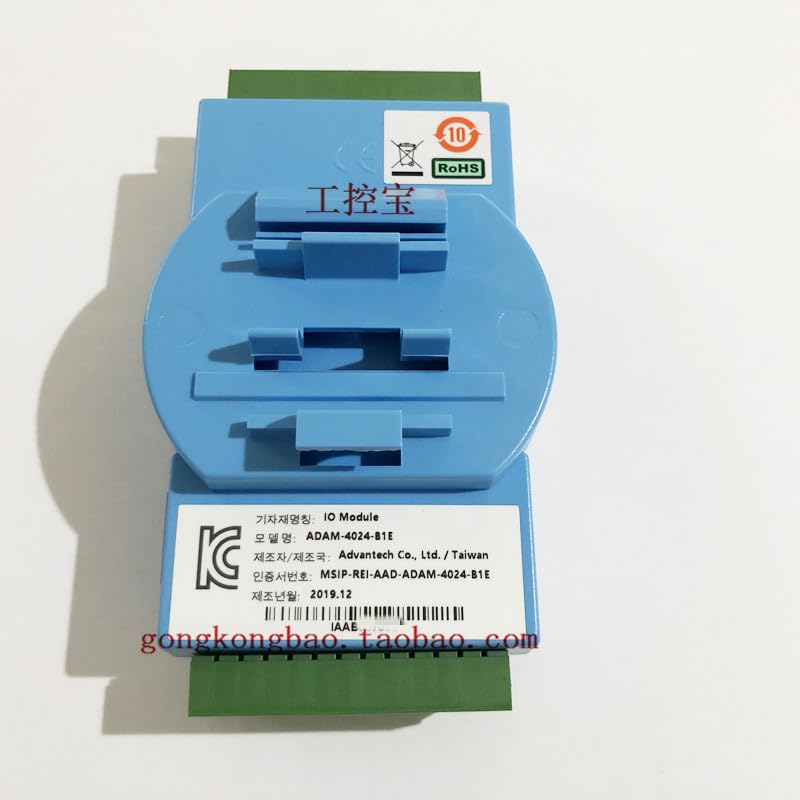

ItemName : Wiring Connecting Terminals - DAM-4024 4-Way Analog Output Module Adam-4024-B1E Original
ItemTypeKeyword : io-modules
Manufacturer : CHIKIMIKI
NumberOfItems : 1
PartNumber : CNCK6E40C81AE62CC20044054D0C17435CD9
ProductDescription :
ADAM-4024New original genuine two
ADAM-4024
4Analog output module
Main Features
12Bit resolution
single channelmA orVoutput
4Channel digital input
3000 Vdc D/A
Programmable output slope 0.125 - 128.0 mA/second 0.0625 - 64 V/second
ADAM-4024Provided4Analog output channel of general type It also comes with4Channel digital input For some integrated applications Such as emergency lock output or user default trigger, etc The module has an optical isolator Prevent grounding circuit Damage to equipment caused by power shock You can specify the conversion rate and starting current
ADAM-4024-B1E
Display
LED Indicators
Power
Power Supply
Power Requirement
10~30 VDC
Analog Output
Channels
4
Voltage Range
10 V
Current Output
0~20 mA (Differential), 4~20mA (Differential)
General
Watchdog Timer
System (1.6 second) & Communication
Connector
2 x plug-in terminal block (#14~28 AWG)
Temperature (Operating)
-10~70 C (14~158 F)
Humidity
5~95 %RH
Temperature (Storage)
-25~85 C (-13~185 F)
Interface
RS-485
Isolation Protection
3000 VDC
Communication Protocol
ASCII command & Modbus/RTU
Communication Speed
Serial: From 1,200 to 115.2 k
Comm. Distance
Serial: 1.2 km
Data Flow Control
Yes
Digital Input
Channles
4
Input Voltage
Logic level 0: 1 VDC max. Logic level 1: 10~30 VDC
Product description
ADAM-4024-B1E
4-ch Analog Output Module with Modbus
Optional Accessories Data line terminal board, etc Order separately
Product description
ADAM-4520-D2E
RS-232 to RS-422/485 Converters
PCLS-ADAMVIEW32
HMI Software for Data Acquisition
PWR-242-AE
DIN-rail Power Supply
PWR-243-AE
