Specification
Brand : Generic
BulletPoint : Color: RJ45-RS485-RS232

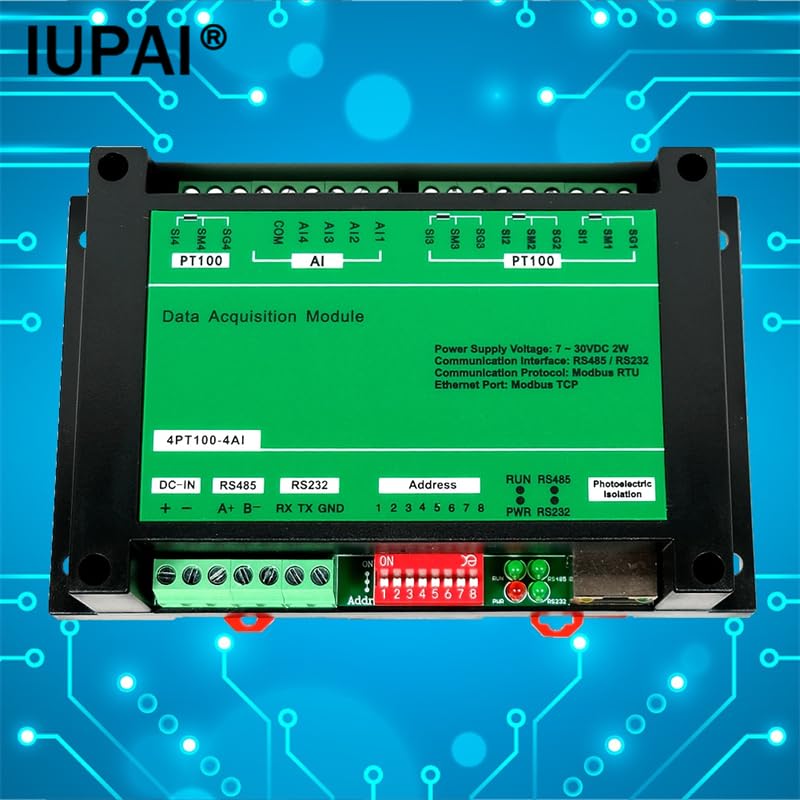

ItemName : Wiring Connecting Terminals - 4PT-4AI 4-Channel PT100 Temperature Thermal Resistance Acquisition Module 4AI Input Modbus Ethernet Industrial Controller - (Color: RJ45-RS485-RS232)
ItemTypeKeyword : io-modules
Manufacturer : CHIKIMIKI
NumberOfItems : 1
PartNumber : CNCKE1E8337A1F6DD10C78249572096AB1BF
ProductDescription : Module overview
Support multiple types of PLC.
Support configuration software such as Kingview, Force Control, MCGS.
Support RS232, RS485 interface, Modbus protocol touch screen, text screen.
Support all standard Modbus devices online communication.
=> If you buy a large quantity, support custom function modules.
CPU: imported chip, 32-bit ATMEL ARM high-speed processor, 72MHZ
Operating system: GCOS, 10ms scheduling mechanism
Power supply voltage: 7-35VDC @2W, power reverse polarity protection, isolation design
Communication interface: DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection
Dimensions: Volume (L x W x H): 145 x 90 x 40 (mm)
Installation method: screw fixing or rail installation
Environmental index: -40 85 , 5% 95%RH non-condensing, IP20 protection
Hardware watchdog: 1.5 seconds hardware watchdog protection system
Channel isolation: 2500VDC isolation, anti-interference protection design. Since 1997, the product has been used stably in industrial sites
Communication interface: RJ45 interface
Communication protocol: standard MODBUS TCP protocol
Communication rate: communicate with the host computer, more than 1000 times/second
Communication bandwidth: 10M/100Mbps, true high-speed Ethernet
IP address: 192.168.1.75
Port number: 502
Support network cable, crossover network cable and direct connection network cable, the module can be self-adaptive
Number of channels: 1 RS485, 1 RS232
Baud rate: 1200 115200, default 9600
Parity check: odd check, even check, no check
Start bit: 1 bit
Data bits: 8 bits
Stop bits: 1, 2 bits
Communication protocol: MODBUS RTU
Default parameter: 9600.N.8.1, station number: 1
POWER light: Displays the power status
RUN light: module running indication, flashes once per second
COM0 TX0 RX0 light: Display the communication status of the RS485 communic
