Specification
Brand : Generic
BulletPoint : Color: FX5-4AD-ADP

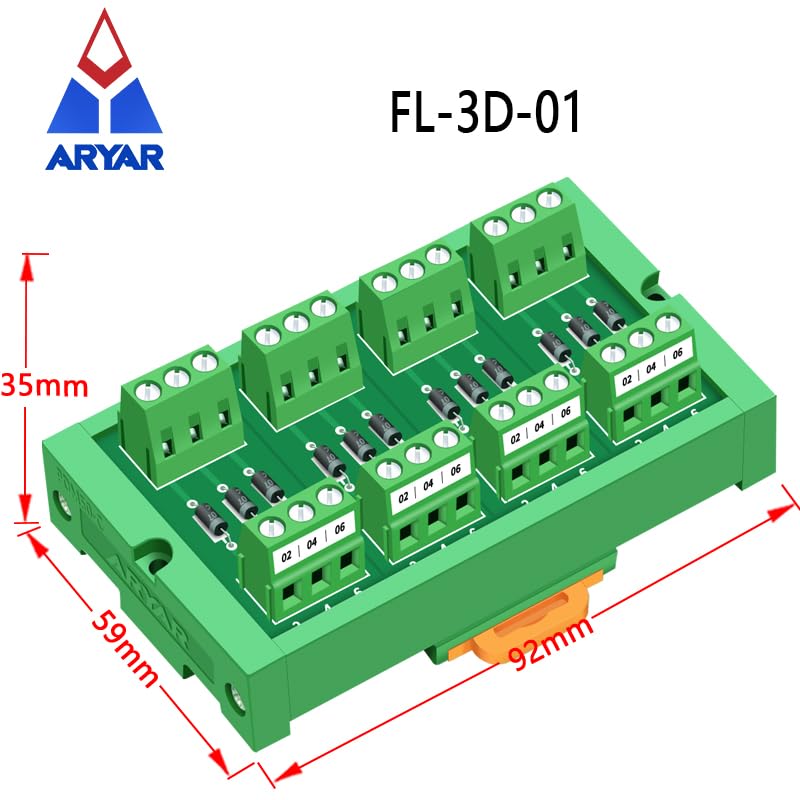

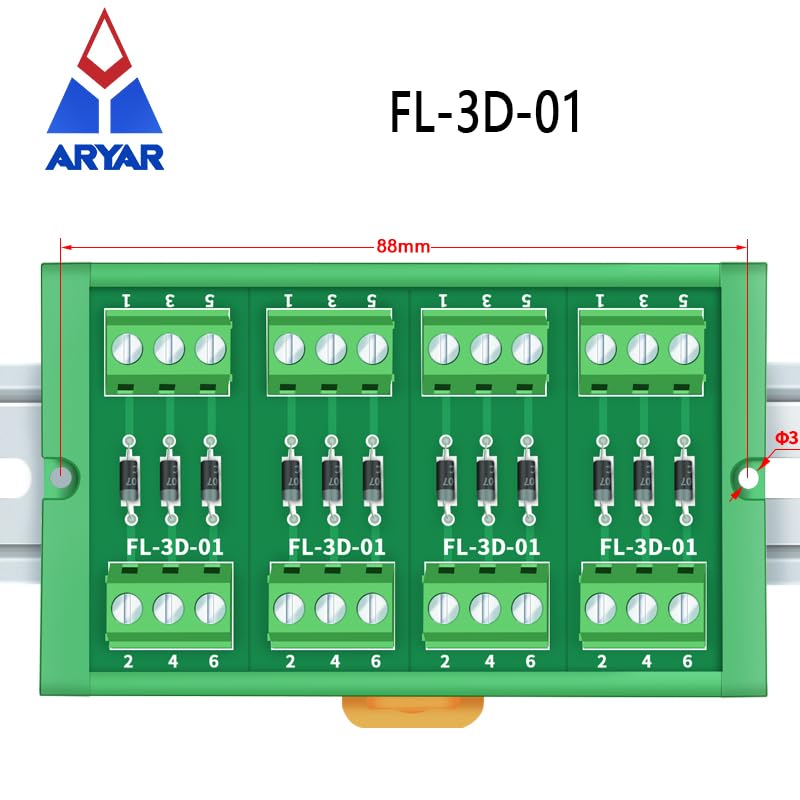

ItemName : Wiring Connecting Terminals - 12 Channel diode Module DIN Rail Mount 1 Amp 1000V Common Anode 12 Diode Network Module, 1N4007 didoe Module.
ItemTypeKeyword : io-modules
Manufacturer : CHIKIMIKI
NumberOfItems : 1
PartNumber : CNCK035292D099524B69D8F019FC2902CA38
ProductDescription : DIN Rail Mount 1 Amp 1000V Common Anode12 Diode Network Module.
1N4007 diodes.
Terminal pitch 5mm screw terminal block.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 65 x84 x 40mm (L x W x H).
PCB dimensions: 50 x80mm (L x W).
PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails.
DIN mount case can be taken apart for panel mount use.
, never used.
Rated current: 1 Amp (per cathode terminal).
Anode rated current: 20 Amp.
Maximum blocking voltage: 1000V DC.
Operating Temperature: -20 C to 50 C
Terminal block Specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.
We specialize in design and manufacturing of Fuse module, relay module, breakout board, control board for CNC and industrial area, alsowe accept OEM/ODM designs.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE is provided by the carrier and excludes weekends and holidays. s may vary, particularly during the holiday season.
7. Due to stock status and time differences, choose to your item from our first available warehouse for .
to and to it from the date it was received. If this item is in your possession more than , it is considered used and NOT ISSUE YOU A
ProductSiteLaunchDate : 2024-11-09T02:28:22.725Z
UnspscCode : 39121400
