Product Information
Editorial Review

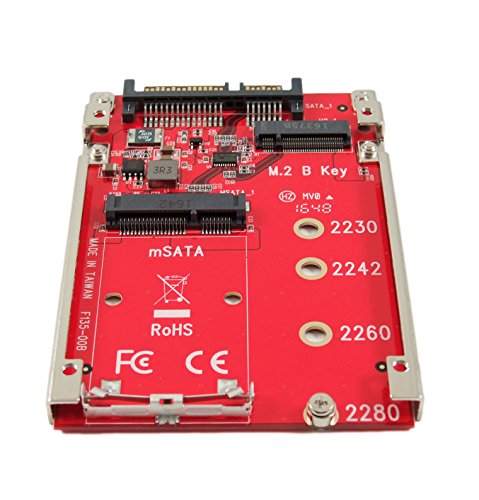

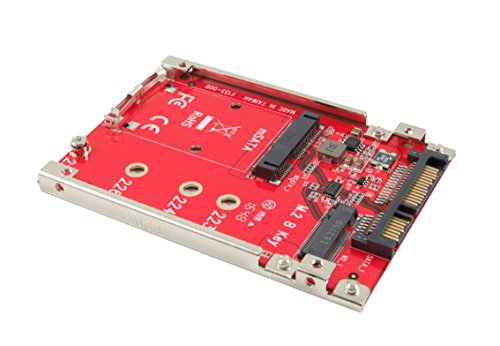

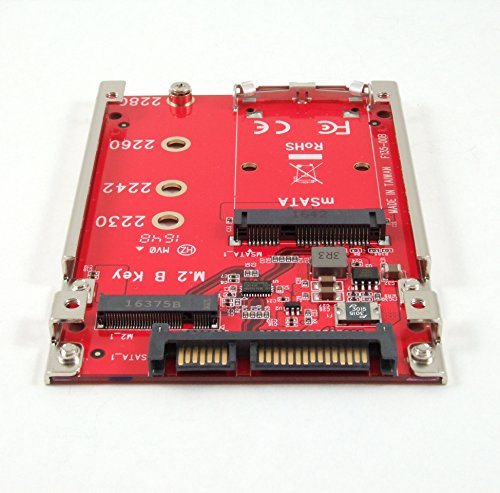

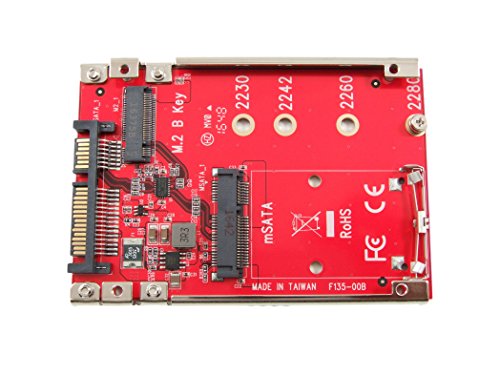

The Ableconn ISAT-M2MS let you convert a mSATA or a M.2 SATA SSD into a standard 2.5" SATA 6G (SATA III) capable drive. It provides excellient heat dissipation for mSAT or M.2 SATA SSD drive with the open aluminum frame design. Specification * Connector: - 1 x mSATA (52-pin, Mini SATA) Receptale - 1x B-key (type 2280-D5-B) M.2 socket for M.2 NGFF SATA SSD - 1 x SATA Data & Power (7+15 pins) Receptale * Data transfer rate: - Up to 6 GBps (SATA III) * Software: - OS independent; No driver installation required - Support Windows, Macs, and Linux * Convert mSATA or M.2 NGFF SATA based SSD to standard 2.5" SATA drive Form Factor * Supports Full Size mSATA SSD or 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD * Latch type mSATA connector on board, no need the screw for the retention of mSATA SSD * Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 SSD * Supports dual-sided M.2 SSD module 1.5mm component height on the top and bottom side * 100% Compatible with 2.5" SATA drive mechanical spec * 22 pin SATA (Signals and Power) male connector on board * mSATA or M.2 NGFF SATA SSD can be the primary bootable device containing the OS and application. * Includes 2.5 " drive metal frame with 8 mounting holes and 4 HDD screws * Dimension of PCBA with 2.5" frame : 100.45mm x 69.85mm x 7mm * SSD & PCBA power from SATA 5V input * Provides Max 3.3V/4A power to SSD Note: M.2 SSD will be active if both M.2 & mSATA SSD are installed. * Fully RoHS compliant * Made in Taiwan Package Contents * Ableconn ISAT-M2MS mSATA or M.2 SATA SSD to 2.5in SATA Drive Converter * Mounting screw set (1x SSD latch screw, 4x drive mount screws)
Features
1) Convert either a mSATA SSD or a M.2 NGFF SATA SSD into a 2.5" SATA drive. Note: M.2 SSD will be taken if both M.2 & mSATA SSD are installed.
2) Open frame aluminum housing dessign providing excellent heat dissipation for mSATA or M.2 SATA SSD
3) Compatible with most mSATA and M.2 SATA solid state drives such as the SAMSUNG 840, 850 EVO M.2
4) OS independent; No driver installation required. Native support in Windows, Mac and Linux.
5) Fully RoHS compliant. High quality product. Made in Taiwan.
Specification
Binding : Electronics
Brand : Ableconn
HardwarePlatform : mac
Label : Ableconn
Manufacturer : Ableconn
Model : ISAT-M2MS
PackageDimensions_Weight : 0.15 pounds
PackageDimensions : L:5.51 X W:4.09 X H:1.69
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_DRIVE_OR_STORAGE
Publisher : Ableconn
Studio : Ableconn
Title : Ableconn ISAT-M2MS mSATA or M.2 NGFF SATA SSD to 2.5-Inch SATA Adapter with Aluminum Frame Bracket - Convert mSATA or M.2 SATA SSD to a 2.5" 7mm SATA Drive
