Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Generic
BulletPoint1 : Power-over-Ethernet (PoE) 802.3af compliant
BulletPoint2 : Network-based audio output (paging, intercom, audio distribution)
BulletPoint3 : Audio input that can be routed anywhere over Bogen’s Nyquist network
BulletPoint4 : DSP-based noise rejection and voice bandwidth optimization
BulletPoint5 : In-wall, in-ceiling, shelf, or device mountable UL 2043 plenum-rated package
BulletPoint6 : Monitor external AC power status, AC on/off will send SMS to authorized phone number.
BulletPoint7 : The built-in MCU has a measurement range of 9-36 VDC, eliminating the need for additional sensors and saving costs.
BulletPoint8 : Set it once every once in a while (the user can set the time by himself) and automatically send its status to the authorized number.
BulletPoint9 : Support remote reading of historical data via SMS.
Color : One Color
CompatibleDevices : Digital Video Recorder
ConnectivityProtocol : Wired
ConnectivityTechnology : Wired
ControllerType : Standard
ControlType : App Control
ExternallyAssignedProductIdentifier : 7320543489111
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryInEquipment
Hazmat11 : DE_SmallLithiumIonBatteryInEquipment
Hazmat12 : EG_SmallLithiumIonBatteryInEquipment
Hazmat13 : ES_SmallLithiumIonBatteryInEquipment
Hazmat14 : FR_SmallLithiumIonBatteryInEquipment
Hazmat15 : GB_SmallLithiumIonBatteryInEquipment
Hazmat16 : IE_SmallLithiumIonBatteryInEquipment
Hazmat17 : IN_SmallLithiumIonBatteryInEquipment
Hazmat18 : IT_SmallLithiumIonBatteryInEquipment
Hazmat19 : JP_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : MX_SmallLithiumIonBatteryInEquipment
Hazmat21 : NL_SmallLithiumIonBatteryInEquipment
Hazmat22 : PL_SmallLithiumIonBatteryInEquipment
Hazmat23 : SA_SmallLithiumIonBatteryInEquipment
Hazmat24 : SE_SmallLithiumIonBatteryInEquipment
Hazmat25 : SG_SmallLithiumIonBatteryInEquipment
Hazmat26 : TR_SmallLithiumIonBatteryInEquipment
Hazmat27 : US_SmallLithiumIonBatteryInEquipment
Hazmat28 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryInEquipment
Hazmat6 : AU_SmallLithiumIonBatteryInEquipment
Hazmat7 : BE_SmallLithiumIonBatteryInEquipment
Hazmat8 : BR_SmallLithiumIonBatteryInEquipment
Hazmat9 : CA_SmallLithiumIonBatteryInEquipment
IncludedComponents : No
IndoorOutdoorUsage : indoor

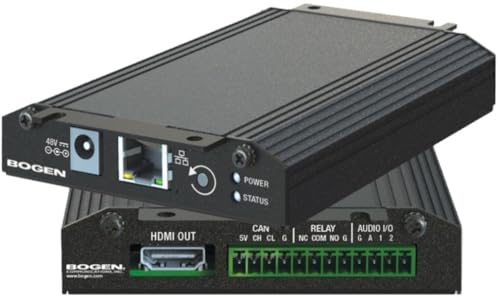

ItemName : NQ-GA10PV Nyquist Plenum-Rated VoIP Intercom Module, Low-impedance (8-ohm) Speaker Output, HDMI Video Output, Talkback Support, Control Relay Output, Web-Based Configuration
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : commercial-access-door-intercoms
Manufacturer : Generic
MaximumRange : 100 feet
ModelName : Aumotop8go0f6cp5m
ModelNumber : NQ-GA10PV
MountingType : Wall Mount
NightVisionRange : 100 inches
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 2
NumberOfLithiumMetalCells : 2
OutputType : Network
PartNumber : NQ-GA10PV
PowerSourceType : Corded Electric
ProductDescription : Bogen NQ-GA10PV Nyquist Plenum-Rated VoIP Intercom Module, Low-impedance (8-ohm) Speaker Output, HDMI Video Output, Talkback Support, Control Relay Output, Web-based Configuration

KEY FEATURES
- Power-over-Ethernet (PoE) 802.3af compliant
- Low-impedance (8-ohm) speaker output
- Network-based audio output (paging, intercom, audio distribution)
- HDMI video output (NQ-GA10PV model only)
- Talkback support
- Push-to-Talk Microphone support (Bogen DDU250 or equivalent)
- Audio input that can be routed anywhere over Bogen’s Nyquist network
- DSP-based noise rejection and voice bandwidth optimization
- Web-based configuration
- Analog Call Switch support (Bogen CA15C, or equivalent)
- Digital Call Switch support (Bogen NQ-E7020)
- Control Relay Output
- In-wall, in-ceiling, shelf, or device mountable UL 2043 plenum-rated package
- Integrated slotted mounting flanges

SPECIFICATIONS
- Power Output: 10W @ 8 ohms
- S/N Ratio (20k BW): 80 db
- Power Output Bandwidth: 20Hz - 20kHz <.1% THD+N
- THD+N @ 1 kHz Rated Power: < .05% THD+N
- Rated Load Impedance: 8 ohms
- Frequency Response @ 1 Watt: 20Hz-20kHz +/-0.25 dB
- Audio Amplifier Class of Operation: D
- External DC Power: 48-56VDC .3A (5.5mm x 2.1mm Barrel Jack)
- DC Input Range: 15W 48V to 56V
- Input/Output Connector: 12-pin Phoenix Plug/Header
- Call Switch Input: Dry Contact Closure on Phoenix Plug Terminals G & A
- Analog Speaker Connection: Phoenix Plug Terminals 1 & 2
- Audio Talkback: Half-Duplex using the analog speaker for talkback: Phoenix Plug Terminals 1 & 2
- Ambient MIC Input: Ambient Noise Sensor Microphone (ANS500M); Phoenix Plug Terminals 1 & 2
- Relay Contacts: SPDT Rated 2A: NC (Normally Closed): Common: NO (Normally Open): G (Ground)
- Operating Temperature Range: -15°C to +40°C
- Dimensions: 3.75"W x 7/8"H x 6.2"D
- Weight 0.7 lbs.


ProductSiteLaunchDate : 2025-03-15T13:23:36.330Z
RecommendedUsesForProduct : Surveillance
Size : One Size
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43190000
VideoCaptureFormat : MPEG-4
VideoCaptureResolution : 2MP
WarrantyDescription : 1 YEAR
WeatherResistanceDescription : Weatherproof
