Specification
Brand : WYDDDARY
BulletPoint1 : 【Withstand Hi-Pot Tester】RK7112 tester equipped with a 5KV testing capacity, this high-potential tester ensures reliable performance for various electrical safety checks.
BulletPoint2 : 【Digital Display & Precision】Features a clear digital display for accurate readings and supports up to 5 customizable test settings for insulating resistance tests.
BulletPoint3 : 【Reliable & Safety】Built to operate in temperatures between 0~40℃, with a recommended load resistance of 500kΩ to 800kΩ, ensuring safe and stable testing conditions.
BulletPoint4 : 【Comprehensive Kit】Comes complete with necessary accessories, 1×Withstand Voltage Test Equipment; 1×High Voltage Test Line; 1×Ground Line; 1×Power Cord.
BulletPoint5 : 【Versatile Applications】Suitable for a wide range of industries, including electric tools, transformers, wiring systems, and electronic devices, making it an essential tool for professionals.
ExternallyAssignedProductIdentifier1 : 0840403779222
ExternallyAssignedProductIdentifier2 : 840403779222
IncludedComponents : Withstand Hi-Pot Tester*1

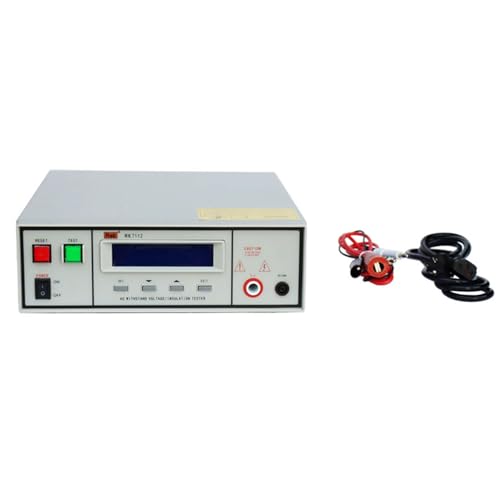

ItemName : WYDDDARY Withstand Hi-Pot Tester RK7112 110V 5KV AC Voltage Withstand Test Instruments Hi-Pot Insulation Resistance Testing Tool LED Digital Display Hipot Tester
ItemPackageDimensions_Height : 7.28 inches
ItemPackageDimensions_Length : 16.93 inches
ItemPackageDimensions_Width : 14.17 inches
ItemPackageQuantity : 1
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : WYDDDARY
MeasurementAccuracy : 0.1mm
ModelName : Hyuduonivggyfqm0
ModelNumber : Hyuduonivggyfqm0
NumberOfItems : 1
PartNumber : CD142014
ProductDescription :

Paraments

Model: RK7112

Advantage: 5 sets of data can be set Insulating test

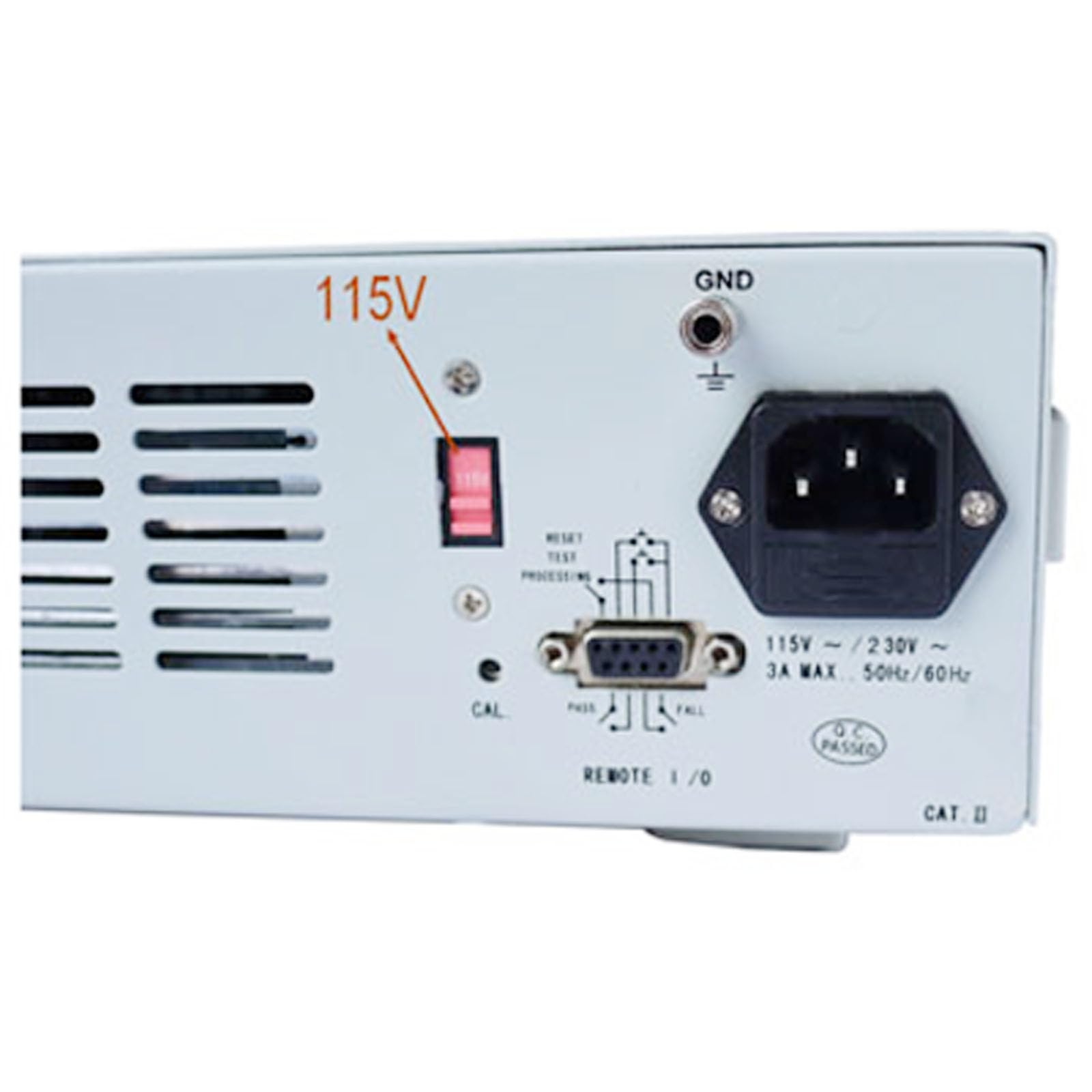

Input: single-phase 47-63HZ,115V/230V AC±15%

Output frequency: Range: 50Hz/60Hz Optional

Slow rise: Range: 0.1--999.9s, 0.1s/Step

Output ripple: Sine wave THD<2%(Crest Factor)>1.3<1.5

Test time: Range: 0.2--999.9s, 0.1s/Step 0=continuity

Input Voltage (Power): 110V

ARC Detector: Range: Level 1-9 can be set

Calibration

The instrument has been carefully calibrated before they go out, completely conform to the requirements of the index of the instrument. The instrument for at least a yearly calibration, calibration precision of the instrument must be better than 0.5%, to ensure that the instrument can continue after calibration is precision of the instrument should be.

Calibration of instrument and equipment

Voltmeter: Measuring range above the 0-6000 V AC

Ammeter: Measuring range from 0-15 mA AC above

Load resistance: 500 kΩ - 800 kΩ, more than 0.5 WATT

ProductSiteLaunchDate : 2024-06-07T05:14:47.251Z
