Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : WYDDDARY
BulletPoint1 : 【10KV AC/DC Testing】Effortlessly perform high-voltage withstand tests with this RK2671AM tester, capable of handling 10KV AC/DC voltages. The environmental temperature is 0~40℃, the relative dumidity≤75%.
BulletPoint2 : 【Reliable Safety Features】: Incorporates a 3-hole power supply plug and solid GND connection for enhanced safety, backed by a stable voltage regulator for long-lasting performance.
BulletPoint3 : 【LED Display】Clear and easy-to-read high-brightness LED display shows test time, voltage, current and real-time display of breakdown current value and voltage value, ensuring an efficient and accurate testing process.
BulletPoint4 : 【Complete Testing Kit】1×Withstand Voltage Test Equipment; 1×High Voltage Test Bar; 1×Ground Line; 1×Power Cord; 1×Remote Control Test Bar
BulletPoint5 : 【Versatile Applications】Designed for versatile usage in various industries, including electrical testing, transformers, meters, motors, cables, and electronics –Complying with the national standard, it has become a necessary pressure resistance test tool for many manufacturers.
Color : Grey
ExternallyAssignedProductIdentifier : 4536036000135
ExternallyAssignedProductIdentifier1 : 0840403778508
ExternallyAssignedProductIdentifier2 : 840403778508
ExternallyAssignedProductIdentifier3 : 00685338150155
Hazmat1 : UN3480
IncludedComponents : Withstand Hi-Pot Tester*1

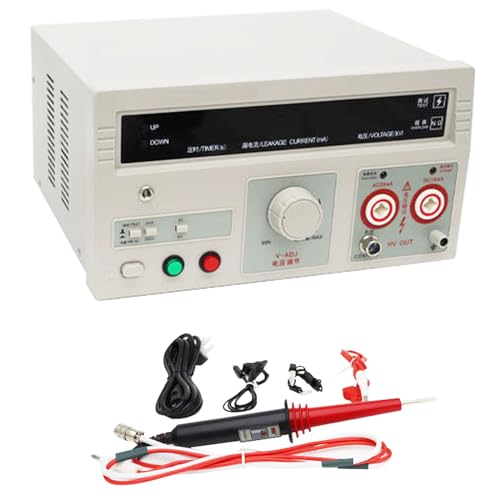

ItemName : WYDDDARY Withstand Hi-Pot Tester RK2671AM 110V 10KV AC/DC Voltage Withstand Test Instruments 100VA Hi-Pot Insulation Resistance Testing Tool LED Digital Display Hipot Tester
ItemPackageDimensions_Height : 13.19 inches
ItemPackageDimensions_Length : 19.69 inches
ItemPackageDimensions_Width : 16.54 inches
ItemPackageQuantity : 1
ItemTypeKeyword : insulation-resistance-meters
Manufacturer : WYDDDARY
MeasurementType : Multimeter
ModelName : Garosaopvuy204k5
ModelNumber : IR4018-20
NumberOfItems : 1
NumberOfLithiumIonCells : 3
PartNumber : CD142011
PowerSourceType : 4 X "Aa" Alkaline Battery
ProductDescription :

Paraments

Model: RK2671AM

Description: Klgital display with remote control

Test Voltage (AC): 0~10KV +/-5%

Test Voltage (DC): 0~10KV +/-5%

Leakage Current (AC): 0~2/20mA +/-5%

Leakage Current (DC): 0~2/10mA +/-5%

Timing (s): 0~99s; Manual control

Pmax: 100VA

Intput Voltage(Power): 110V

Weight: 40lbs

Pre-used Caution

Read the following items carefully before operating RK2671 series voltage withstand test instrument

1. Use three-hole power supply plug and insure GND connection well.

2. GND port and power supply GND port should be connected well.

3. Wear insulation glove, stand on insulation mat.

4. Anti-clockwisely circumvolve "V-ADJ" rotary switch to the maximum before turn on test instrument.

5. Before preset all functions, reset instrument.

6. Don't connect test port and test wire when doing test.

7. Don't connect HV output port with shield box or GND wire to avoid instrument damage.

8. Turn off power when accident take place.

9. Examine and repair when Indicator or annunciator is out of function.

10. Operate carefully to avoid hazard when take the remote test.

11. The instrument must be placed on the worktable of conductive materials.

12. The operator can not wear clothes with metal decoration or wear metal accessories.

13. When the tester is in the test conditions, the test line, the test probes, output end, and the test objects are all with high pressure, do not touch!

ProductSiteLaunchDate : 2024-06-07T05:14:42.537Z
SafetyDataSheetUrl : https://www.bornmieo.com/product/MSDS.pdf
SpecificationMet : Aemc
StreetDate : 2017-05-15T00:00:01Z
Style : Digital
SupplierDeclaredDgHzRegulation1 : transportation
SupplierDeclaredDgHzRegulation2 : storage
SupplierDeclaredDgHzRegulation3 : other
UnitCount : 1
